Forward Clutch: Notes

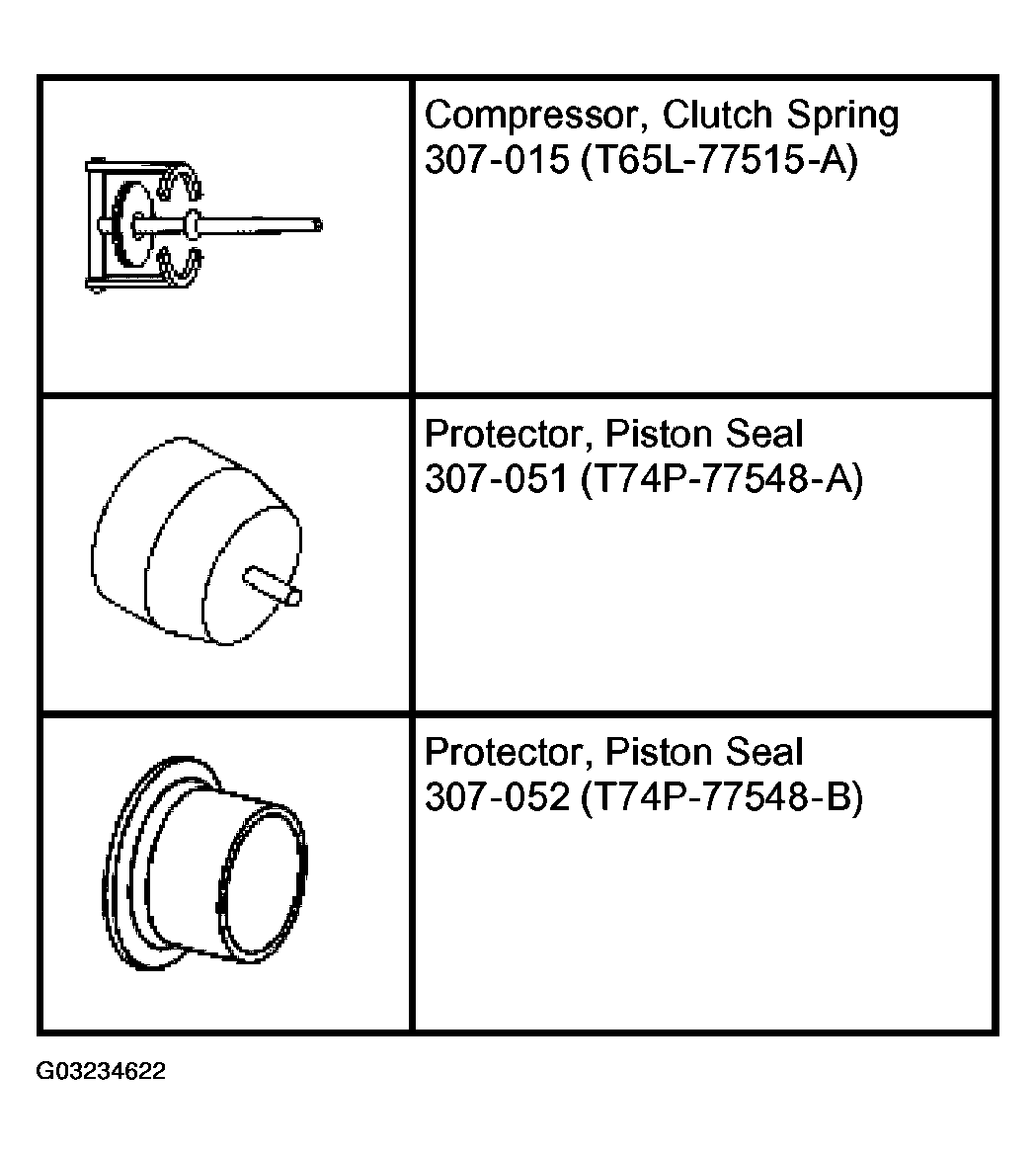

Fig 1: Identifying Special Tools

Courtesy of FORD MOTOR CO.

MATERIALS

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM	MERCON® V

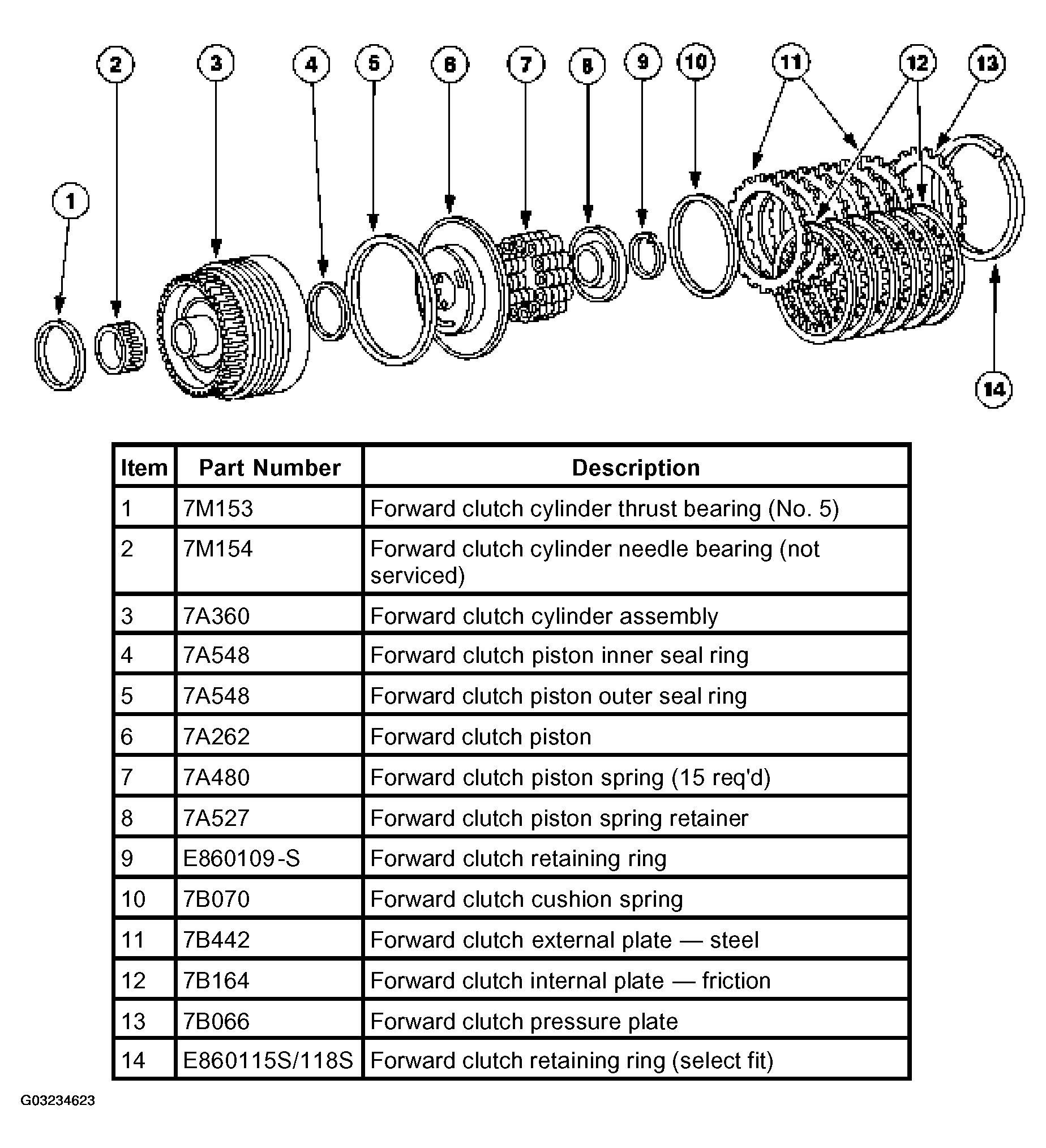

Fig 2: Exploded View Of Forward Clutch Assembly

Courtesy of FORD MOTOR CO.
