Cable Adjustment

Remove the speed control actuator cable clip.

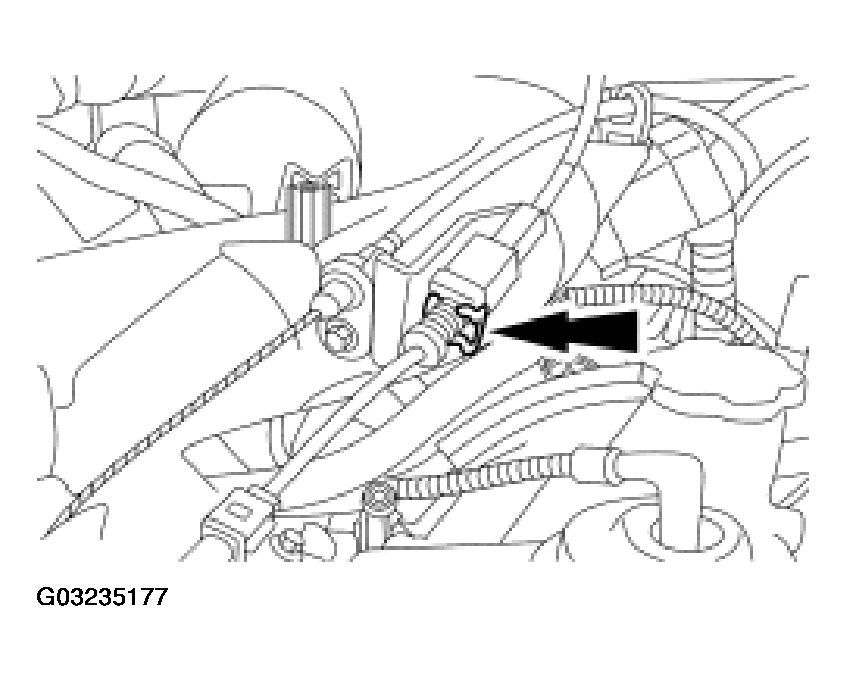

Fig 1: Removing Speed Control Actuator Cable Clip
Courtesy of FORD MOTOR CO.

NOTE: The speed control actuator cable must not be pulled tight for correct operation.

NOTE: The throttle body cam will automatically spring set to the closed position. The throttle body cam must be in the closed position.

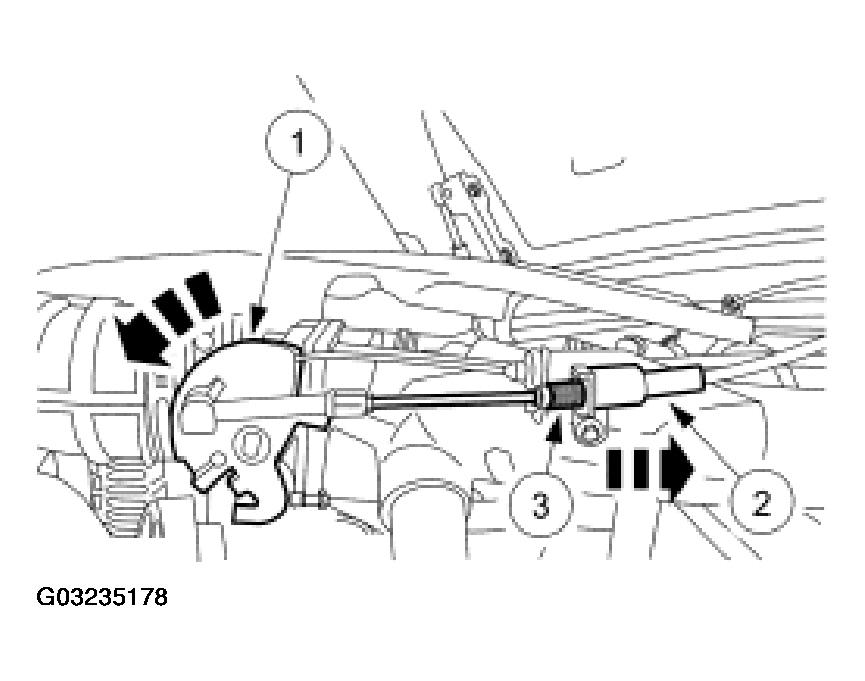

Fig 2: Pulling Speed Control Actuator Cable Housing

Courtesy of FORD MOTOR CO.

Adjust the speed control actuator cable.
1. Hold the throttle body cam is in the closed position.
2. Pull on the speed control actuator cable housing to remove any slack.
3. Back off the speed control actuator cable one notch and install the clip.
