Converter Housing and Fluid Pump: Notes

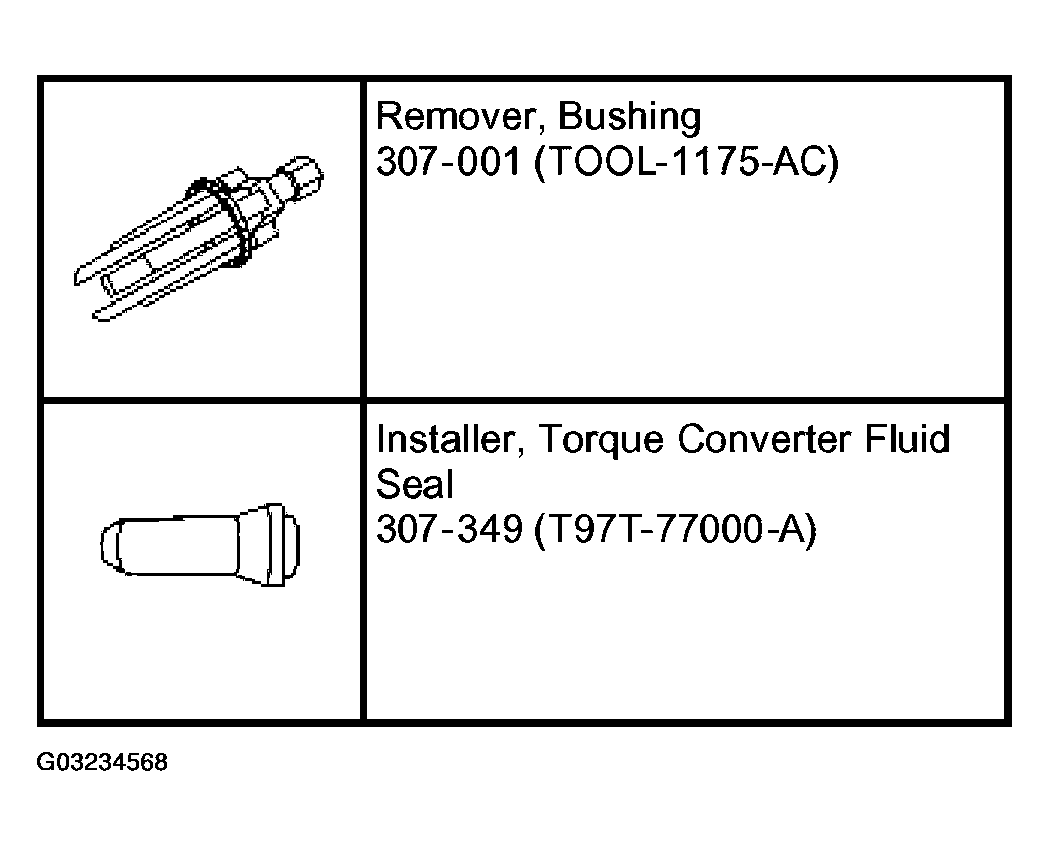

Fig 1: Identifying Special Tool
G03234568Courtesy of FORD MOTOR CO.

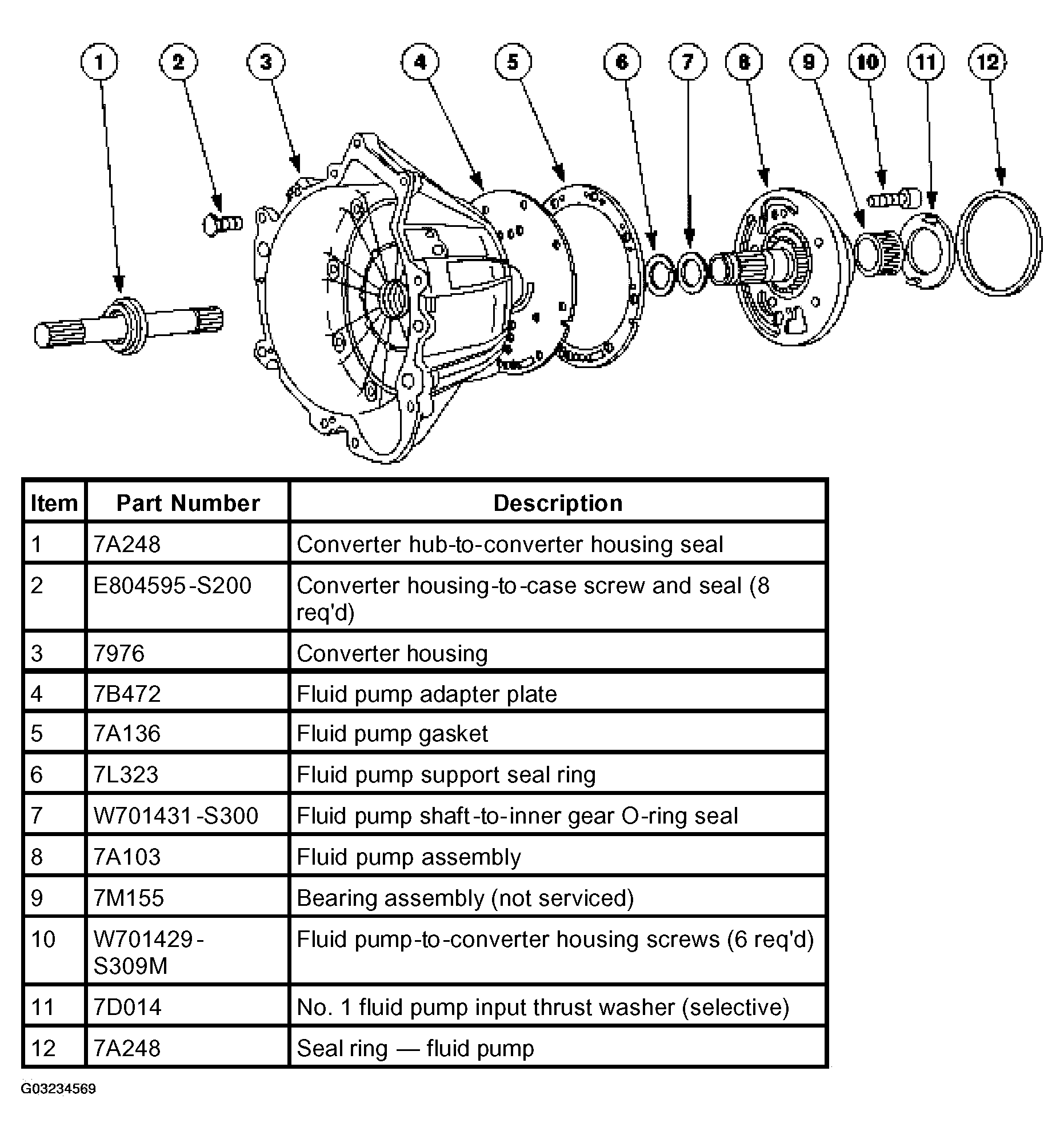

Fig 2: Exploded View Of Converter Housing And Fluid Pump
G03234569Courtesy of FORD MOTOR CO.
