Front Planetary and One-Way Clutch Assembly: Disassembly

Inspect the one-way clutch.
- Temporarily insert the front planetary gear carrier assembly into the center shaft and one-way clutch assembly for verification of the one-way clutch.
- The planetary gear must rotate counterclockwise and hold when rotated clockwise.
- Remove the planetary gear carrier assembly.

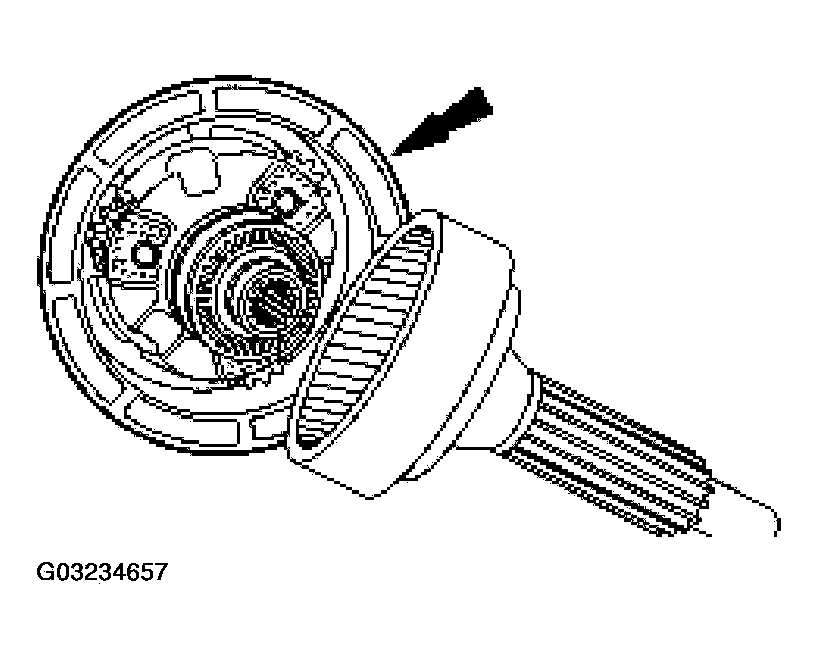

Fig 1: Removing Planetary Gear Carrier Assembly
Courtesy of FORD MOTOR CO.
Remove the overdrive center shaft from the front ring gear.
1. Remove the front center shaft retaining ring.
2. Remove the center shaft from the ring gear.
Fig 2: Removing Overdrive Center Shaft From Front Ring Gear
Courtesy of FORD MOTOR CO.

NOTE: If the inner race of the overdrive planetary gear is damaged, installation of a new front one-way clutch will be required. If the center shaft is damaged, installation of a new complete front one-way clutch will be required.

Fig 3: Inspecting Front One-Way Clutch And Center Shaft

Courtesy of FORD MOTOR CO.

Clean and inspect the front one-way clutch and center shaft.
- Inspect the roller cage for cracks.
- Inspect the roller clutch for wear.
- Inspect the press fit of the one-way clutch to the center shaft.
- Inspect the spring and roller cage for bent or damaged spring retainers.

CAUTION: Do not score the center shaft bore.

NOTE: This step only needs to be carried out if there is damage to the bearing.

Fig 4: Identifying Holes For Removing Front One-Way Clutch From Center Shaft

Courtesy of FORD MOTOR CO.

Insert a screwdriver through the holes, remove the front one-way clutch from the center shaft.

NOTE: This step only needs to be carried out if there is damage to the bearing.

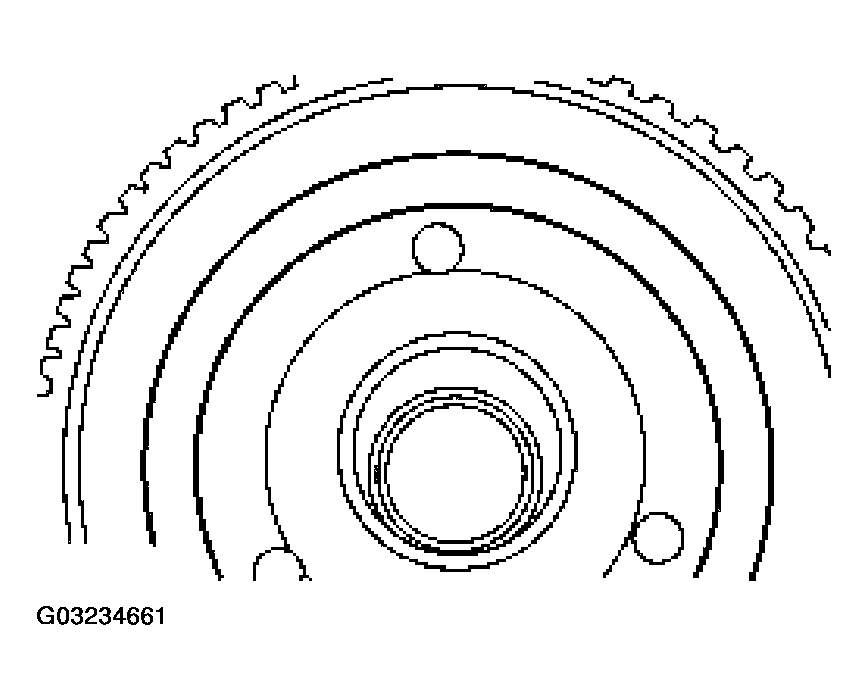

Fig 5: Identifying Center Shaft Bore

Courtesy of FORD MOTOR CO.

Inspect the center shaft bore for damage. If the outer race of the center shaft bore is damaged, a new front one-way clutch and center shaft must be installed.
