Reverse Brake Drum: Assembly

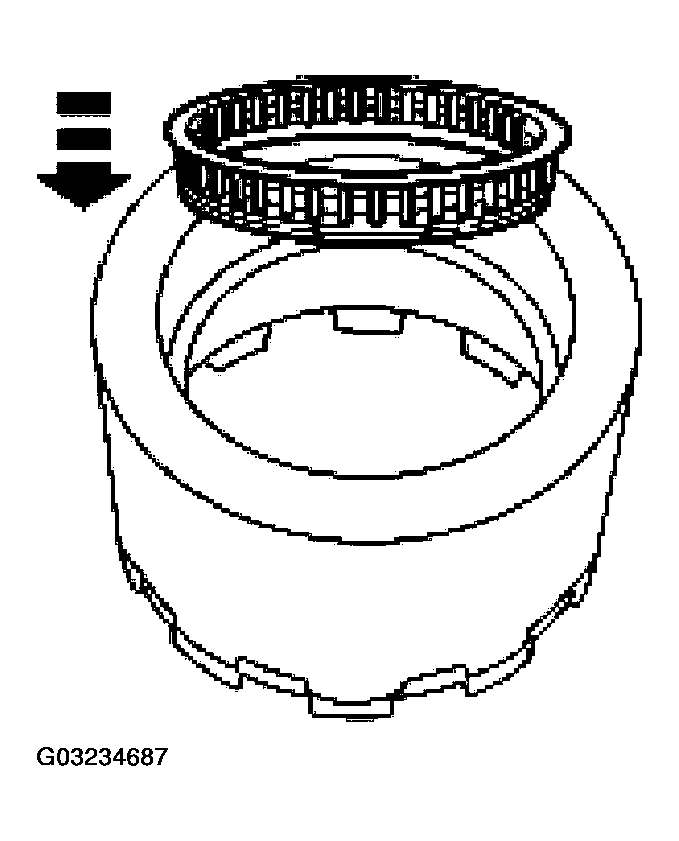

Install the roller bearing with the lip facing up toward the low reverse one-way clutch.

Fig 1: Installing Roller Bearing
Courtesy of FORD MOTOR CO.
Install the special tool.

Fig 2: Installing Special Tool
Courtesy of FORD MOTOR CO.
Install the low reverse one-way clutch with the tabs facing down toward the roller bearing.

Fig 3: Installing Low Reverse One-Way Clutch
Courtesy of FORD MOTOR CO.
Using the special tools, install the one-way clutch by pressing down on the tool to seat the bearing.

Fig 4: Installing One-Way Clutch Using Special Tools
Courtesy of FORD MOTOR CO.

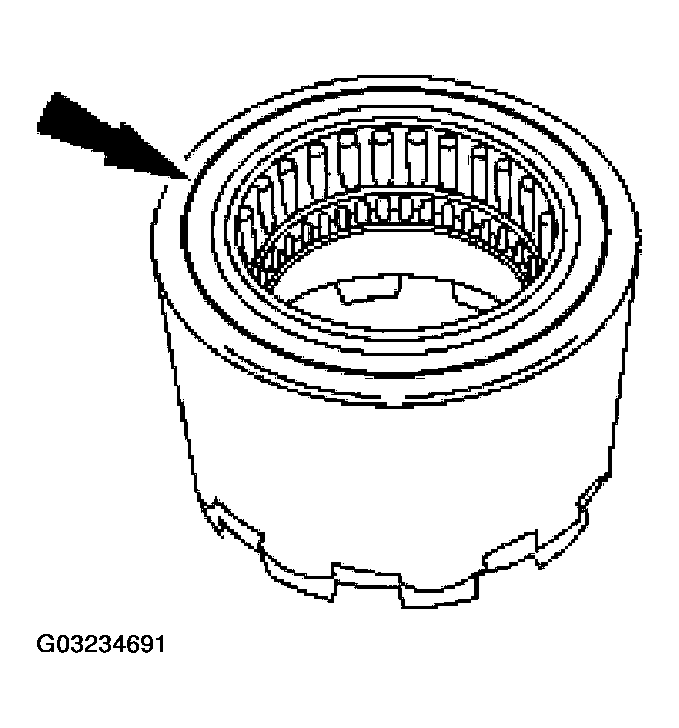

Inspect the reverse clutch drum to see if the low reverse one-way clutch is seated correctly.

Fig 5: Inspecting Reverse Clutch Drum
Courtesy of FORD MOTOR CO.
