Digital Transmission Range (TR) Sensor: Removal

With the vehicle in NEUTRAL, position it on a hoist. For additional information, REFER to JACKING & LIFTING .
Disconnect the shift cable from the manual control lever.

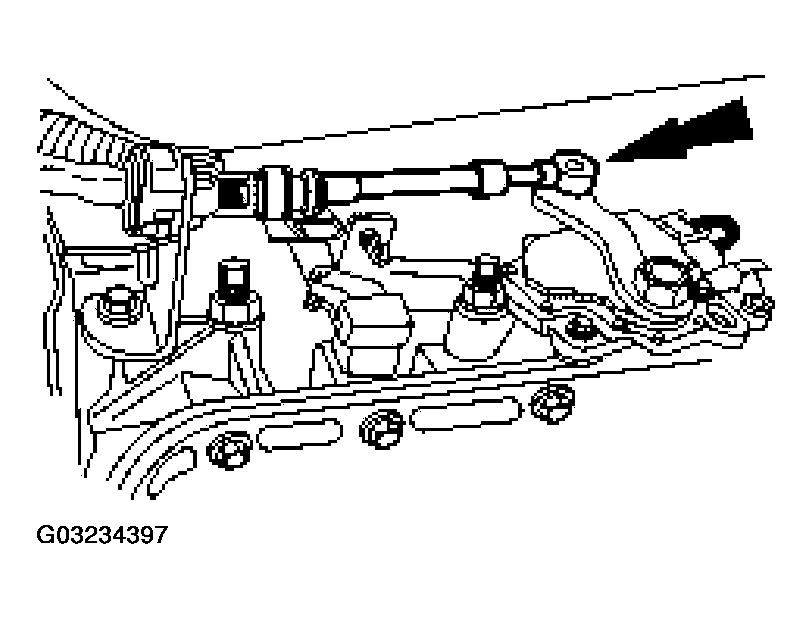

Fig 1: Disconnecting Shift Cable From Manual Control Lever
Courtesy of FORD MOTOR CO.
Disconnect the digital transmission range (TR) sensor electrical connector.

Fig 2: Disconnecting Digital Transmission Range Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the manual control outer lever nut and manual control outer lever.

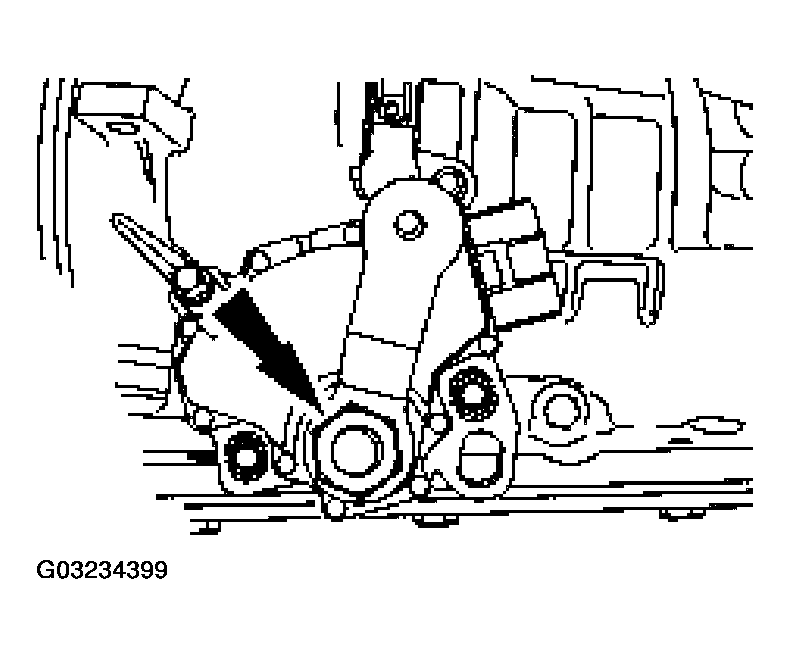

Fig 3: Removing Manual Control Outer Lever Nut And Manual Control Outer Lever
Courtesy of FORD MOTOR CO.
Remove the screws and the digital TR sensor.

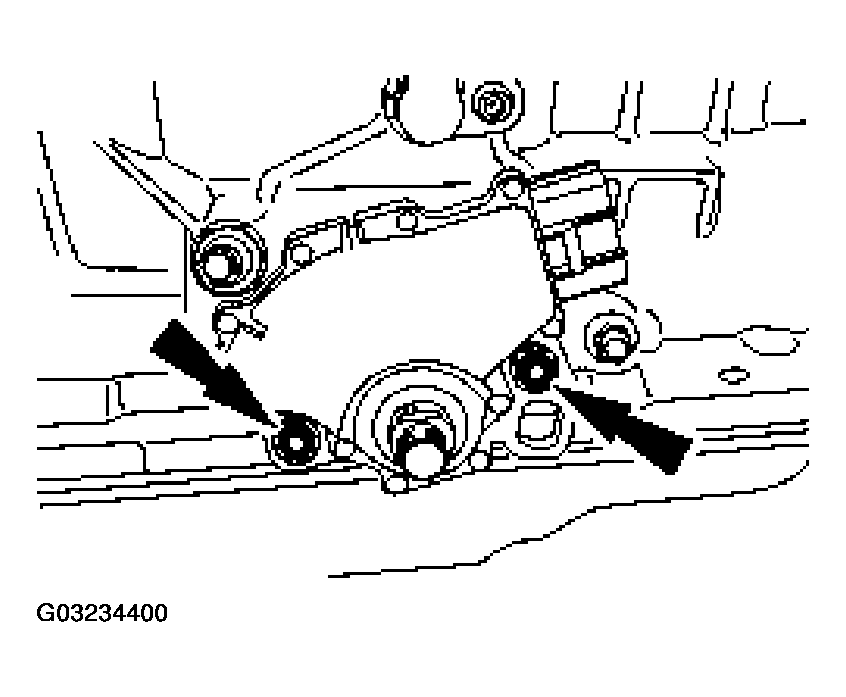

Fig 4: Removing Screws And Digital TR Sensor
Courtesy of FORD MOTOR CO.
