Identifying Connector (C175)

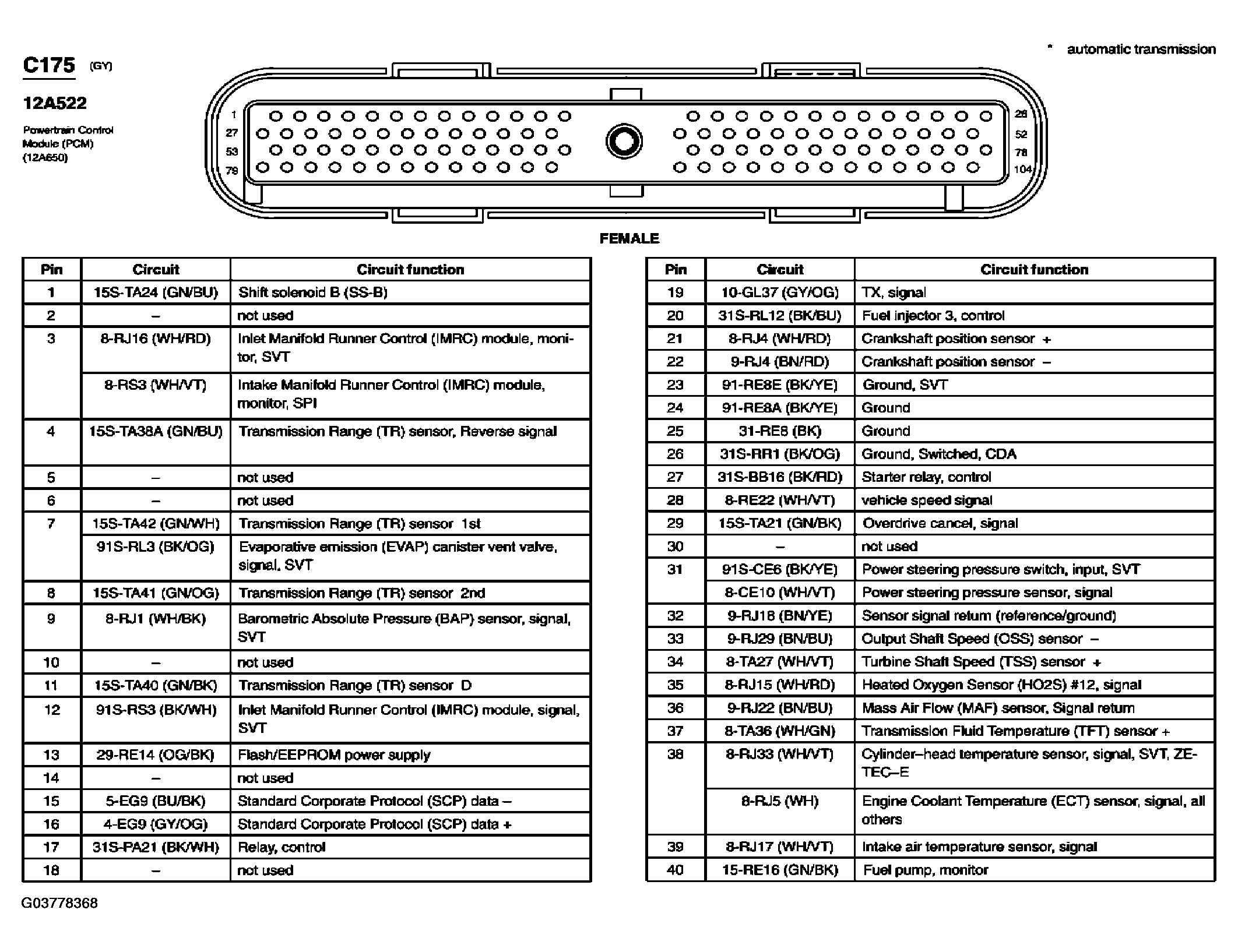

Fig 1: Powertrain Control Module (PCM) Connector End View (C175) (1 Of 2)
G03778368Courtesy of FORD MOTOR CO.

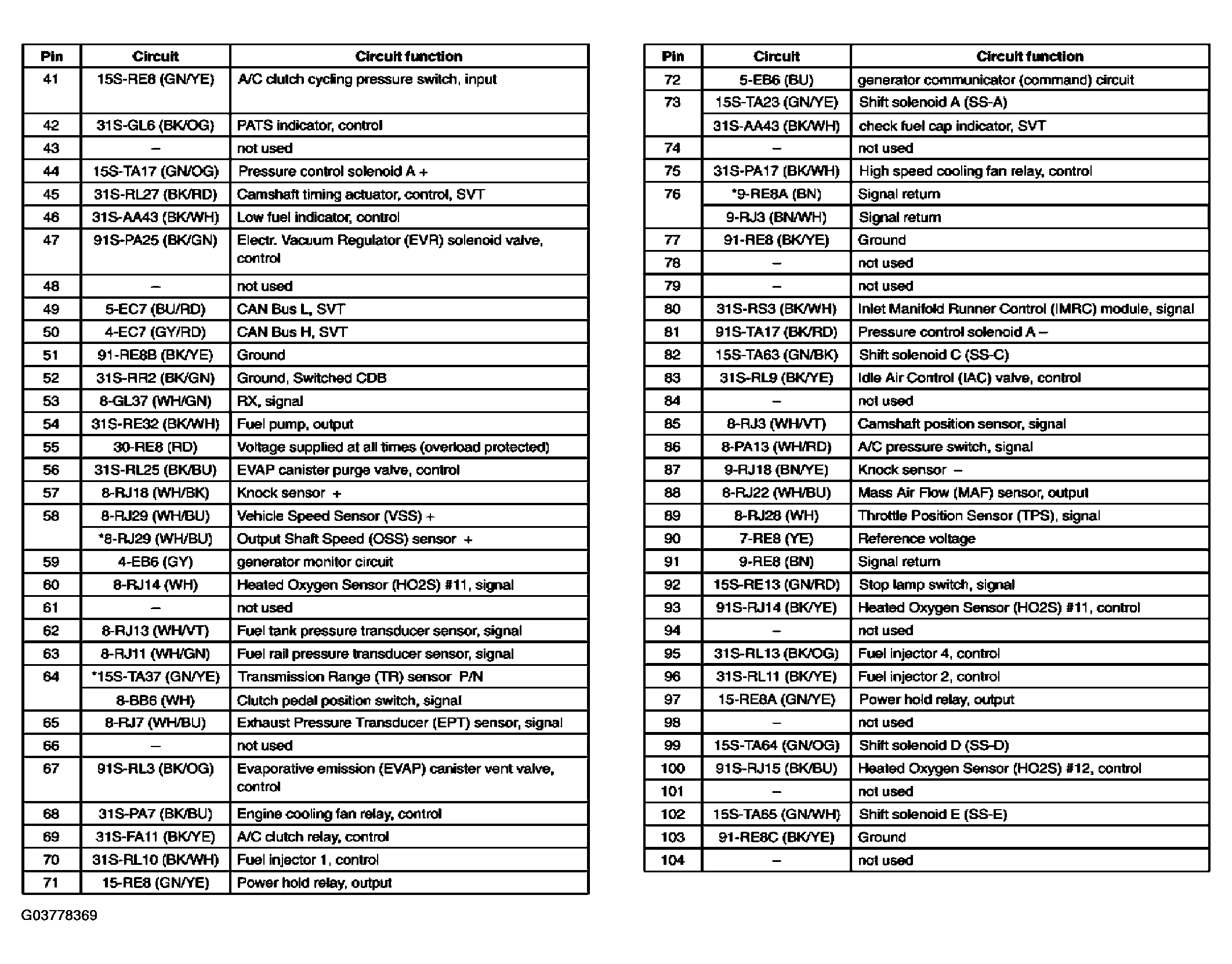

Fig 2: Powertrain Control Module (PCM) Connector End View (C175) (2 Of 2)
G03778369Courtesy of FORD MOTOR CO.
