Identifying Connector (C2041a)

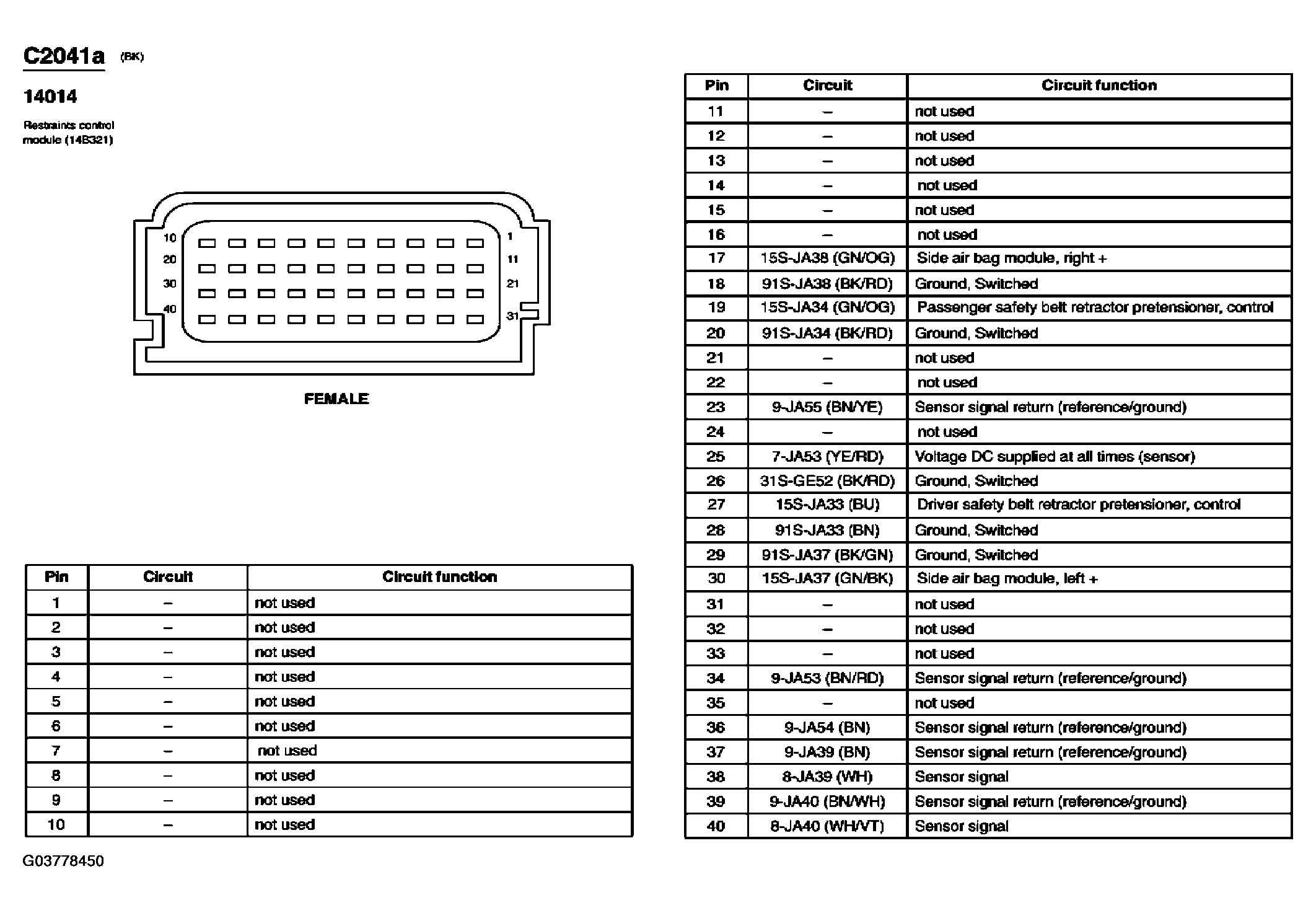

Fig 1: Restraints Control Module Connector End View (C2041a)
G03778450Courtesy of FORD MOTOR CO.
