Home › Ford › 2004 › Focus SVT, 2D Hatchback › Repair and Diagnosis › Electrical › Body Electrical › OEM Connector End Views › Connector Views › Identifying Connector (C210)

Identifying Connector (C210)

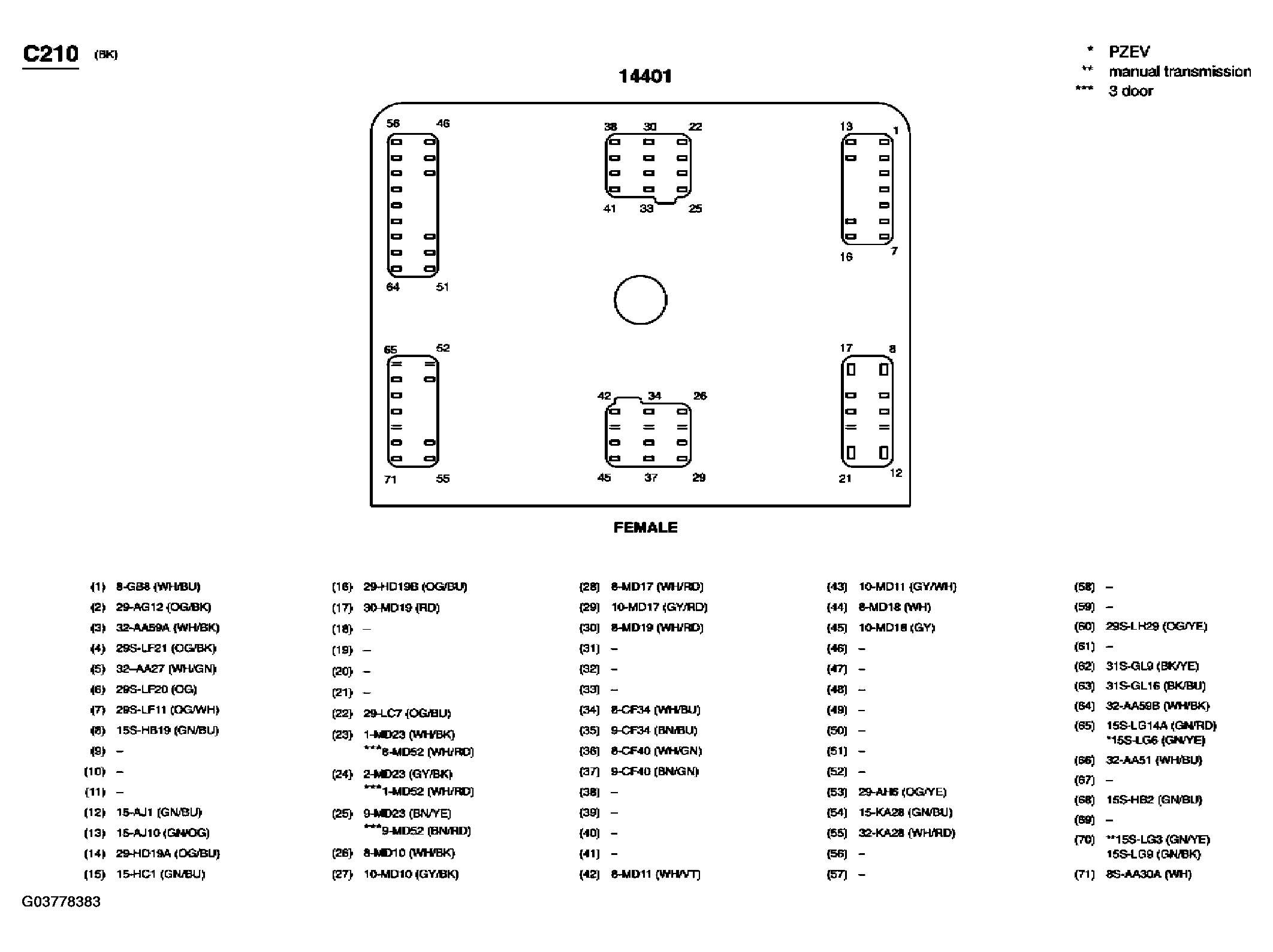

Fig 1: Inline Connector End View (C210)
G03778383Courtesy of FORD MOTOR CO.

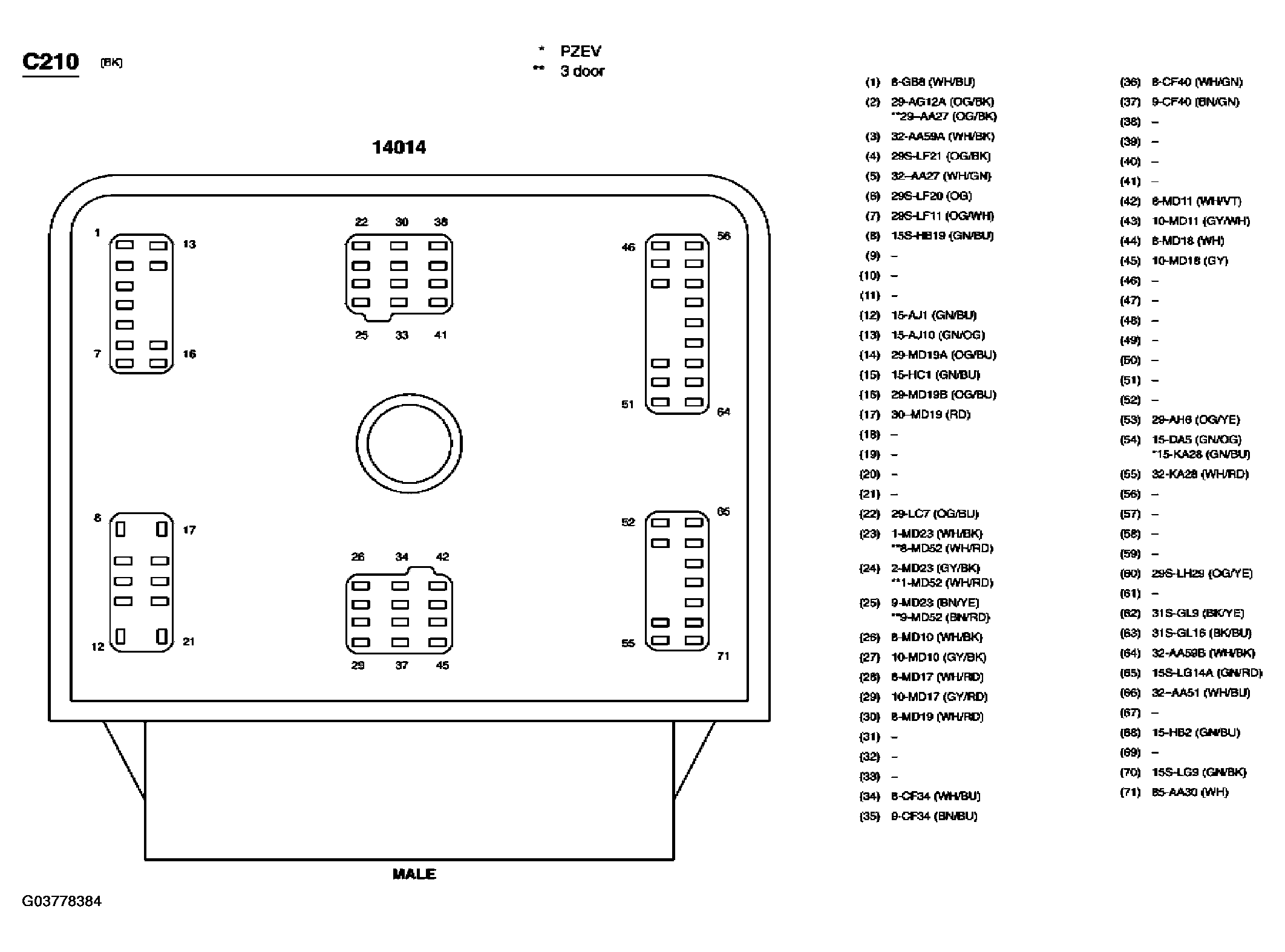

Fig 2: Inline Connector End View (C210)
G03778384Courtesy of FORD MOTOR CO.
