Oil Pump: Installation

WARNING: This page is about a different variant/trim than selected.

Install the oil pump.
- Position the oil pump.

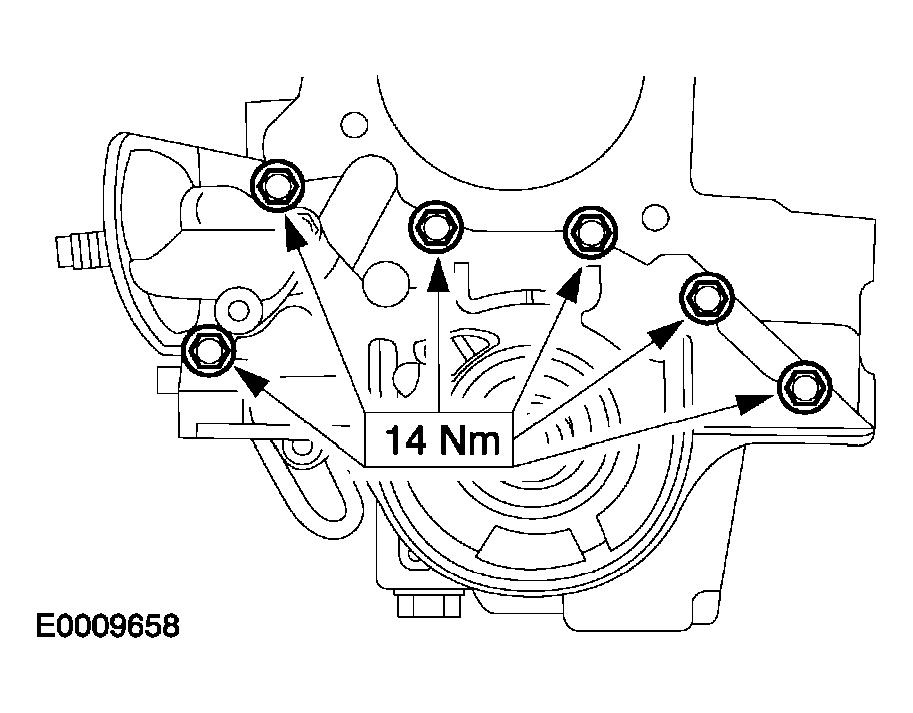

Fig 1: Installing Oil Pump
Courtesy of FORD MOTOR CO.
Using the special tool, install the oil pump seal.

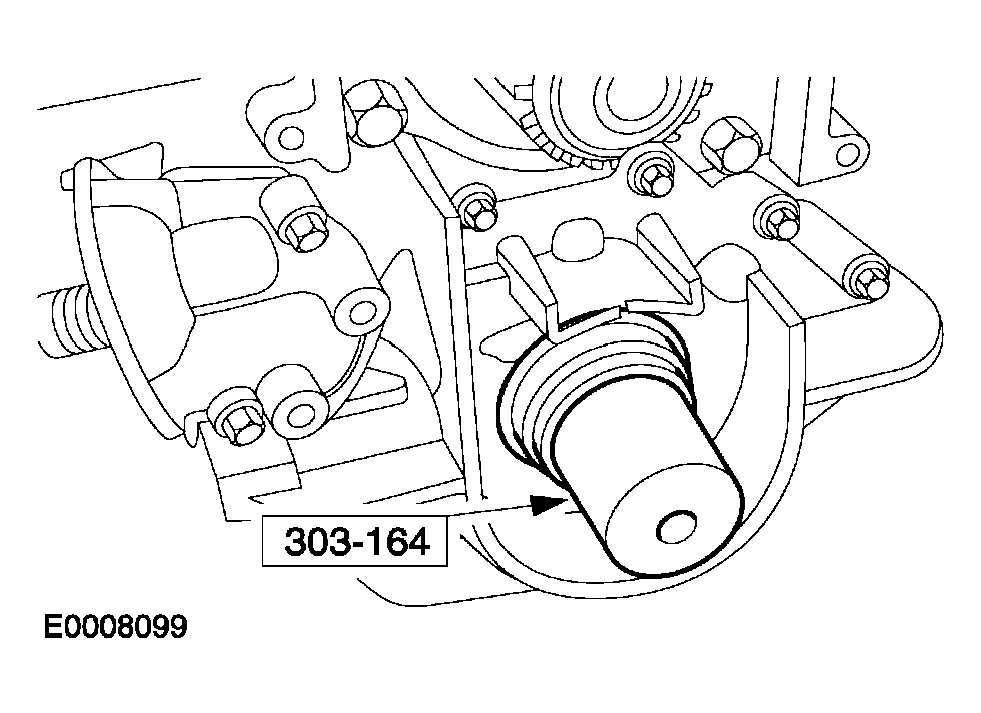

Fig 2: Installing Oil Pump Seal
Courtesy of FORD MOTOR CO.
Install the crankshaft position (CKP) sensor.

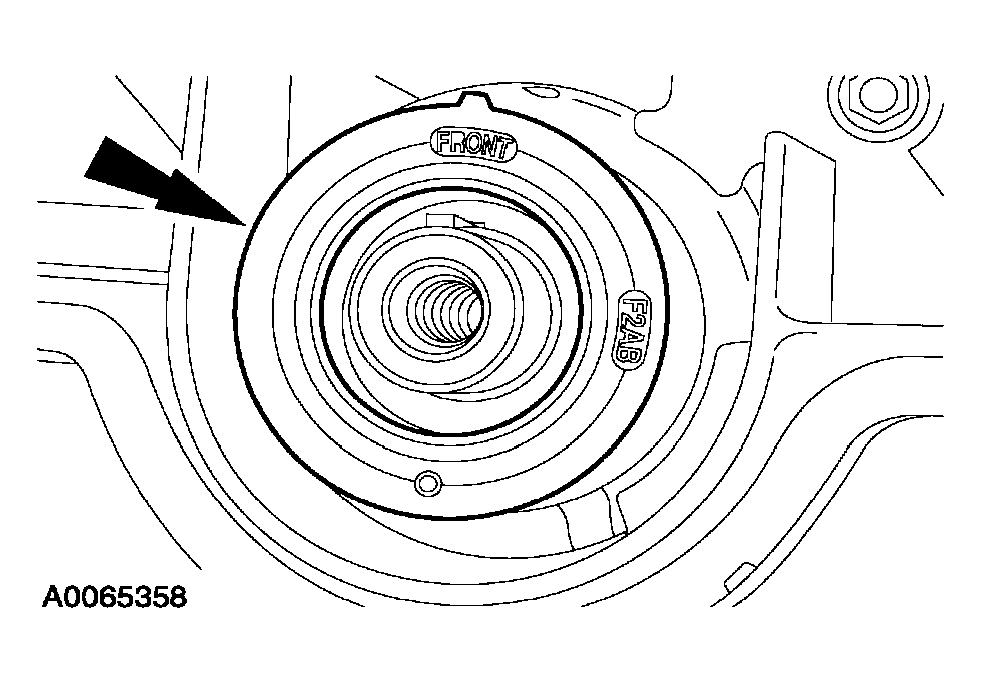

Fig 3: Installing Crankshaft Position Sensor
Courtesy of FORD MOTOR CO.

NOTE: Install a new gasket.

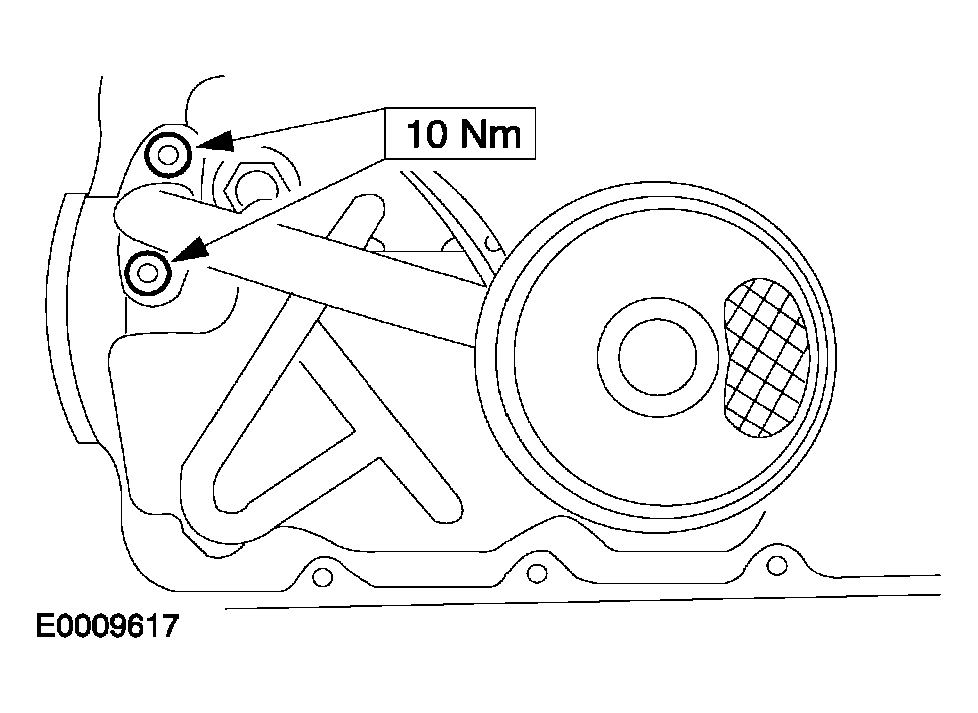

Fig 4: Installing Two Bolts

G04034550

Courtesy of FORD MOTOR CO.

Install the two bolts and the oil pump screen cover and tube.
Install the oil pan. For additional information, refer to OIL PAN .
Install the crankshaft timing belt pulley.

Fig 5: Installing Crankshaft Pulley
Courtesy of FORD MOTOR CO.
Position the jack.
Remove the special tools.

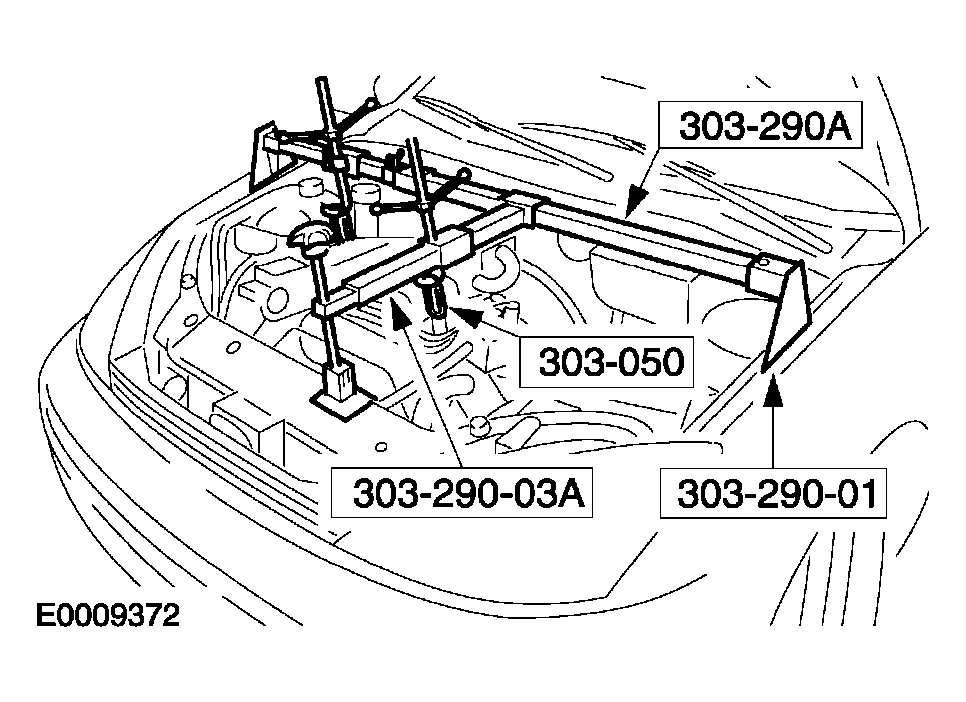

Fig 6: Removing Special Tools
Courtesy of FORD MOTOR CO.
Install the timing belt. For additional information, refer to TIMING BELT .
