Identifying Connector (C2220)

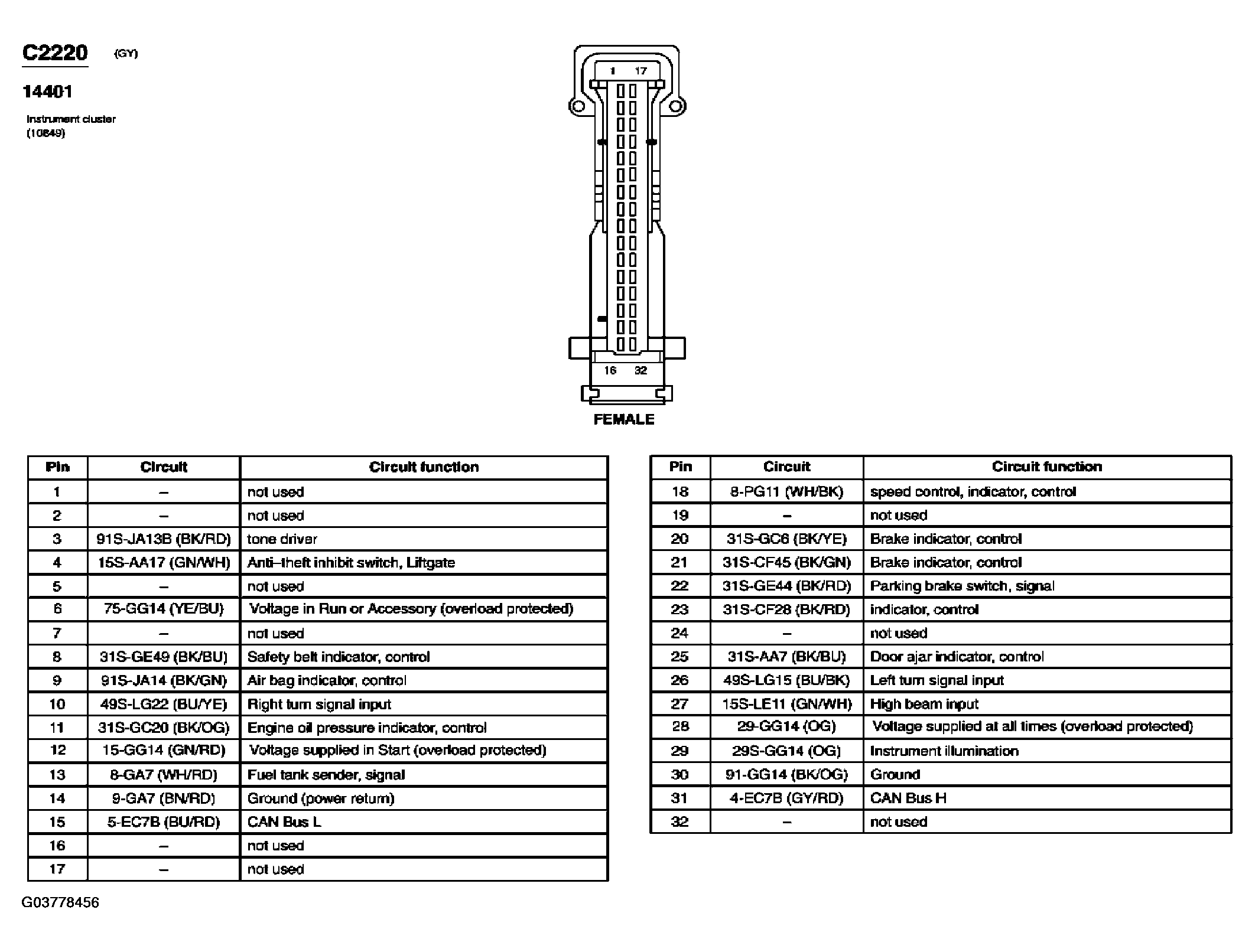

Fig 1: Instrument Cluster Connector End View (C2220)
G03778456Courtesy of FORD MOTOR CO.
