Rear Seat Backrest: Assembly

  1. To assemble, reverse the disassembly procedure.

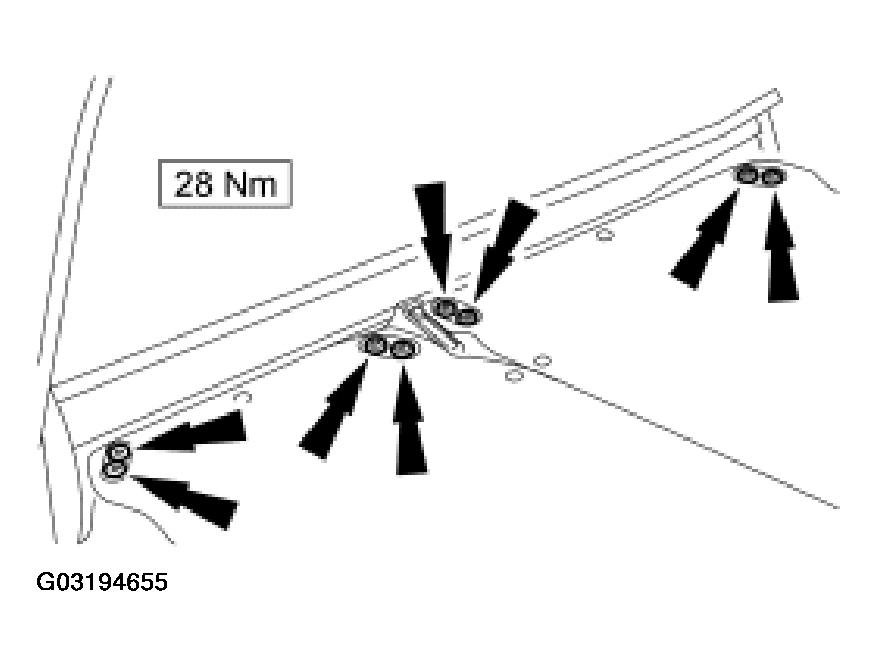

    Fig 1: Installing Rear Seat Backrest
    G03194655Courtesy of FORD MOTOR CO.

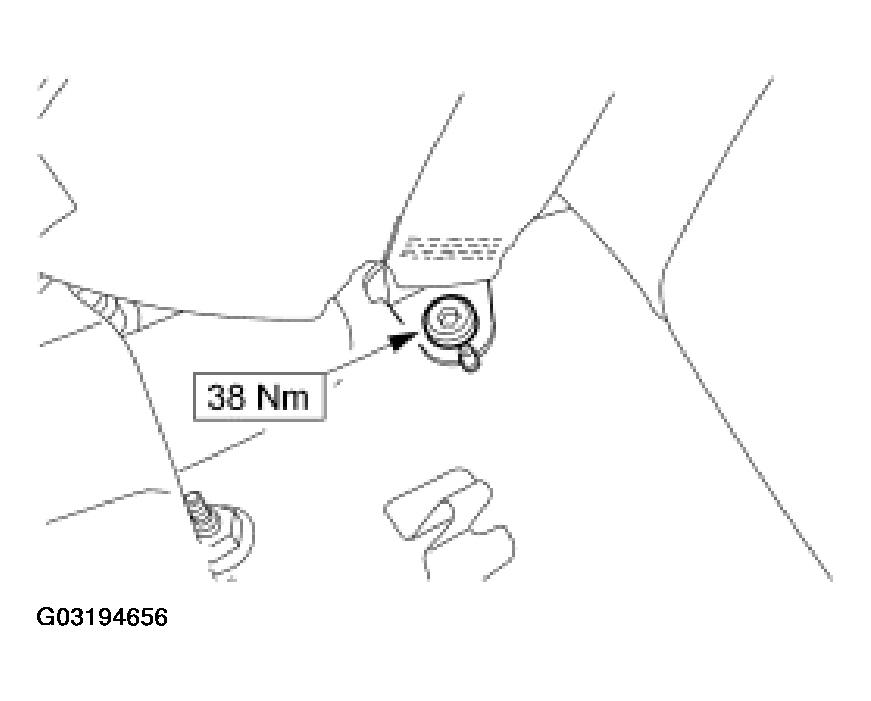

    Fig 2: Attaching Outer Safety Belt Lower Anchors
    G03194656Courtesy of FORD MOTOR CO.

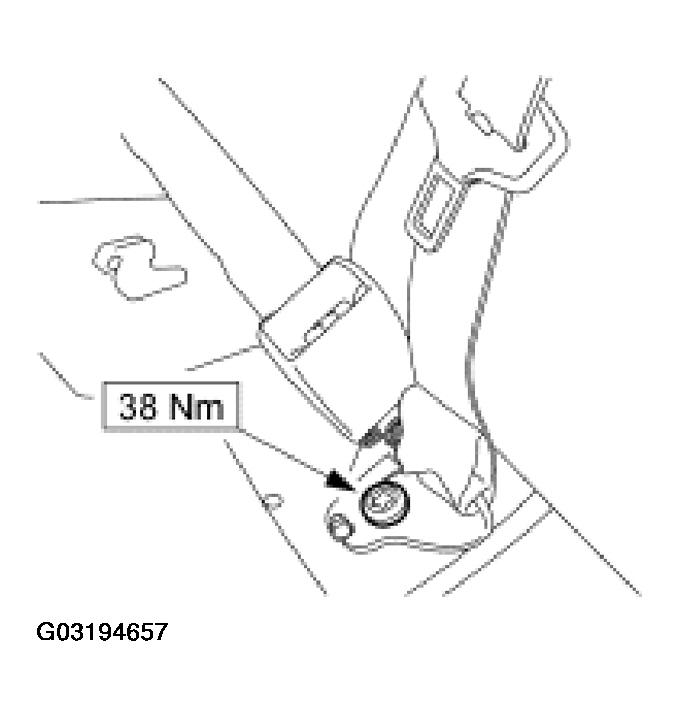

    Fig 3: Attaching Center Rear Safety Belt Lower Anchors
    G03194657Courtesy of FORD MOTOR CO.
