Front Seat: Installation

  1. Connect the underseat electrical connector.

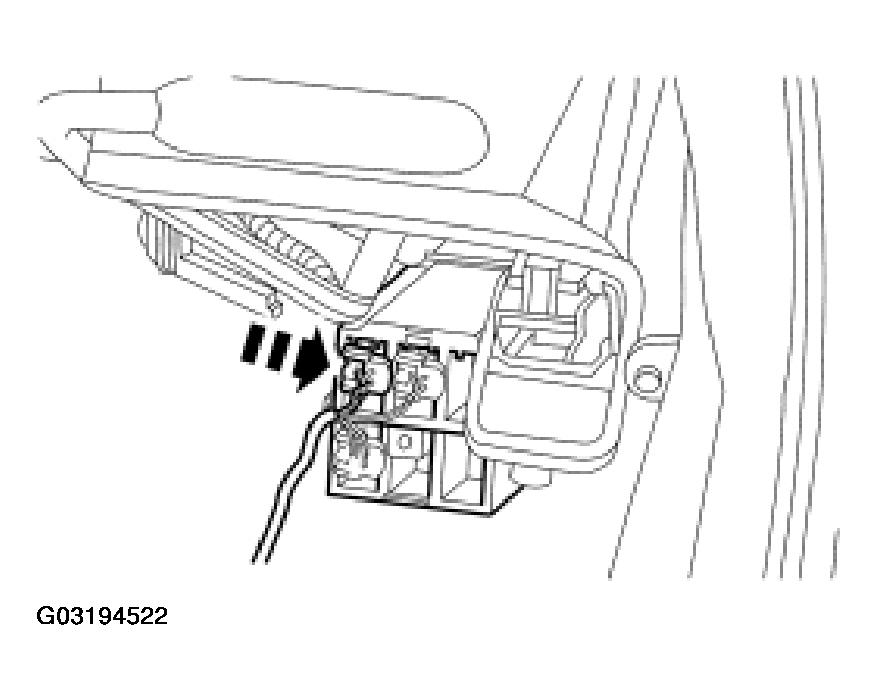

    Fig 1: Connecting Underseat Electrical Connector
    G03194522Courtesy of FORD MOTOR CO.
  2. Install the rear retaining bolts.

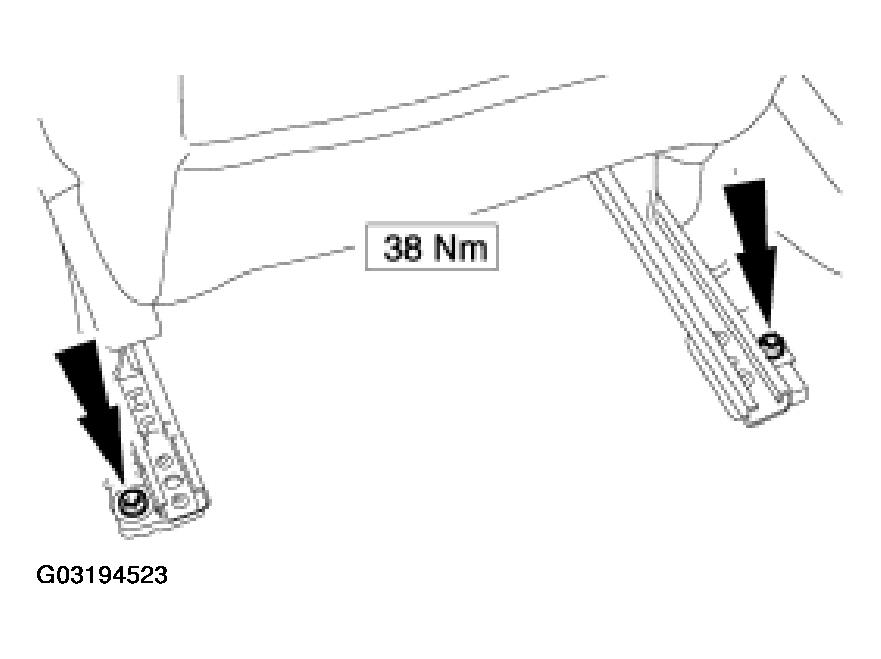

    Fig 2: Installing Rear Retaining Bolts
    G03194523Courtesy of FORD MOTOR CO.
  3. Reactivate the SRS. For additional information, refer to ACTIVATING SYSTEM .
  4. Move the seat fully rearward.
  5. Install the front retaining bolts.

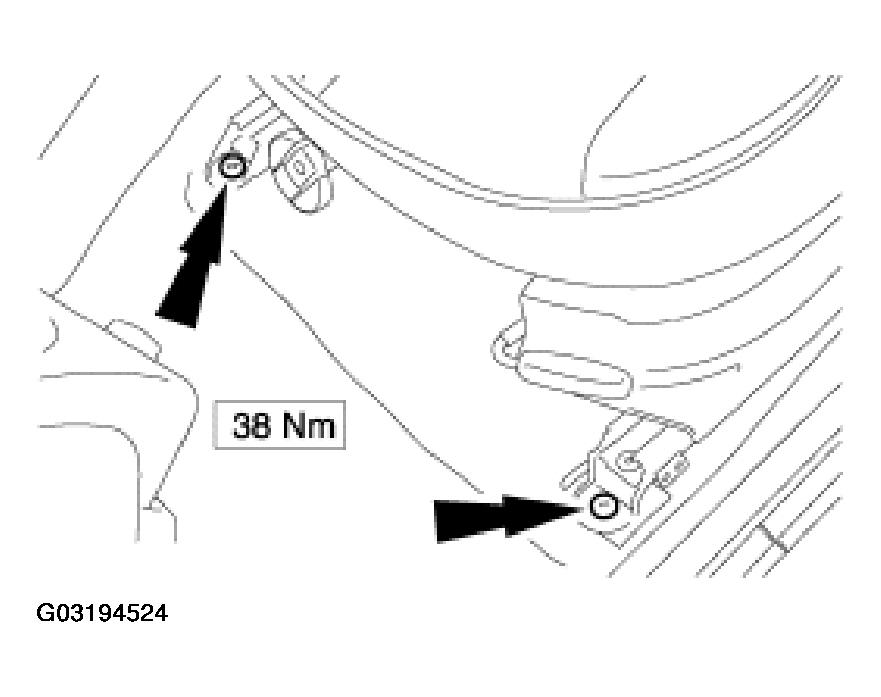

    Fig 3: Installing Front Retaining Bolts
    G03194524Courtesy of FORD MOTOR CO.
  6. Install the seat track outer trim cover.
