Camshaft Lobe Lift

  1. Determine the cam lift.
    • Using a micrometer measure the cam in two directions.
    • The difference between the two measurements is the cam lift.

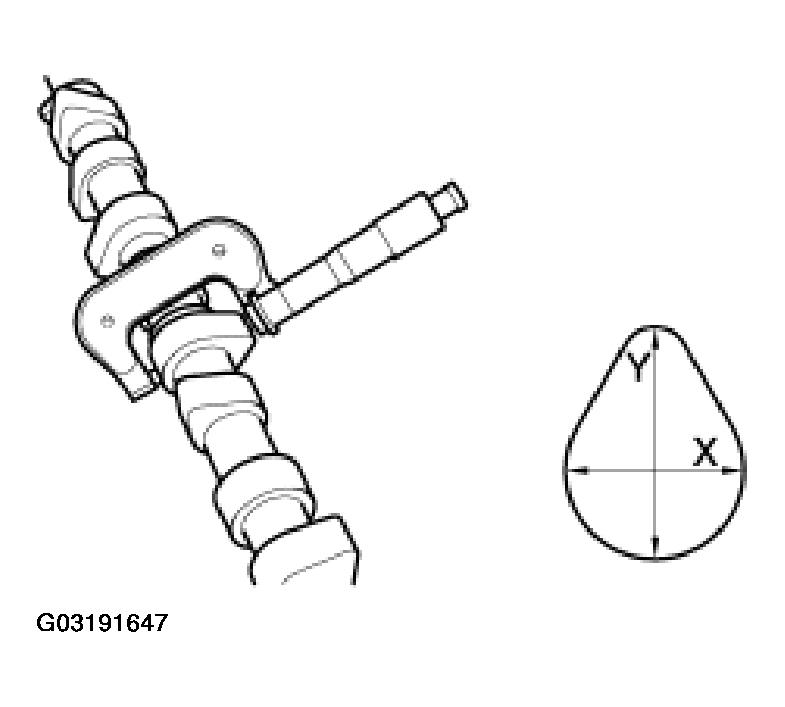

    Fig 1: Measuring Cam Lobe Lift
    G03191647Courtesy of FORD MOTOR CO.
