Cylinder Head: Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Install the valve seals.

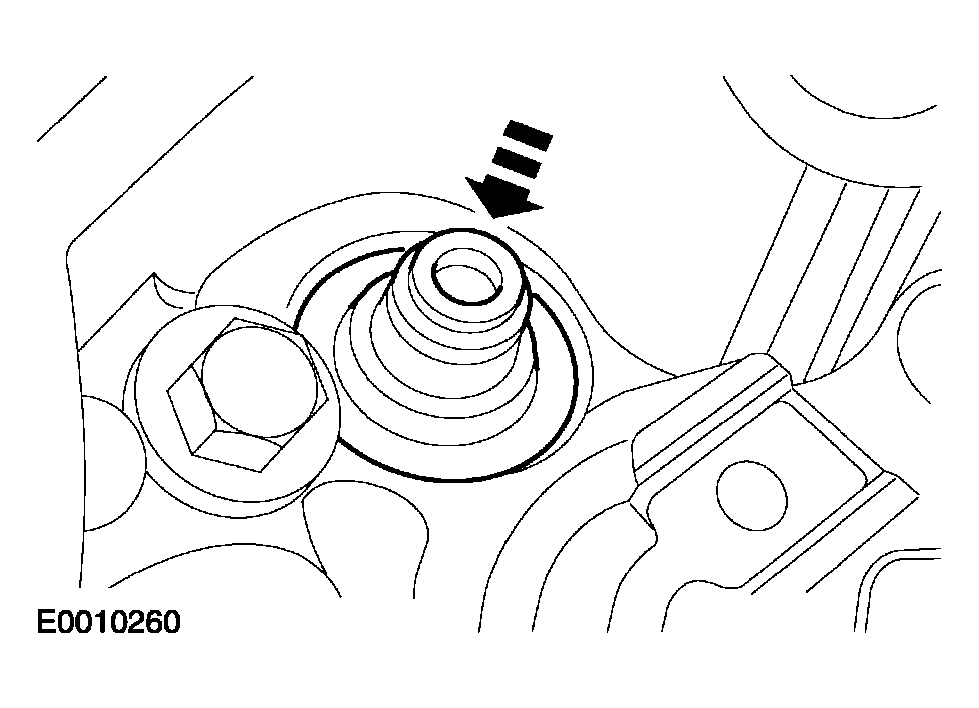

    Fig 1: Installing Valve Seals
    G04034722Courtesy of FORD MOTOR CO.
  2. NOTE: If installing the original valves, make sure, that the valves are installed in the position from which they were removed. Coat the valve stems with clean engine oil before installation.

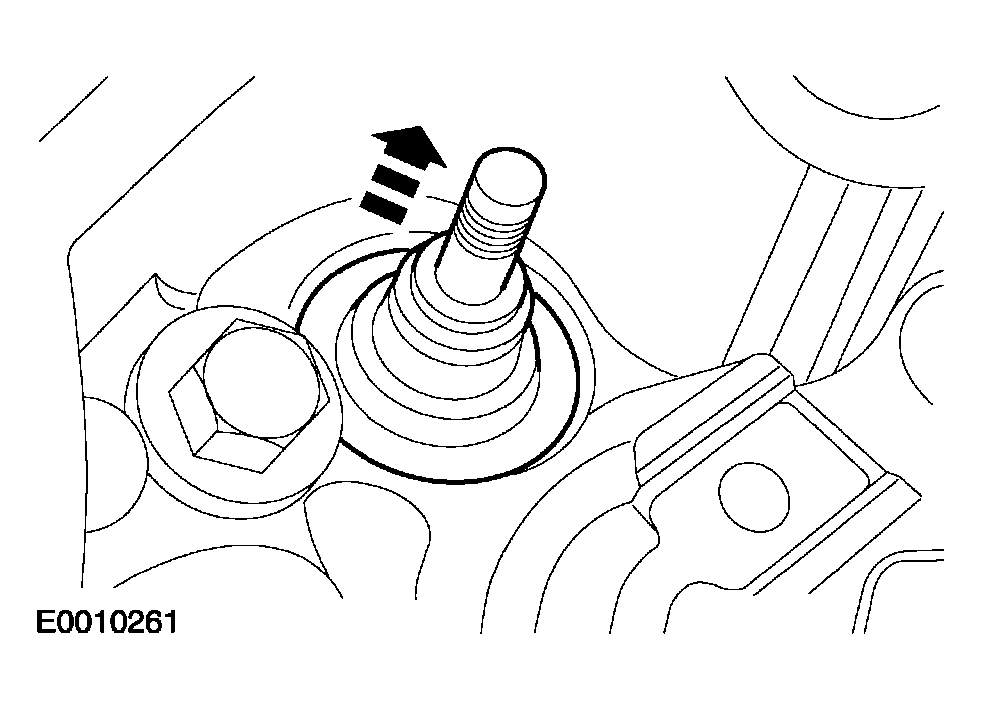

    Fig 2: Installing Exhaust And Intake Valves
    G04034723Courtesy of FORD MOTOR CO.
  3. Install the exhaust and intake valves.
  4. Using special tool, compress the valve spring and install the valve spring retainer.

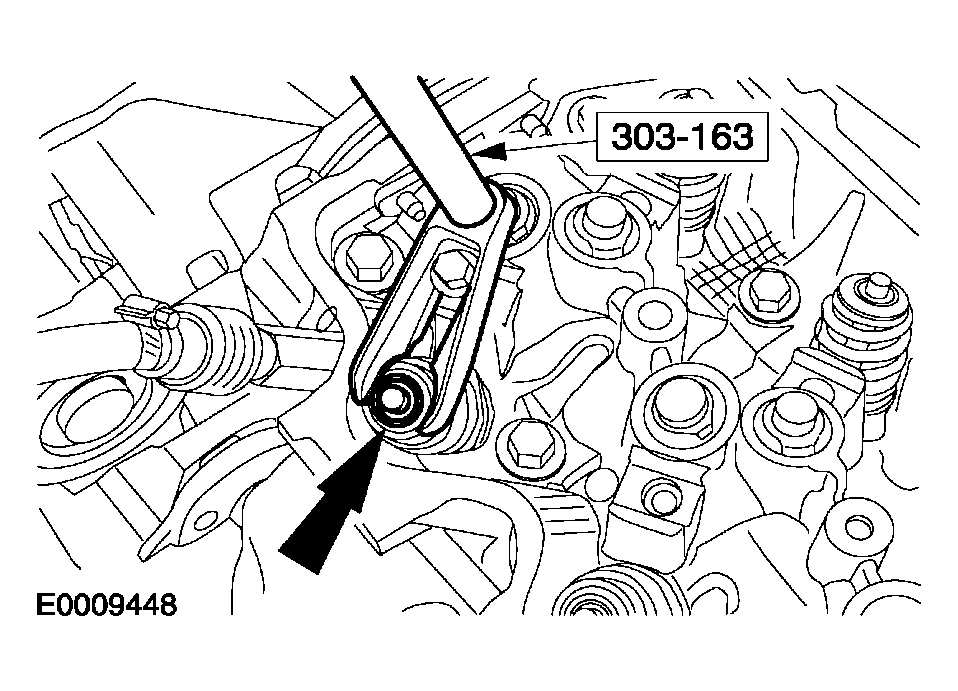

    Fig 3: Installing Valve Spring Retainer
    G04034724Courtesy of FORD MOTOR CO.
  5. NOTE: Lubricate the camshaft lobes and bearing surfaces with a suitable engine assembly lubricant.
    NOTE: Inspect for the presence of a clogged oil gallery. Verify that the camshaft contains the camshaft oil flow control rod and the rear end has a cup plug installed prior to the installation of the camshaft.

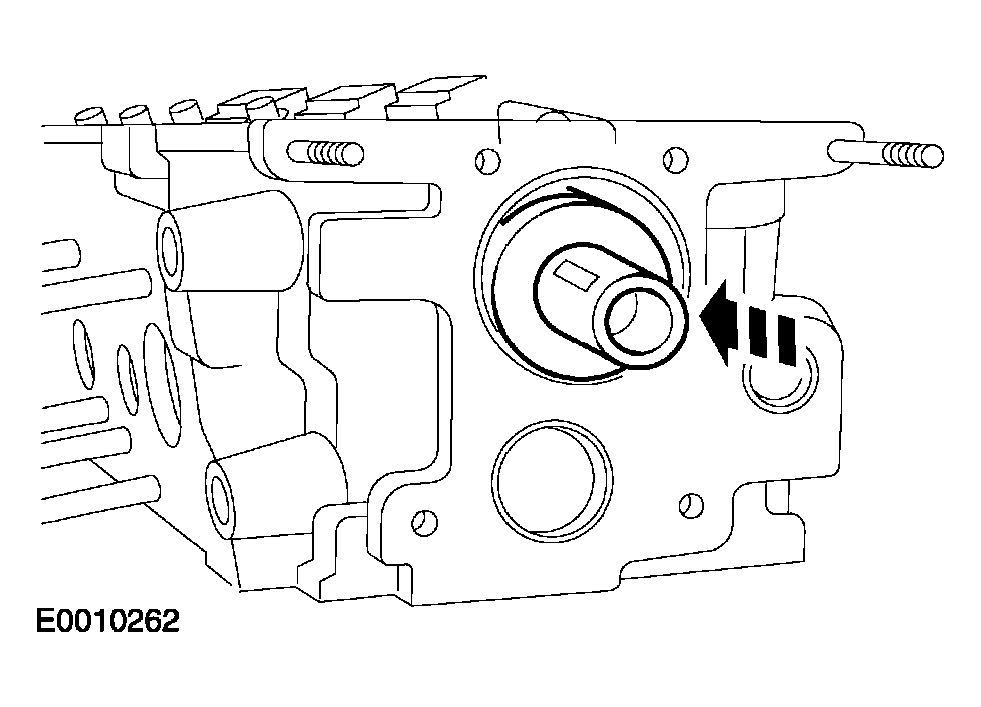

    Fig 4: Installing Camshaft
    G04034725Courtesy of FORD MOTOR CO.
  6. Install the camshaft.
  7. Apply a thin film of clean engine oil to the lip of the camshaft front seal.
  8. NOTE: The seal depth should be 0.05-0.0 mm below flush with the cylinder head front face.

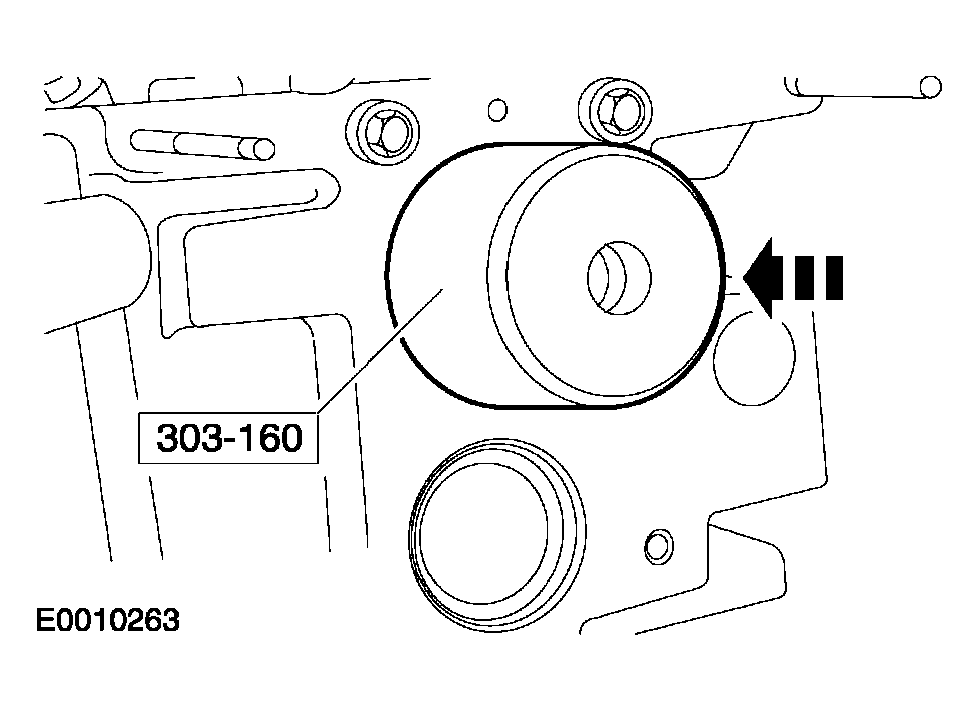

    Fig 5: Installing Camshaft Front Seal
    G04034726Courtesy of FORD MOTOR CO.
  9. Using the special tool, install the camshaft front seal.
  10. Install the camshaft thrust plate.

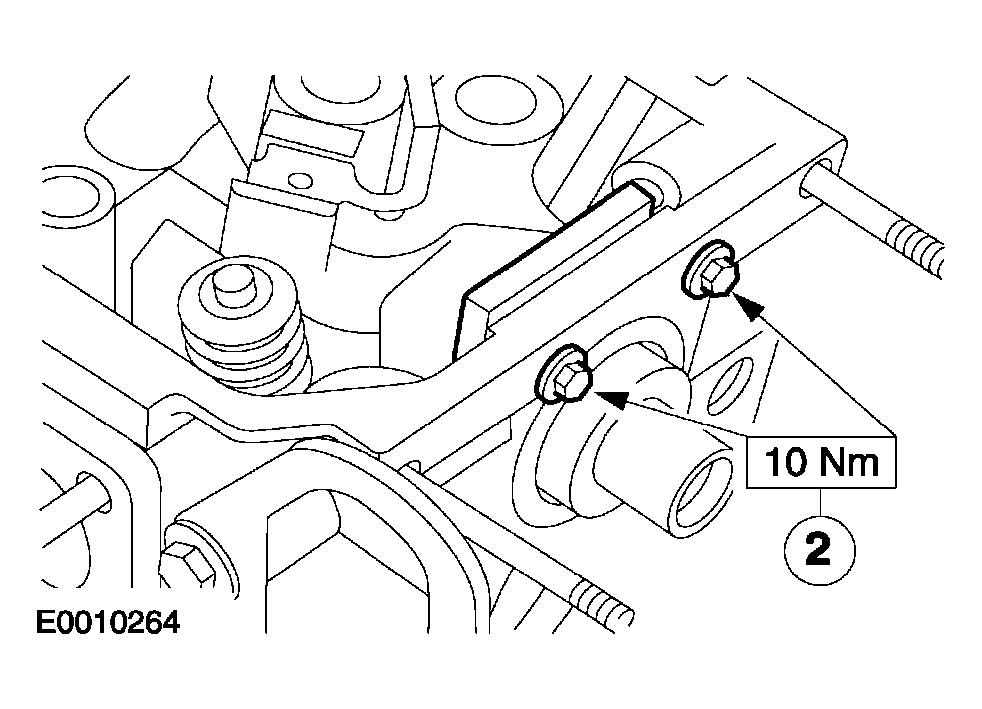

    Fig 6: Installing Camshaft Thrust Plate
    G04034727Courtesy of FORD MOTOR CO.
  11. CAUTION: The oil feed hold in the valve tappet must face away from the oil feed hole in the cylinder head bore.
    NOTE: Coat the valve tappets and cylinder head bores with a suitable engine assembly lubricant.

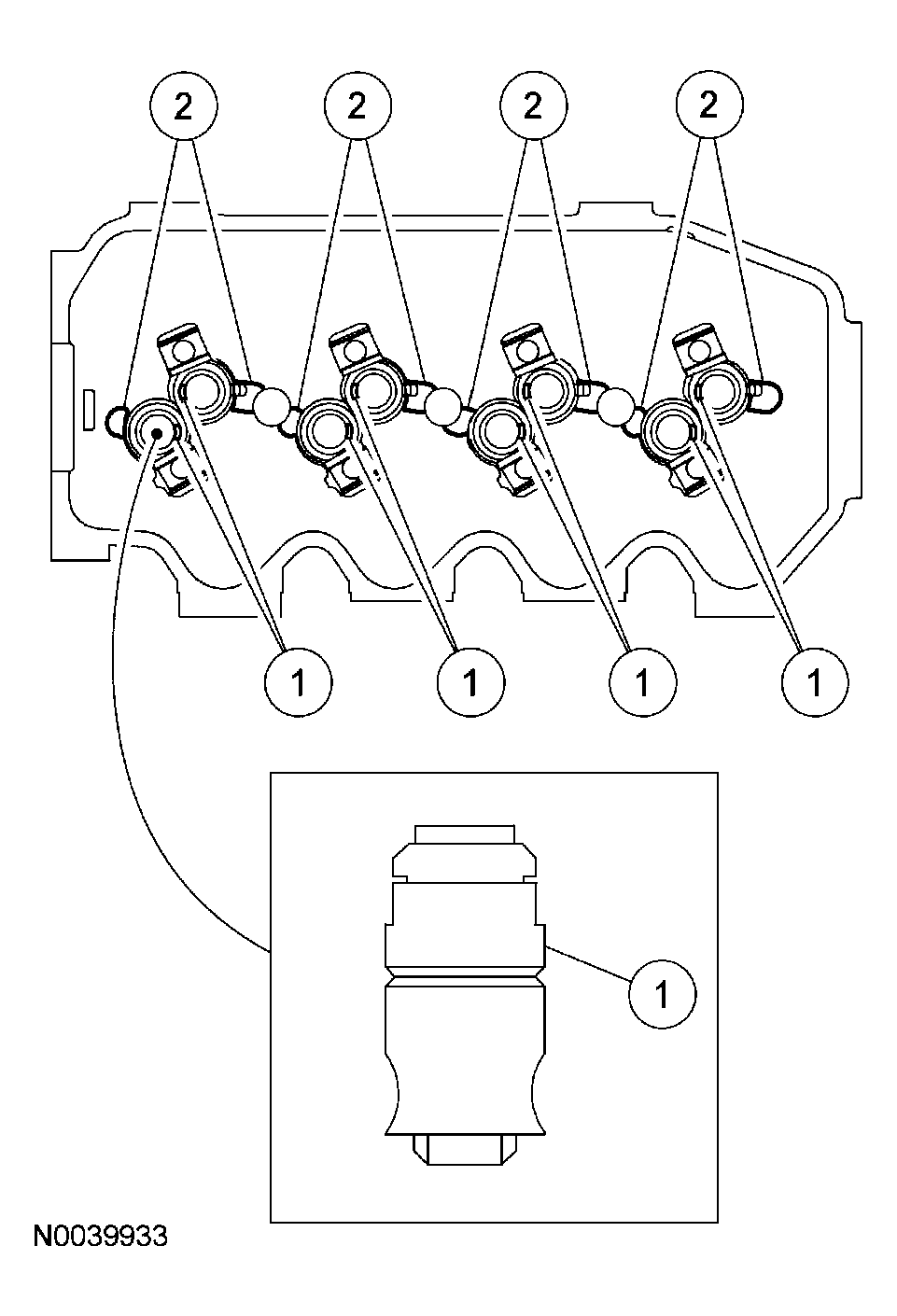

    Fig 7: Installing Valve Tappets Into Cylinder Head Bores With Oil Feed Holes
    G04034728Courtesy of FORD MOTOR CO.
  12. Install the valve tappets into the cylinder head bores with the oil feed holes (1) in the valve tappets facing away from the oil feed holes (2) in the cylinder head bores.
  13. Install the valve tappet guide plates (1) and valve tappet guide retainers (2).

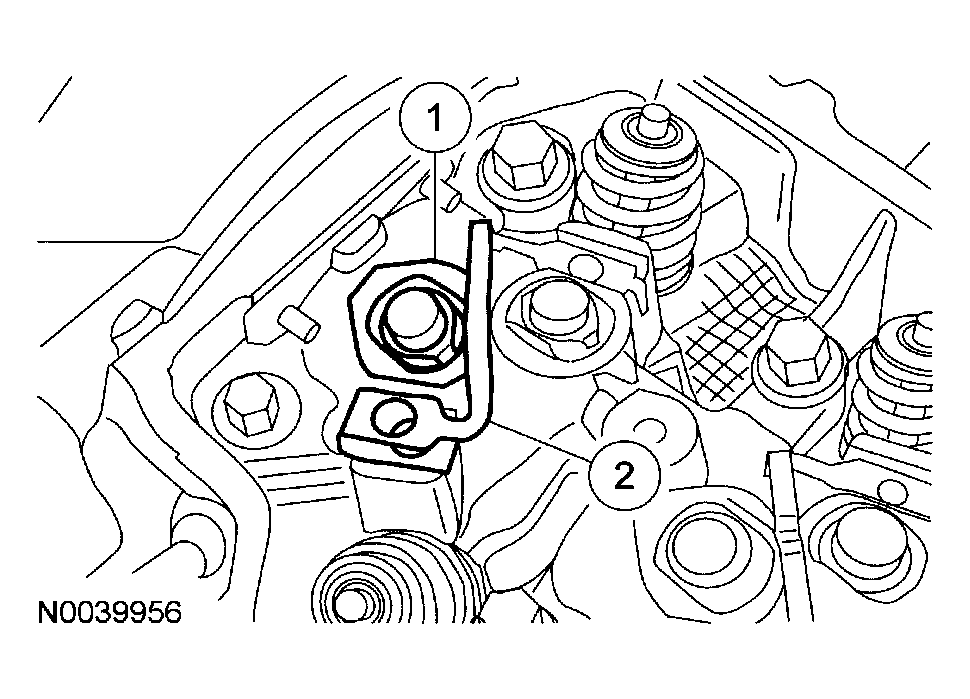

    Fig 8: Installing Valve Tappet Guide Plates And Valve Tappet Guide Retainers
    G04034729Courtesy of FORD MOTOR CO.
  14. Install the rocker arms.

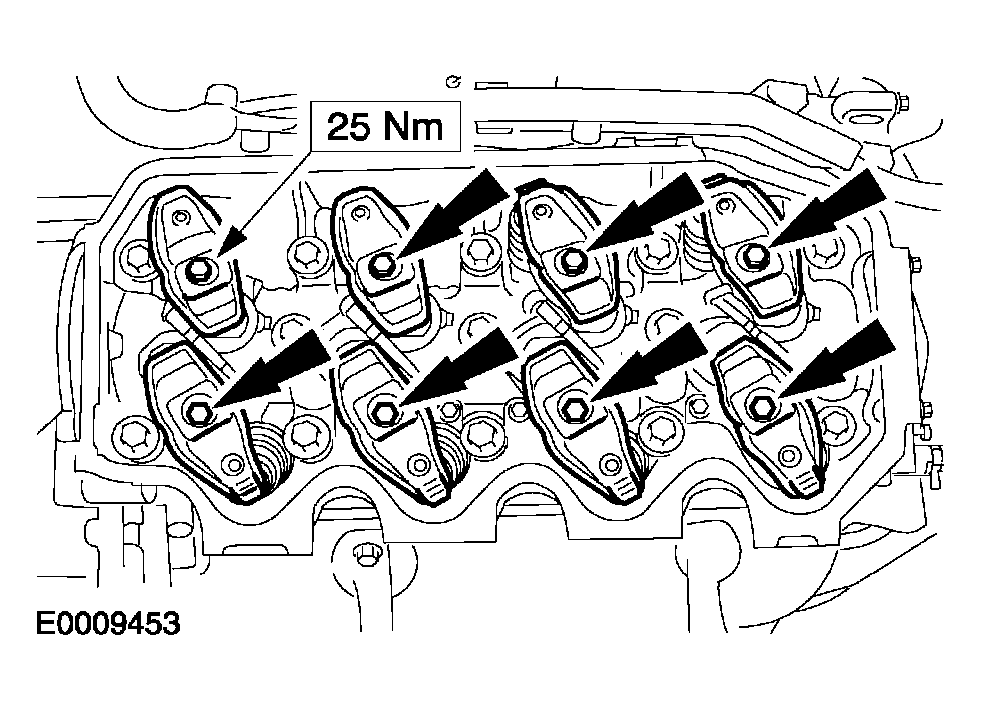

    Fig 9: Installing Rocker Arms
    G04034730Courtesy of FORD MOTOR CO.
  15. Install the coil bracket, coil and spark plug wires.

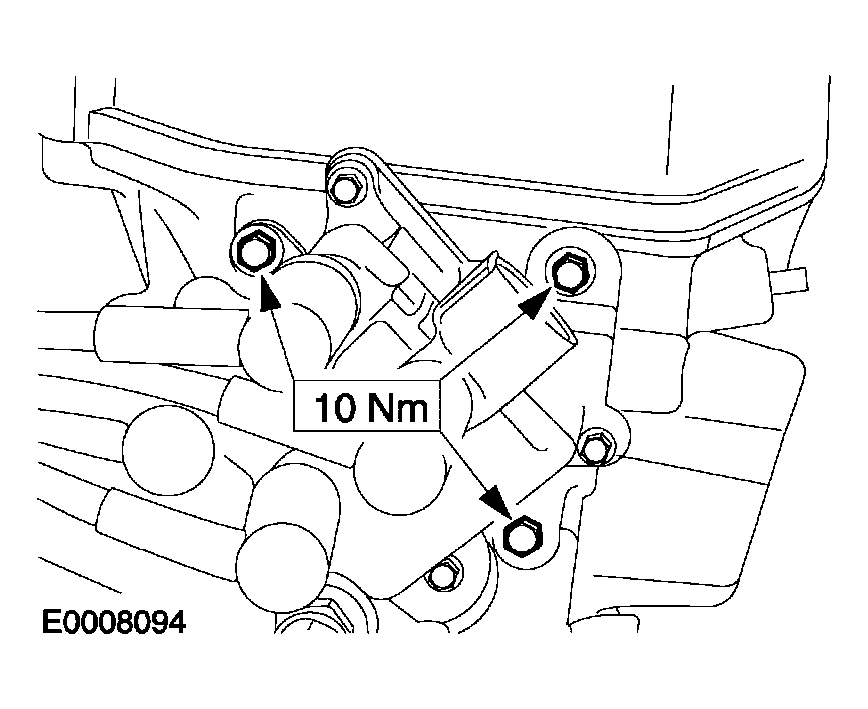

    Fig 10: Installing Coil Bracket, Coil And Spark Plug Wires
    G04034731Courtesy of FORD MOTOR CO.
  16. NOTE: Inspect the coolant outlet connection gasket. Install a new gasket if it is cracked, torn, or damaged.

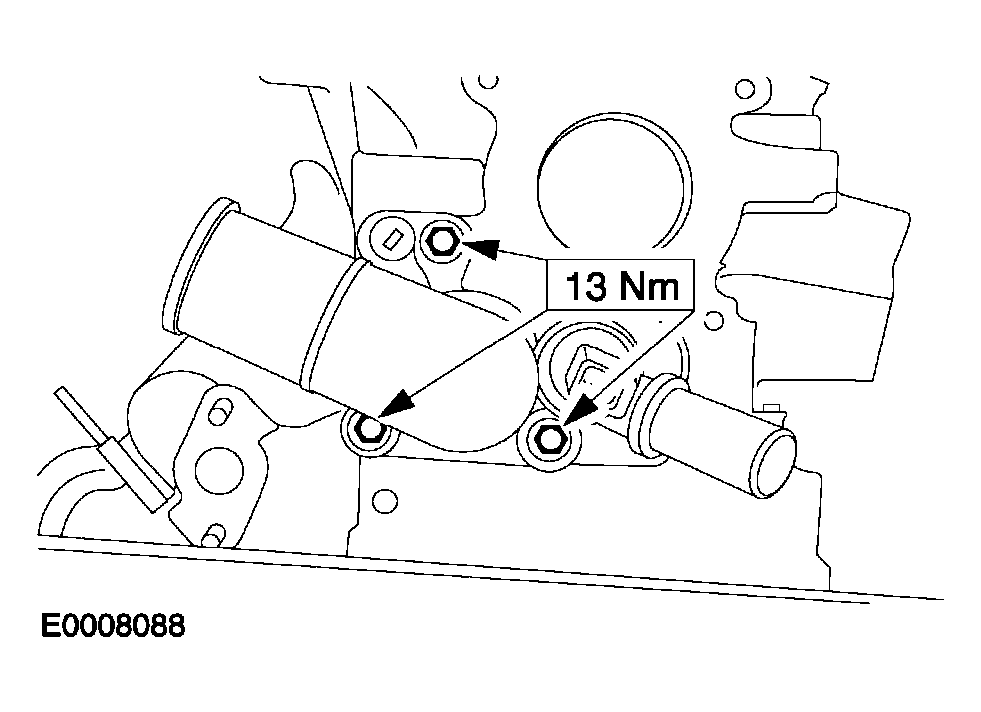

    Fig 11: Installing Coolant Outlet Connection
    G04034732Courtesy of FORD MOTOR CO.
  17. Install the coolant outlet connection.
  18. NOTE: Tighten the bolts evenly.

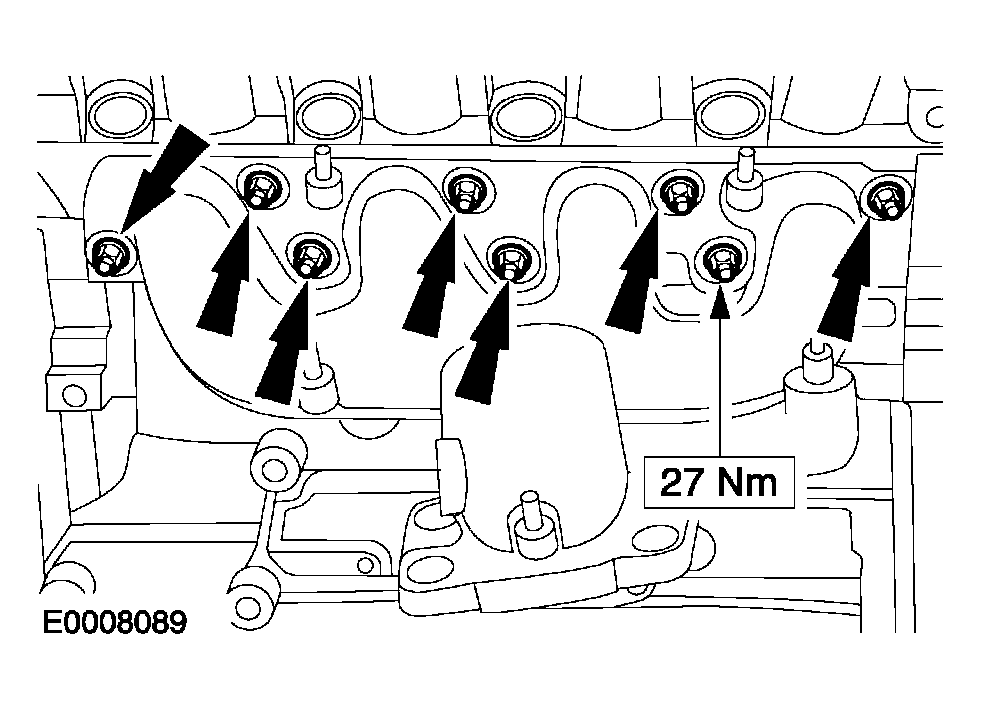

    Fig 12: Installing Exhaust Manifold
    G04034733Courtesy of FORD MOTOR CO.
  19. Install the exhaust manifold.
    • Use a new gasket.
  20. Install a new gasket and the intake manifold.
    • Tighten the nuts and bolts to 10 Nm and 90 degrees.

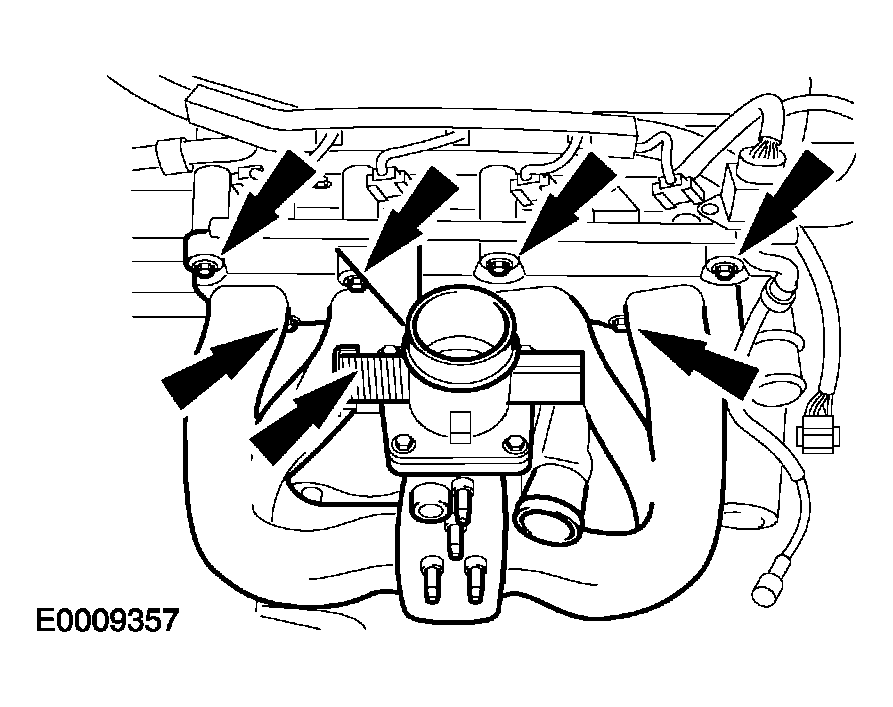

    Fig 13: Installing Intake Manifold
    G04034734Courtesy of FORD MOTOR CO.
  21. Using the special tool. Install the camshaft timing belt pulley.

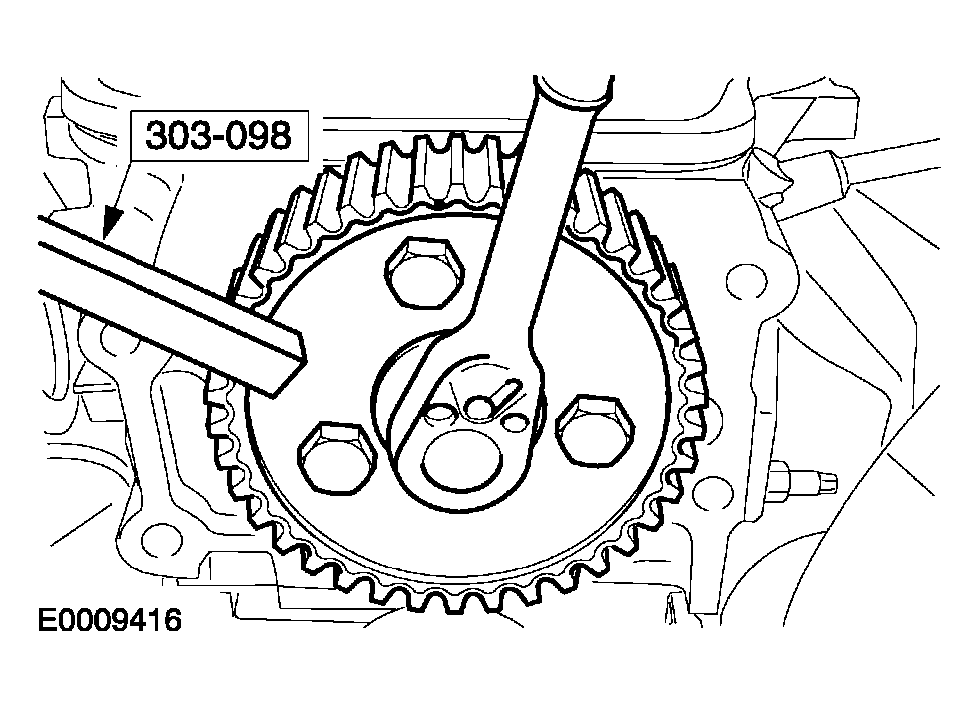

    Fig 14: Installing Camshaft Timing Belt Pulley
    G04034735Courtesy of FORD MOTOR CO.
  22. Install the spark plugs (shown with engine removed).

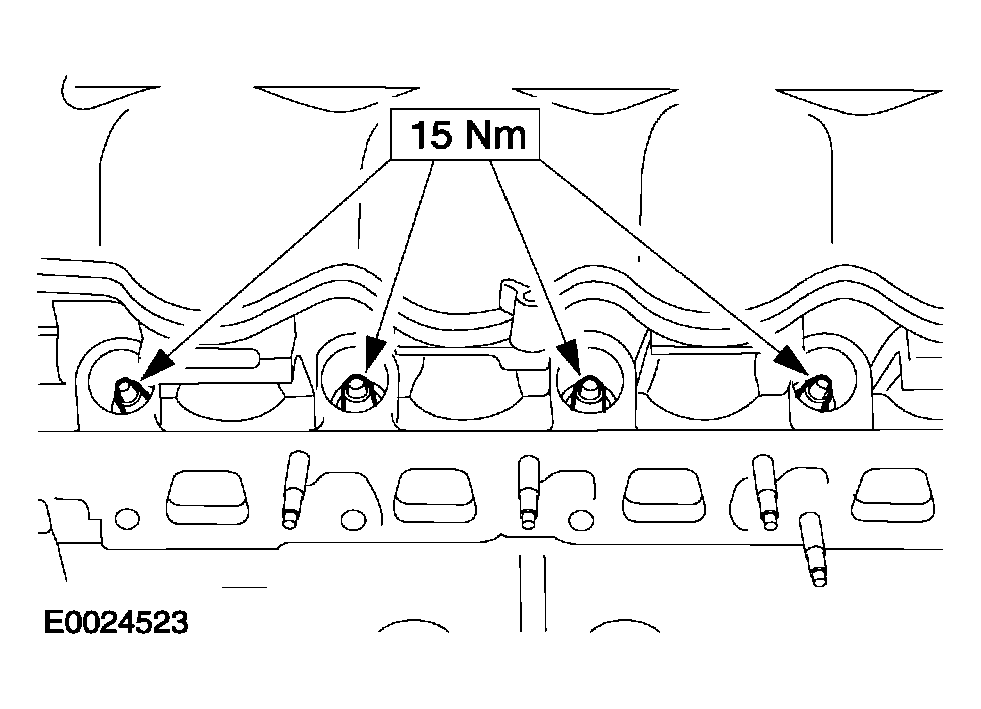

    Fig 15: Installing Spark Plugs
    G04034736Courtesy of FORD MOTOR CO.
  23. CAUTION: Use a blunt object (for example plastic cable tie) to apply the silicone grease, to avoid damaging the spark plug connector seal.
    CAUTION: Push on the spark plug connector in a straight movement.
    NOTE: Coat the inside of the spark plug connector with silicone grease to a depth of 5-10 mm.

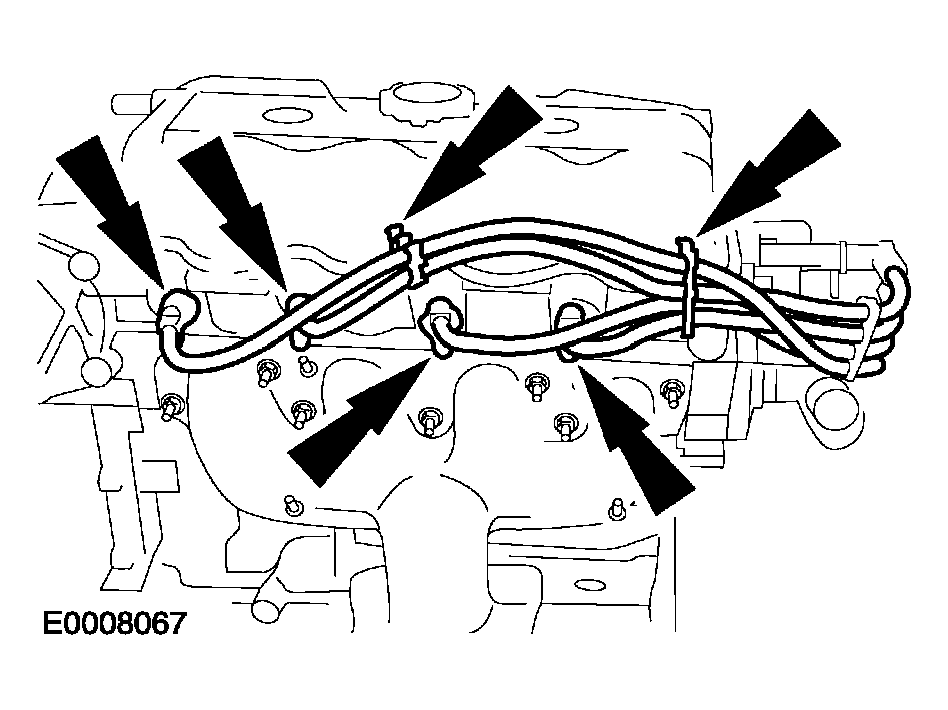

    Fig 16: Installing Spark Plug Wires
    G04034737Courtesy of FORD MOTOR CO.
  24. Push on the spark plug connector until it engages.

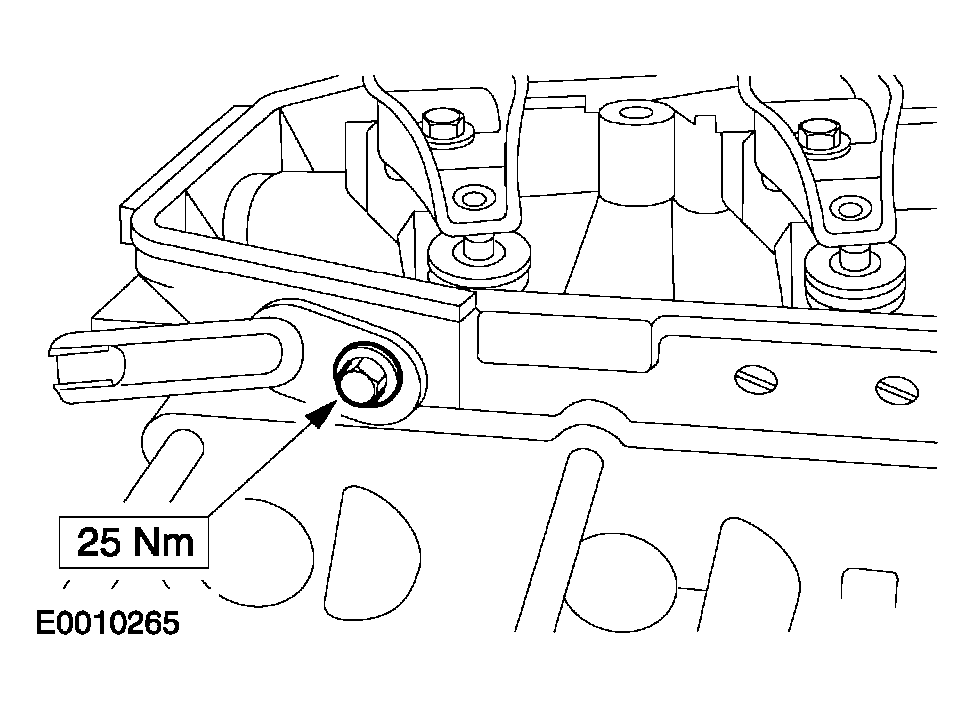

  25. Install the CMP sensor.
    Fig 17: Installing CMP Sensor
    G04034738Courtesy of FORD MOTOR CO.
