Valve Springs: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Use the special tool to compress the valve spring and install the valve spring retainer.

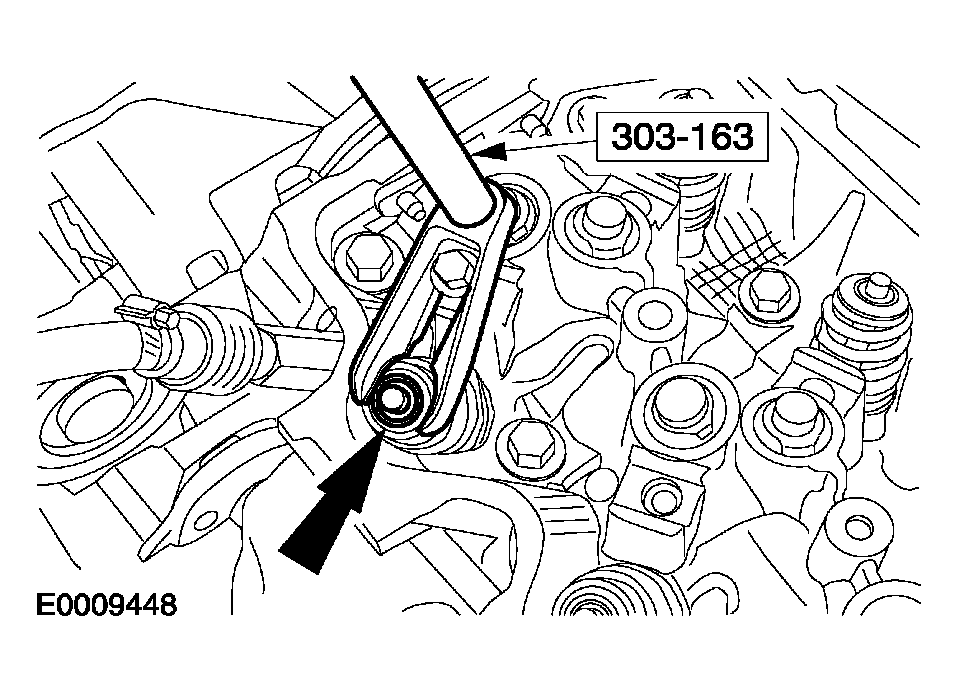

    Fig 1: Installing Valve Spring Retainer
    G04034397Courtesy of FORD MOTOR CO.
    2. NOTE: Check that the rocker guides are sitting correctly.

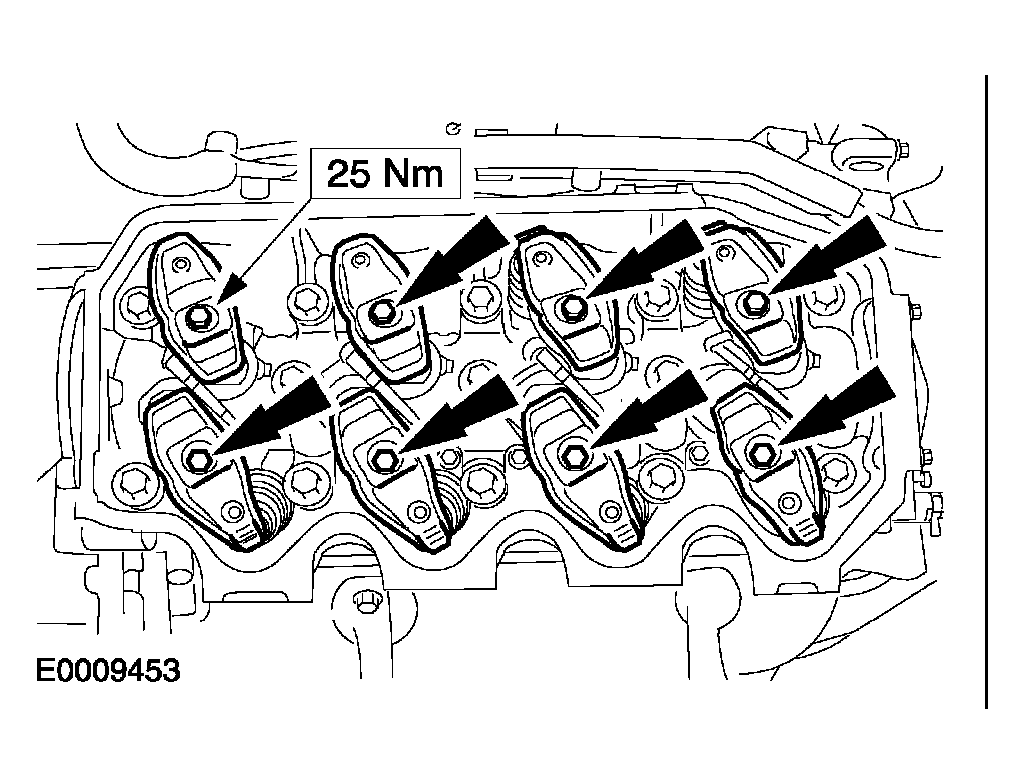

    Fig 2: Installing Rocker Arms
    G04034398Courtesy of FORD MOTOR CO.
  2. Install the rocker arms.
  3. Remove the adaptor.

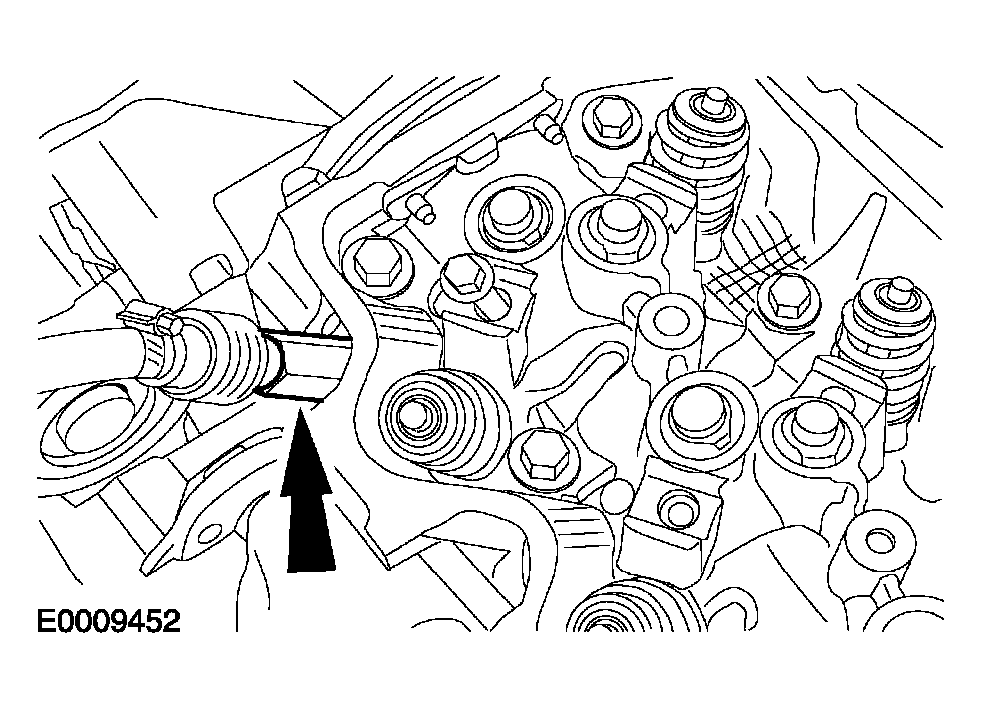

    Fig 3: Removing Adaptor
    G04034399Courtesy of FORD MOTOR CO.
  4. Install the valve cover.

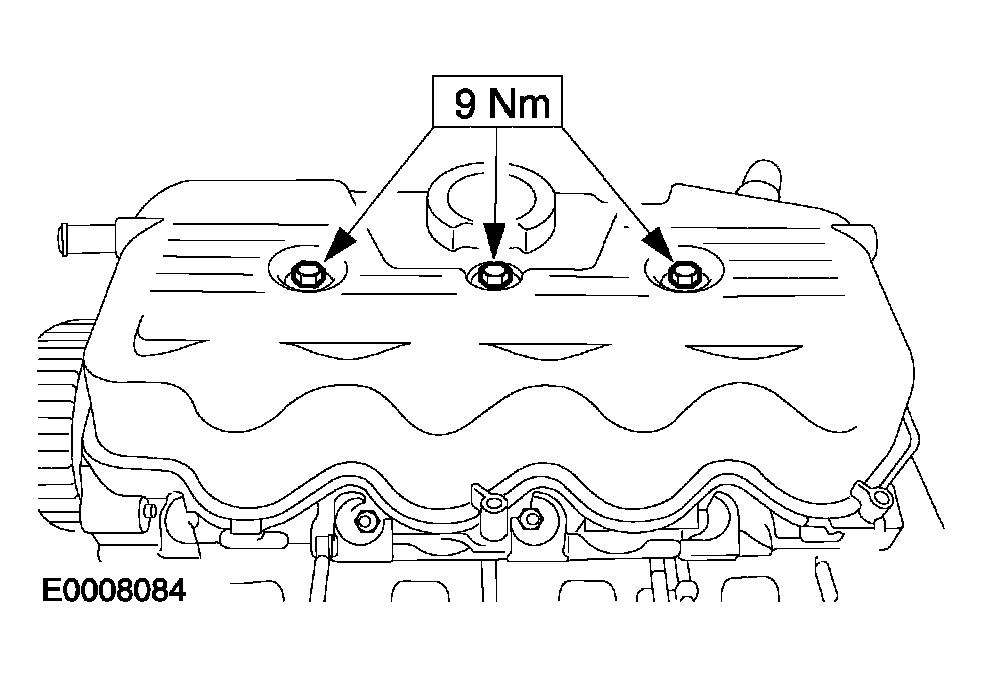

    Fig 4: Installing Valve Cover
    G04034400Courtesy of FORD MOTOR CO.
  5. Install the spark plugs (shown with engine removed).
    • Apply lubricant to the spark plug thread.

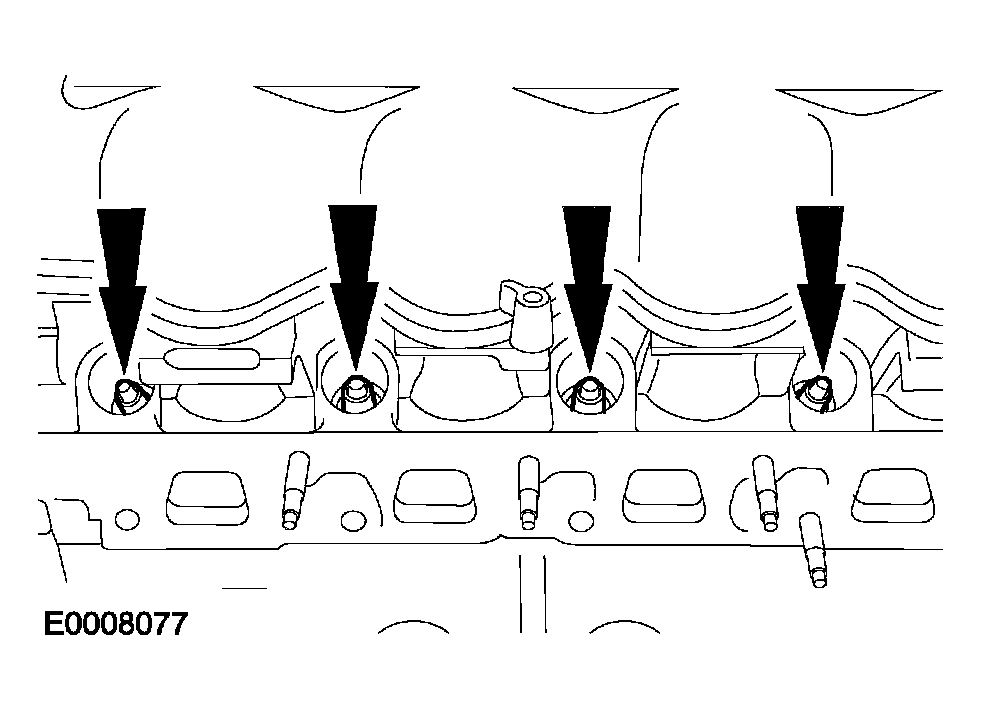

    Fig 5: Installing Spark Plugs
    G04034401Courtesy of FORD MOTOR CO.
    6. CAUTION: Use a blunt object (plastic cable tie) to apply the silicone grease, to avoid damaging the spark plug connector seal.
    CAUTION: Push on the spark plug connector in a straight movement.
    NOTE: Coat the inside of the spark plug connector with silicone grease to a depth of 5-10 mm.

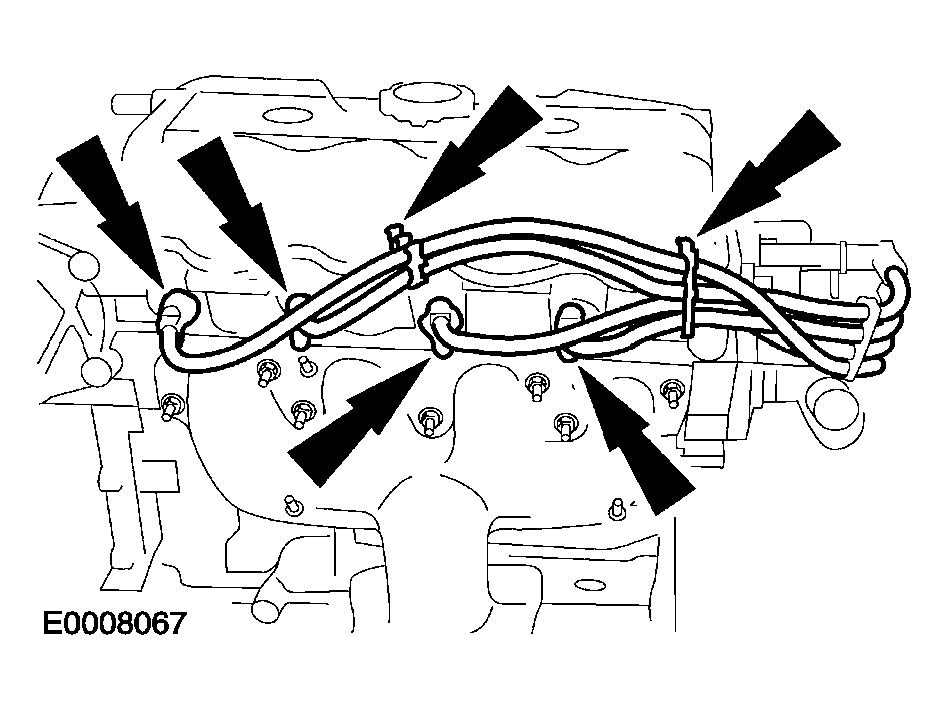

    Fig 6: Pushing On Spark Plug Wires
    G04034402Courtesy of FORD MOTOR CO.
  6. Push on the spark plug connector until it engages.
  7. Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
