Power Steering Pump - SVT: Installation

NOTE: If installing a new power steering pump, the unions supplied with the new pump should be removed and retained for further use.

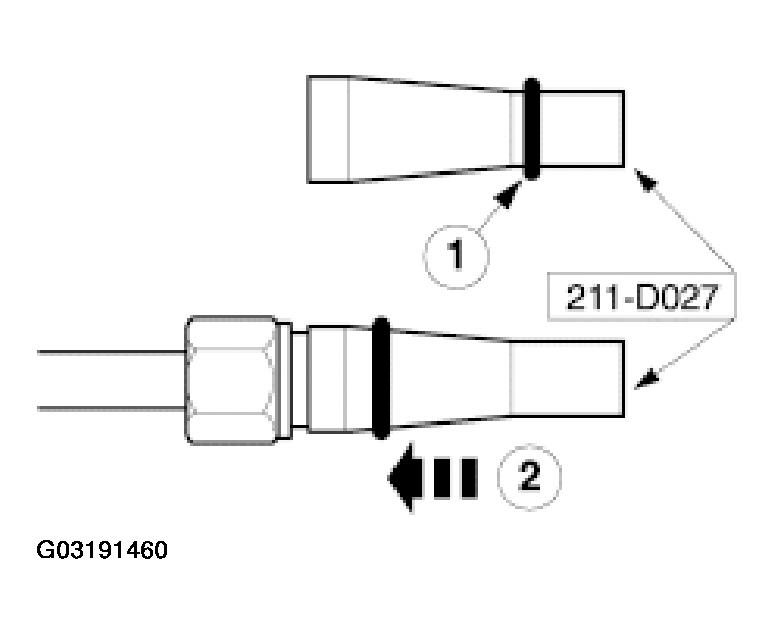

Fig 1: Installing O-Ring Seal Onto Power Steering Pump To Steering Gear Line Union

Courtesy of FORD MOTOR CO.

Using the special tool, install a new O-ring seal onto the power steering pump to steering gear line union.
1. Push the O-ring seal onto the special tool.
2. Locate the special tool onto the union and install the O-ring seal.
To install, reverse the removal procedure.
Fill the power steering system. For additional information, refer to STEERING SYSTEM-GENERAL INFORMATION .
