Power Steering Pump Pulley: Installation

    NOTE: Make sure the pulley is flush with the end of the power steering pump shaft.

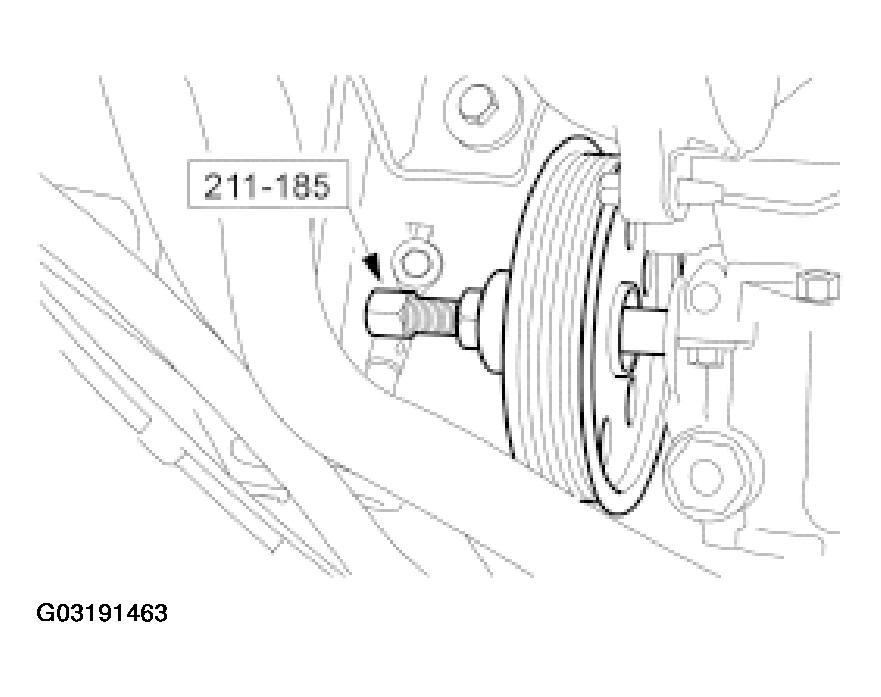

    Fig 1: Installing Power Steering Pump Pulley
    G03191463Courtesy of FORD MOTOR CO.
  1. Using the special tool, install the power steering pump pulley.
  2. Install the accessory drive belt. For additional information, refer to SPECIFICATIONS & DRIVE BELT ROUTING .
