Steering Gear Bushing: Installation

NOTE: Lubricate the new bushing with a suitable rubber lubricant.

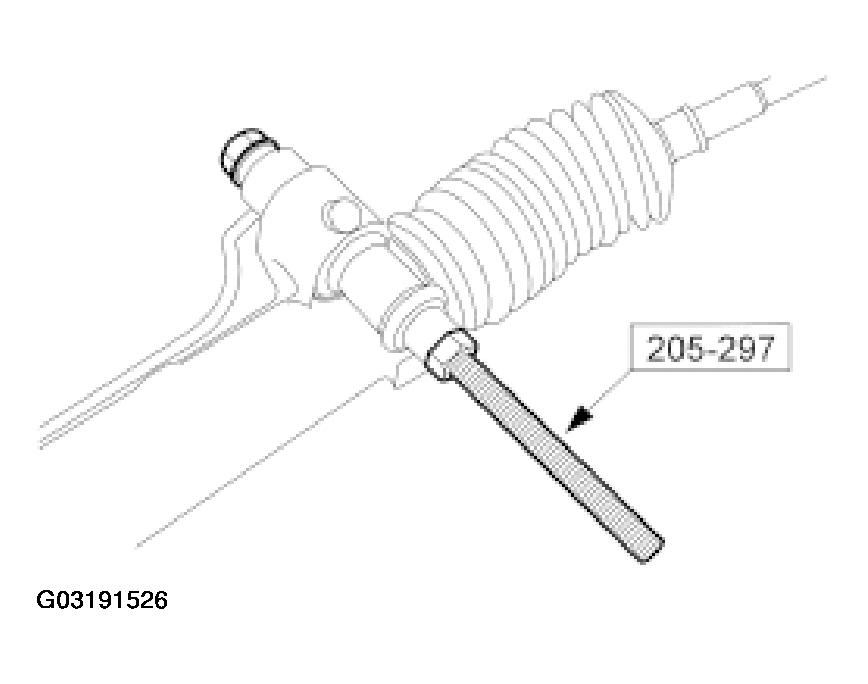

Fig 1: Installing Insulator Bushings

Courtesy of FORD MOTOR CO.

Using the special tool, install new insulator bushings.
Using the special tools, make sure the insulator bushings are installed to the correct depth.

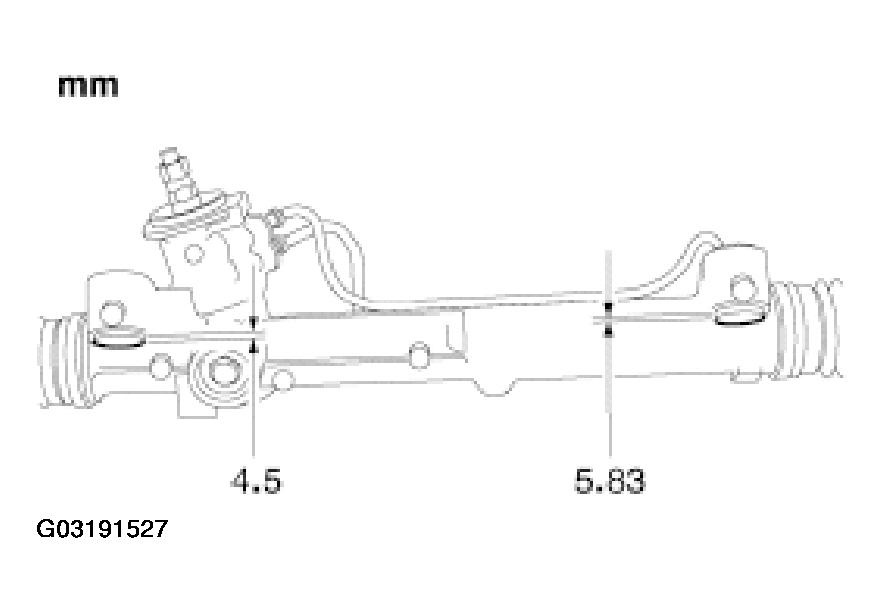

Fig 2: Ensuring Insulator Bushings Are At Correct Depth
Courtesy of FORD MOTOR CO.
Install the steering gear. For additional information, refer to STEERING GEAR .
