Overview Of Construction And Function

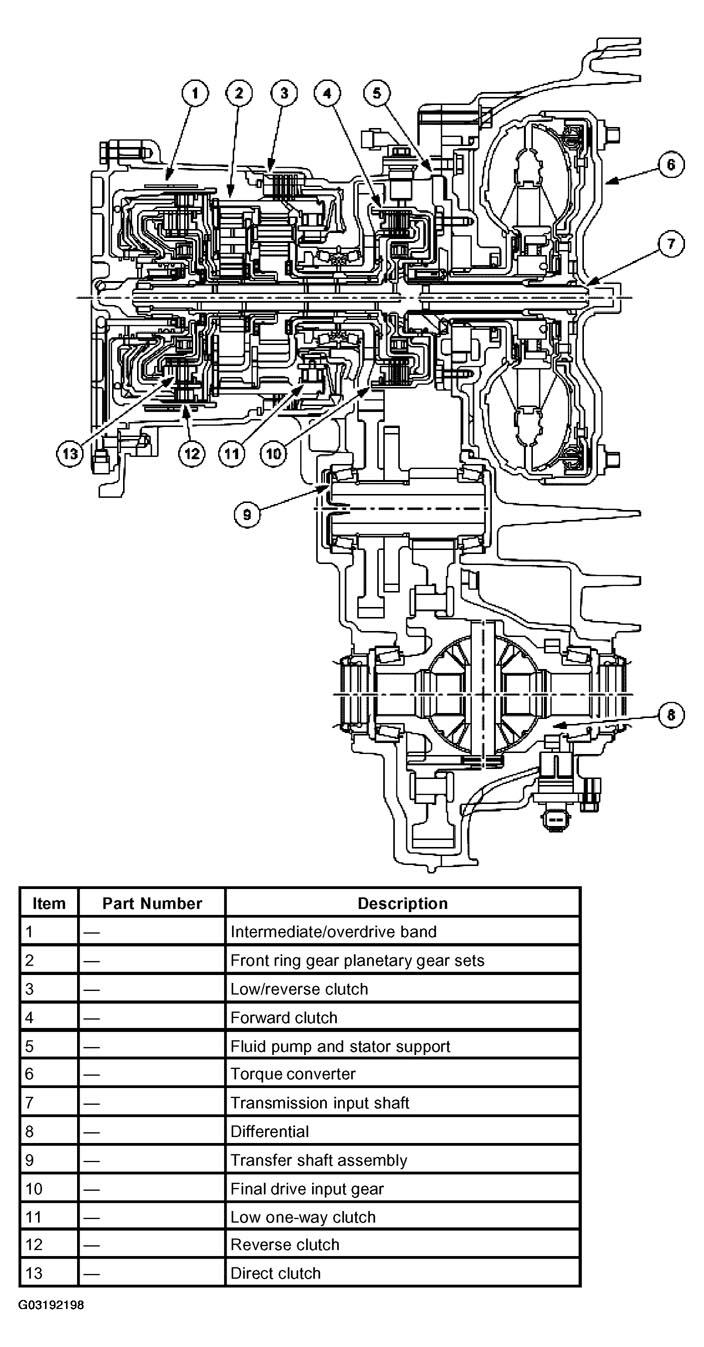

Fig 1: Identifying Overview Of Construction And Function Components
G03192198Courtesy of FORD MOTOR CO.
