Final Drive Carrier and Differential Assembly: Assembly

Lubricate the gears and thrust washers with clean automatic transmission fluid.

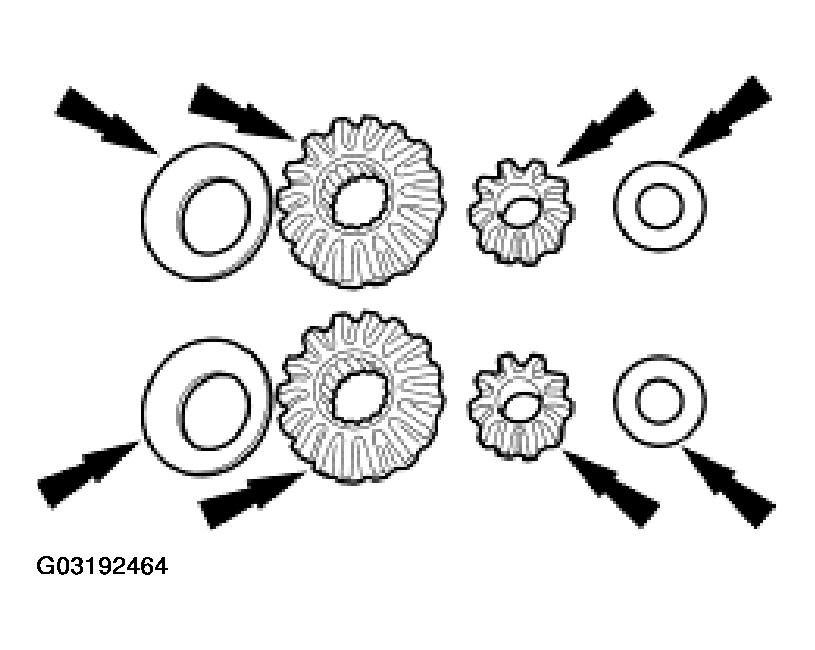

Fig 1: Lubricating Gears And Thrust Washers
Courtesy of FORD MOTOR CO.
Install the different pinion gears and thrust washers.
1. Install the differential side gears and thrust washers.
2. Install the differential pinion gears and thrust washers by rotating 90 degrees.

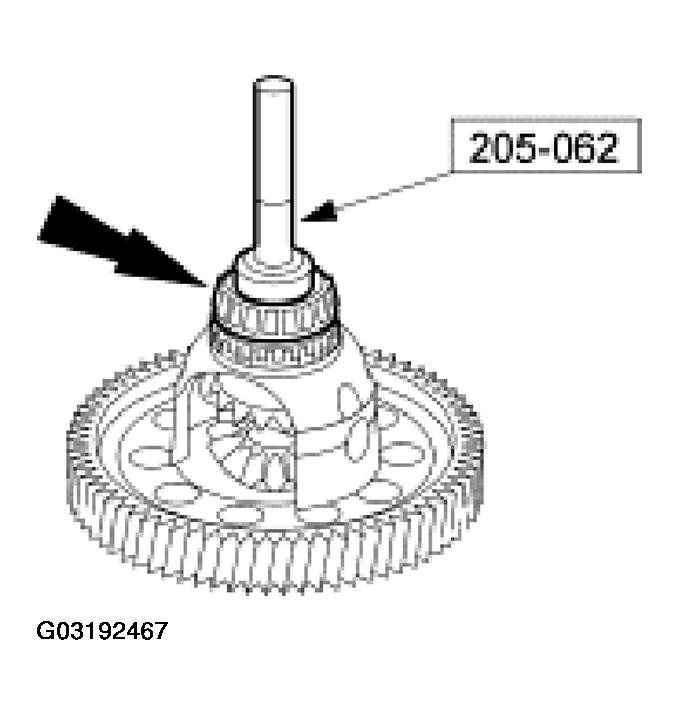

Fig 2: Installing Different Pinion Gears And Thrust Washers
Courtesy of FORD MOTOR CO.

NOTE: Install a new roll pin.

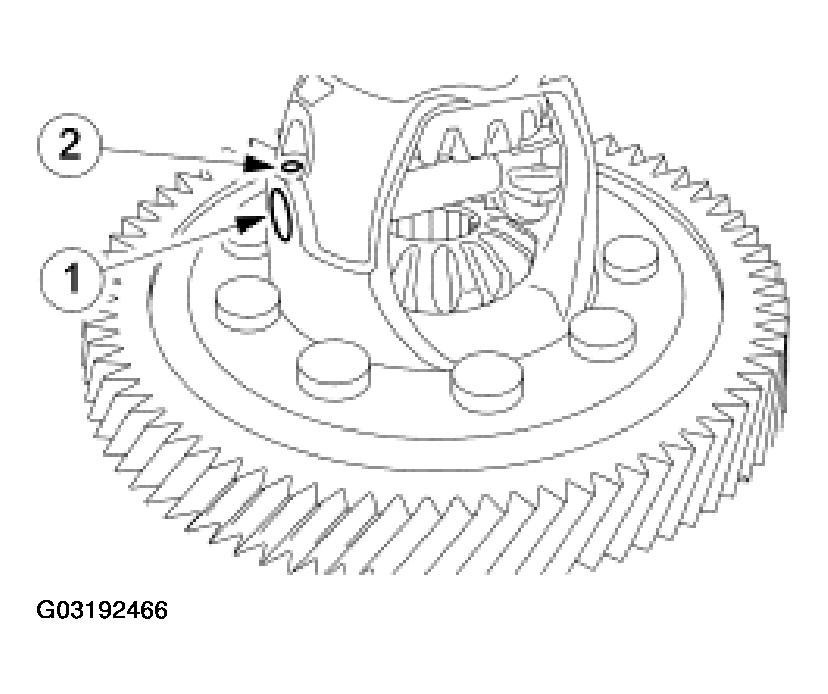

Fig 3: Installing Differential Pinion Shaft

Courtesy of FORD MOTOR CO.

Install the differential pinion shaft.
1. Install the pinion shaft.
2. Install the roll pin.

NOTE: Left-hand side shown, right-hand side similar.

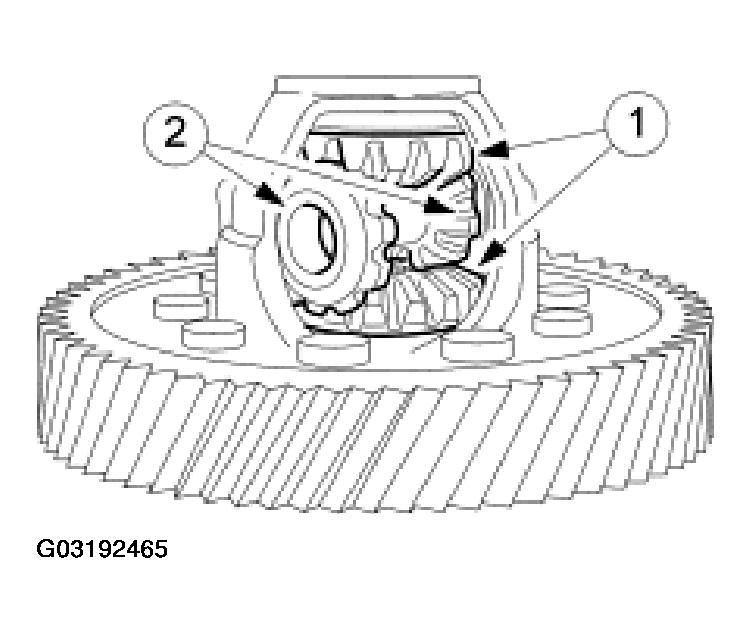

Fig 4: Installing Differential Case Bearings

Courtesy of FORD MOTOR CO.
