Forward Clutch: Material

MATERIAL SPECIFICATION

Item Specification
Automatic Transmission Fluid XT-5-QM MERCON® V

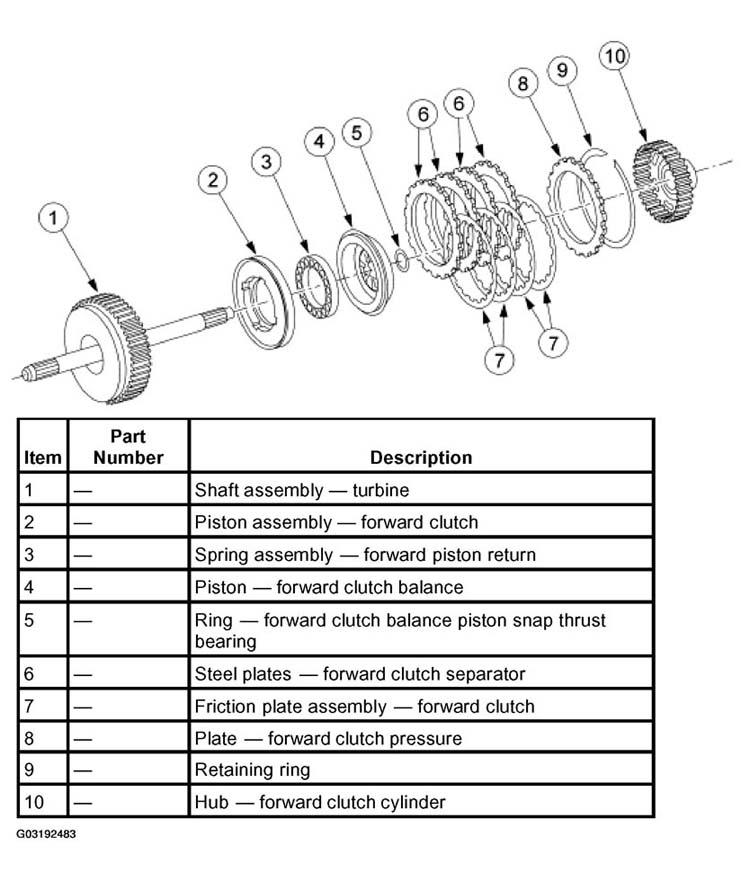

Fig 1: Exploded View Of Forward Clutch Components
G03192483Courtesy of FORD MOTOR CO.
