Transmission Range (TR) Sensor: Removal

  1. Disconnect the transmission range (TR) sensor electrical connector and the selector lever cable.

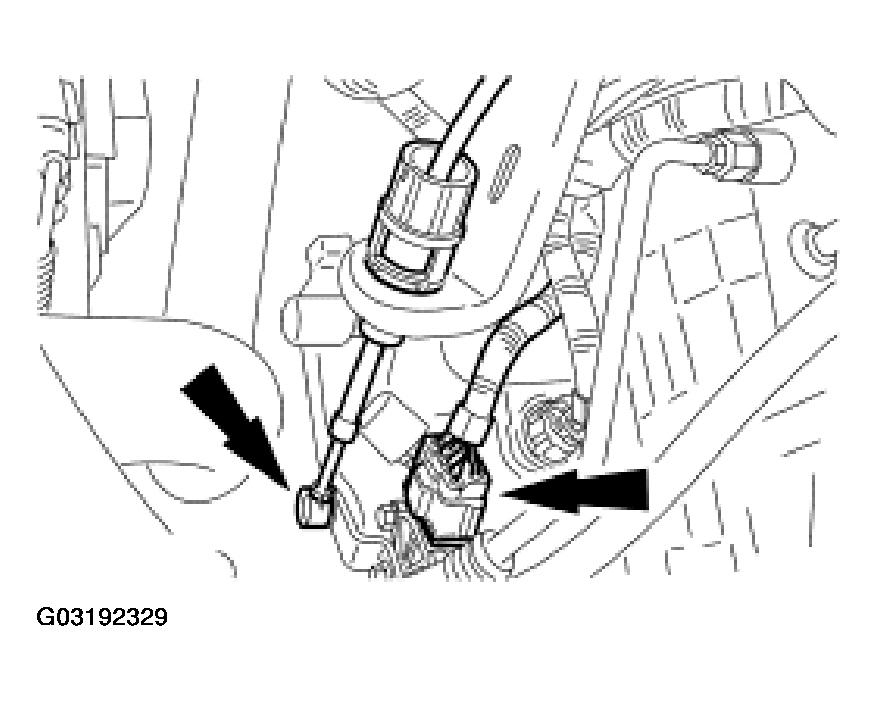

    Fig 1: Disconnecting Transmission Range (TR) Sensor Electrical Connector And Selector Lever Cable
    G03192329Courtesy of FORD MOTOR CO.
    2. NOTE: Failure to hold the shift lever while loosening or tightening the manual shaft lever will transmit rotational torque to the TR switch and shift mechanism.

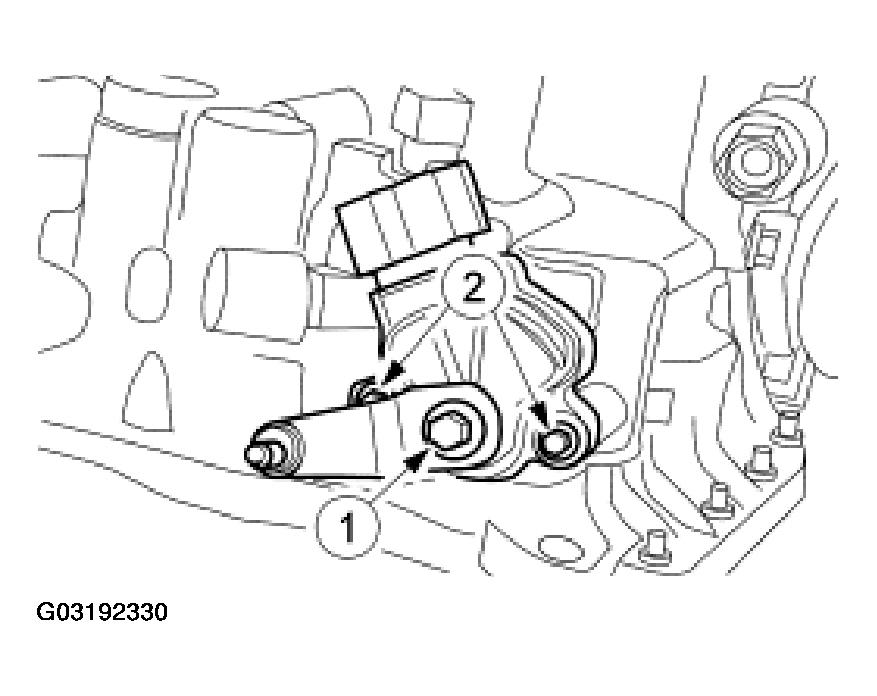

    Fig 2: Removing TR Sensor
    G03192330Courtesy of FORD MOTOR CO.
  2. Remove the TR sensor (automatic transaxle shown removed for clarity).
    1. Remove the manual control lever.
    2. Remove the bolts.
