Direct Clutch: Material

MATERIAL SPECIFICATION

Item Specification
Automatic Transmission Fluid XT-5-QM MERCON® V

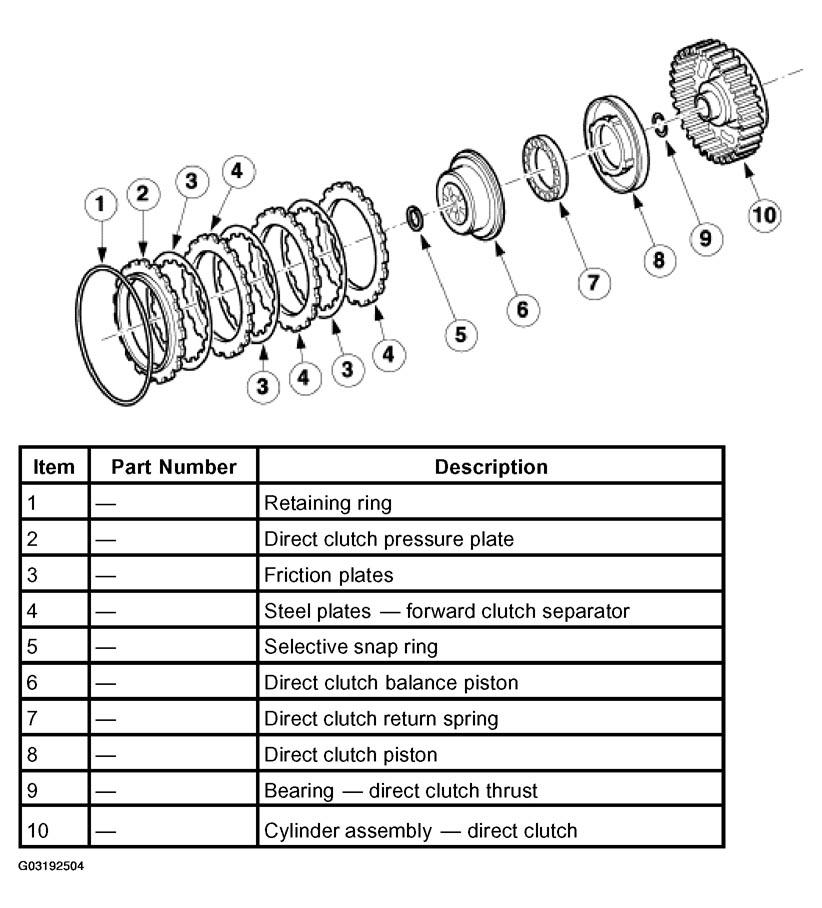

Fig 1: Identifying Direct Clutch Components
G03192504Courtesy of FORD MOTOR CO.
