Transfer Shaft: Assembly

  1. Using the special tool, install the right-hand side transfer shaft gear and park gear assembly.

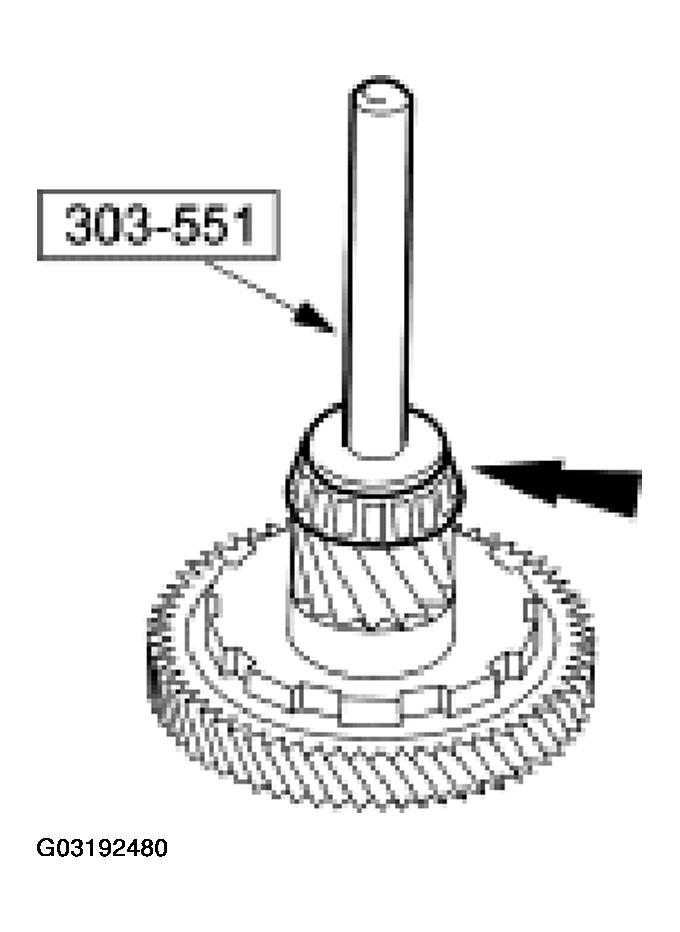

    Fig 1: Installing Right-Hand Side Transfer Shaft Gear And Park Gear Assembly
    G03192480Courtesy of FORD MOTOR CO.
  2. Using the special tool, assemble the gears and install the left-hand side transfer shaft gear bearing.

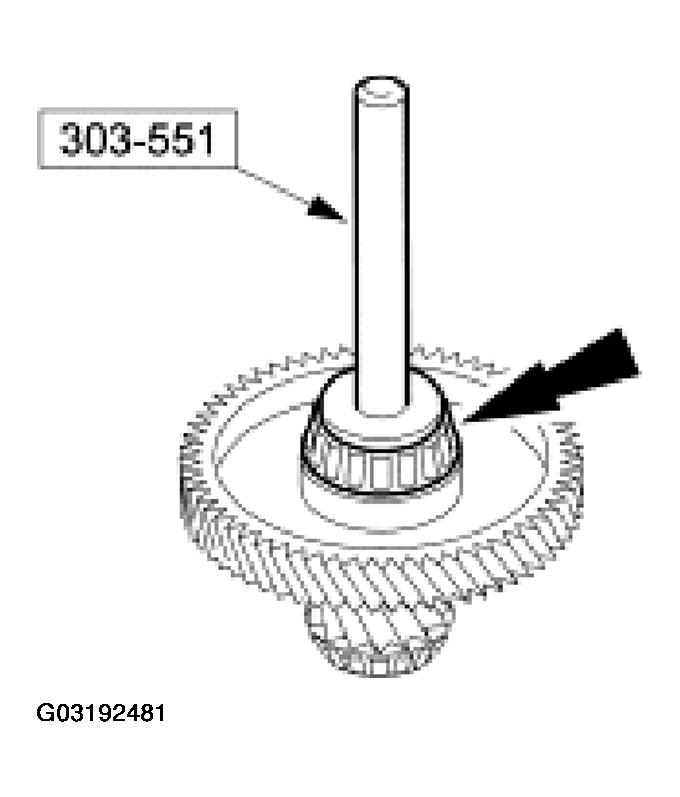

    Fig 2: Installing Left-Hand Side Transfer Shaft Gear Bearing
    G03192481Courtesy of FORD MOTOR CO.
