Item 12: Backrest Trim Cover Disassembly Note

WARNING: Front seat back trim covers installed on seats equipped with side air bags cannot be repaired, they are to be replaced (cleaning is permissible).

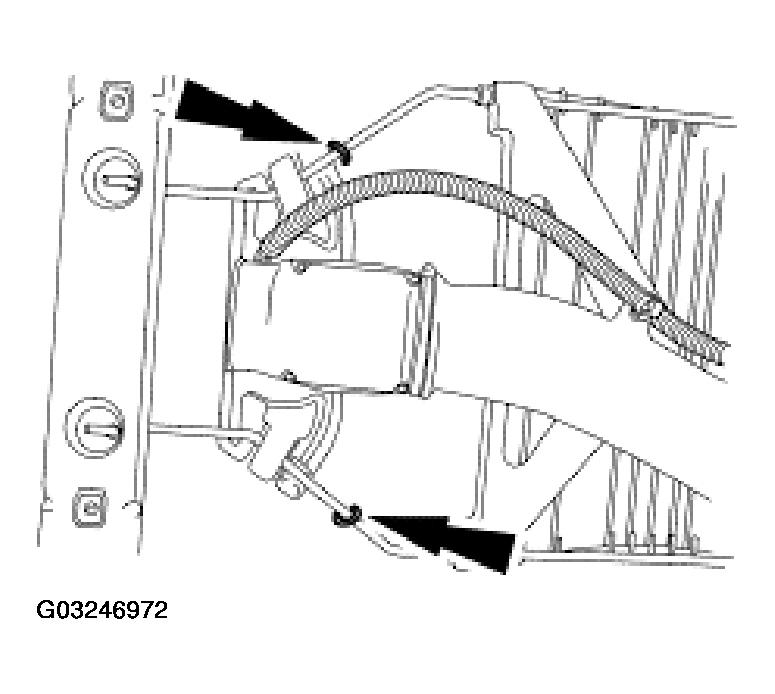

Fig 1: Removing Hog Rings
Courtesy of FORD MOTOR CO.
1. Remove and discard the hog rings. Remove backrest trim cover from the foam pad.
CAUTION: Use care when separating the seat back trim cover from the hook and loop strip, or the hook and loop strip could be torn from the seat back foam.

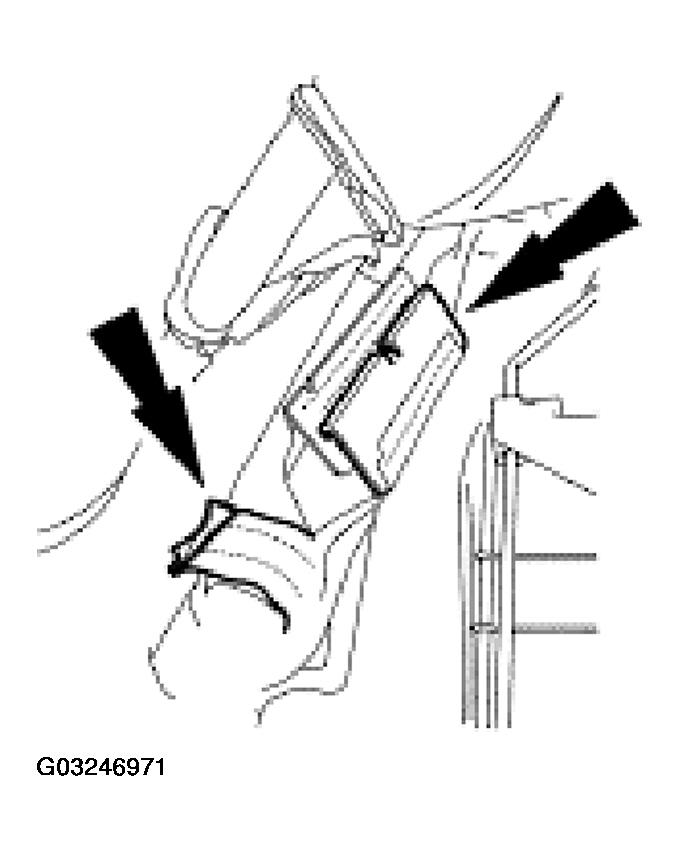

Fig 2: Inverting Backrest Trim Cover In An Inside-Out Fashion To Row Of Hog Rings
Courtesy of FORD MOTOR CO.
2. Invert the backrest trim cover in an inside-out fashion to the row of hog rings.
   • Placing a hand between the seat backrest trim cover and pad, carefully separate the hook and loop strips.
3. Release the side air bag module deployment chute clip.

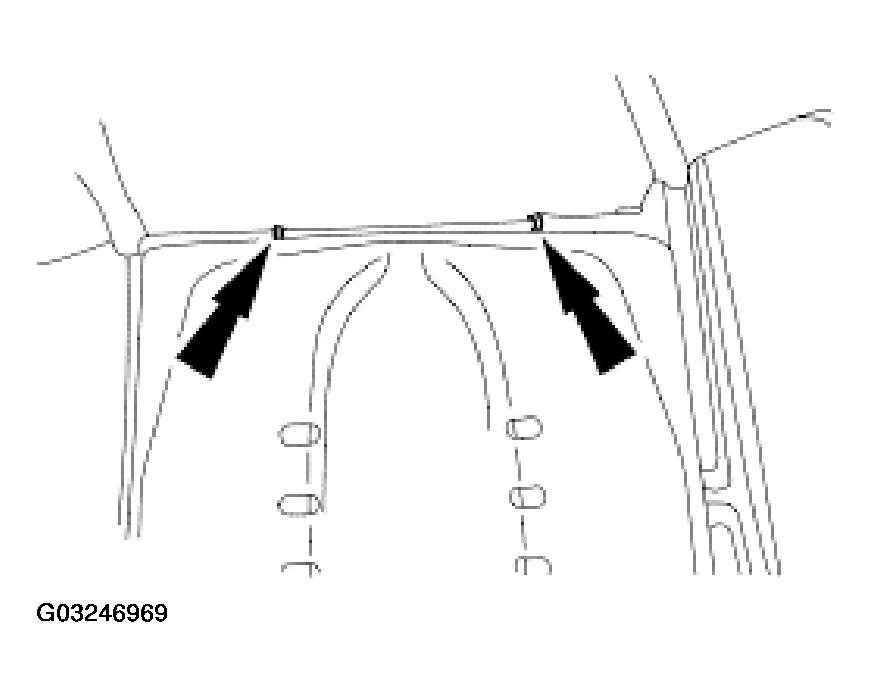

   Fig 3: Releasing Side Air Bag Module Deployment Chute Clip

   Courtesy of FORD MOTOR CO.
4. Remove the two hog rings from lumbar-to-foam pad and remove the backrest foam pad.

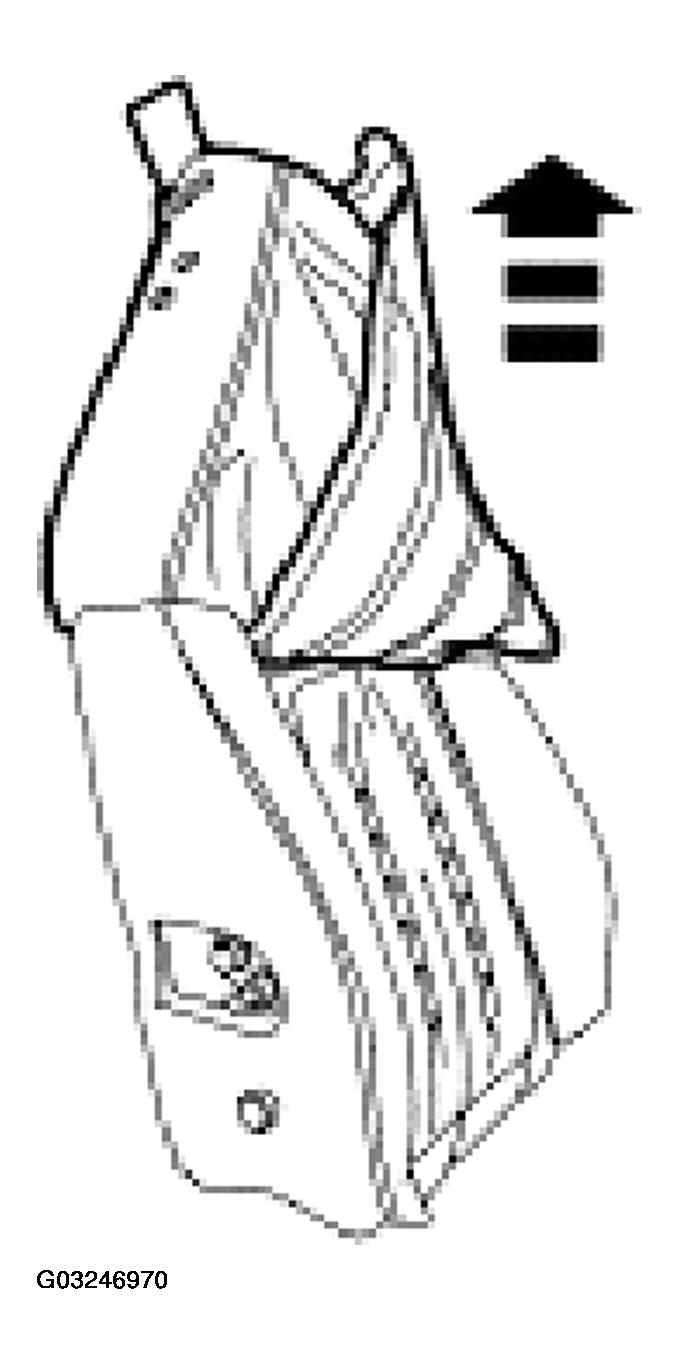

Fig 4: Removing Hog Rings From Lumbar-To-Foam Pad And Backrest Foam Pad

Courtesy of FORD MOTOR CO.
