Striker Adjustment

  1. Loosen the door latch striker bolts.

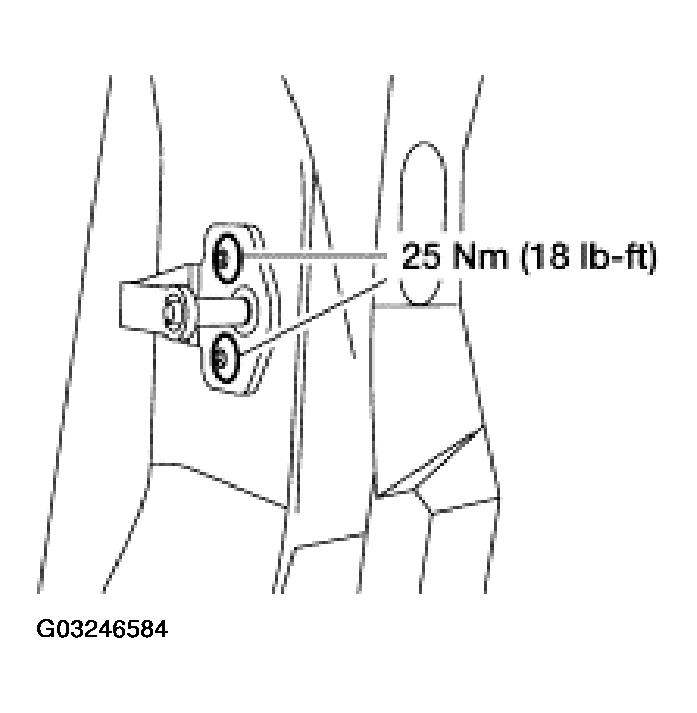

    Fig 1: Loosening Door Latch Striker Bolts
    G03246584Courtesy of FORD MOTOR CO.
  2. Adjust the door latch striker plate from side-to-side or up-and-down as necessary.

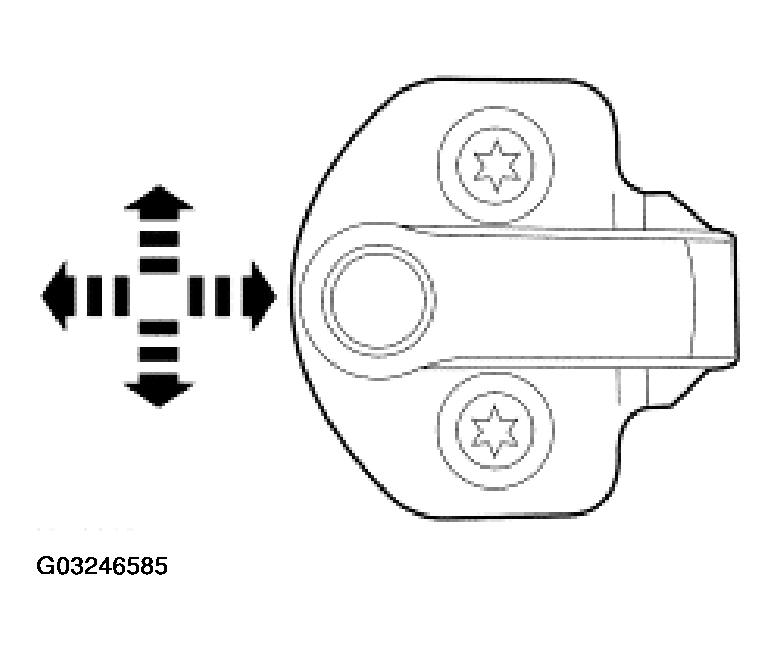

    Fig 2: Adjusting Door Latch Striker Plate
    G03246585Courtesy of FORD MOTOR CO.
  3. Tighten the door latch striker plate bolts.

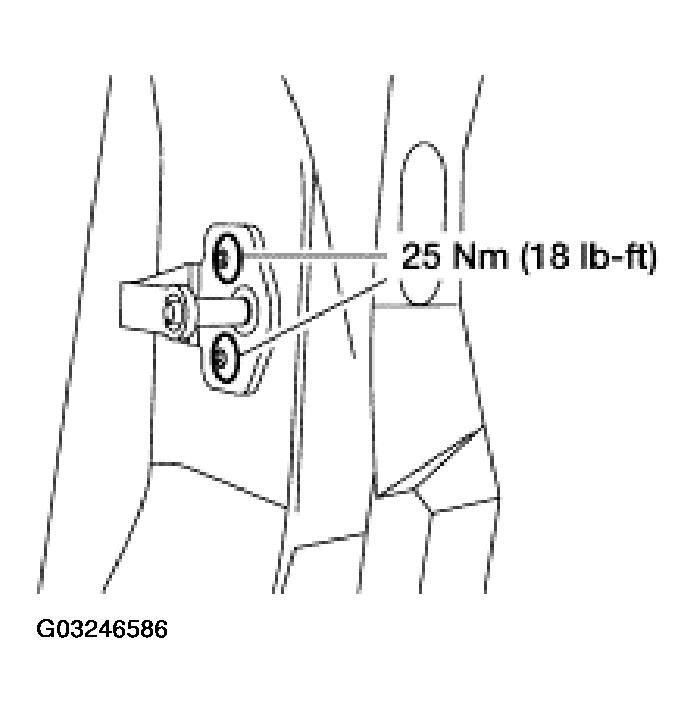

    Fig 3: Tightening Door Latch Striker Plate Bolts
    G03246586Courtesy of FORD MOTOR CO.
