Cowl Panel Grille: Notes

  1. Remove the parts in the order indicated in the following illustration and table.

    To remove individual parts, only carry out the listed steps:

    Part Steps
    LH pivot arm 1, 3
    RH pivot arm 1, 2
    Cowl vent screen assembly 1-5

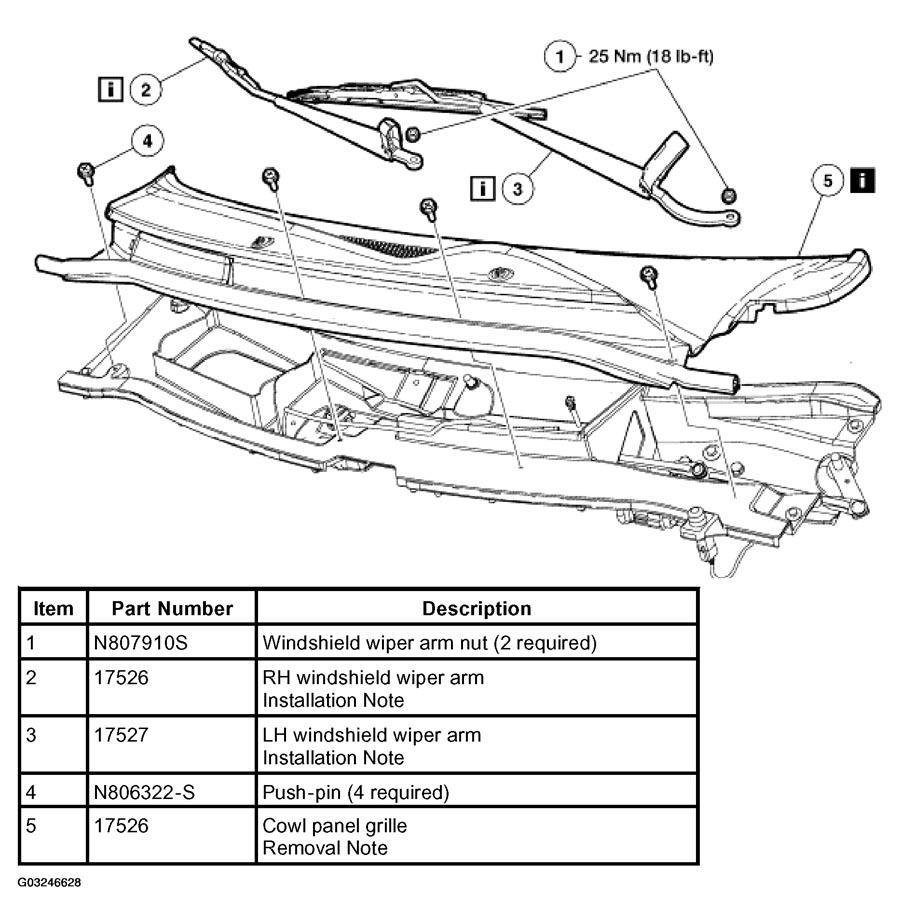

    Fig 1: Removing Cowl Panel Grille
    G03246628Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
