Rear Quarter Window Glass: Notes
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Foam Butyl Obtain Locally | WSB-M2G234-C |
- Remove the rear quarter and C-pillar trim panels. For additional information, Refer to INTERIOR TRIM PANELS .

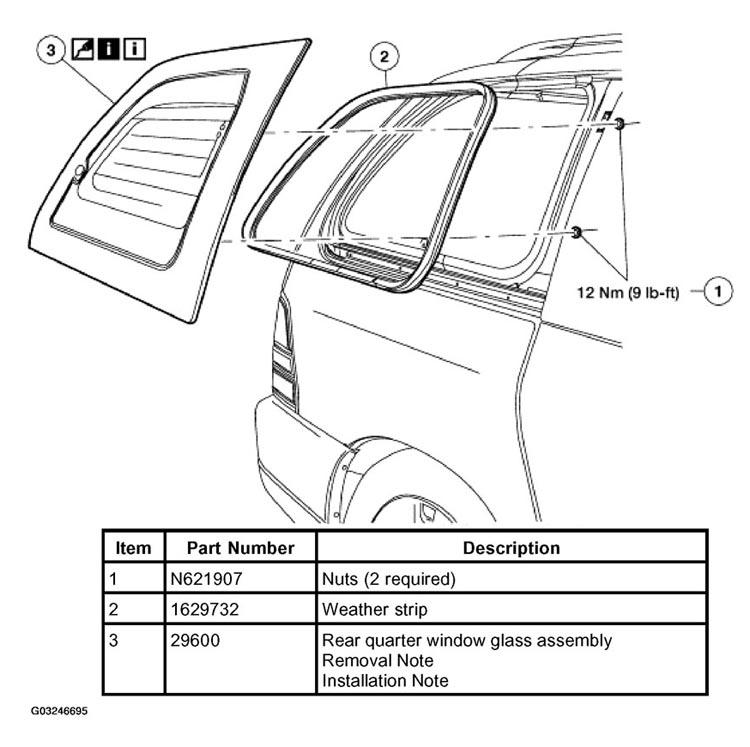

- Remove the parts in the order indicated in the following illustration.
- To install, reverse the removal procedure.
