Rear Window Wiper: Notes

Remove the liftgate trim panel. For additional information, Refer to LIFTGATE TRIM PANEL .

Remove the parts in the order indicated in the following illustration and table.

To remove individual parts, only carry out the listed steps:

Part	Steps
Rear wiper pivot arm	1, 2
Wiper assembly module	1-6

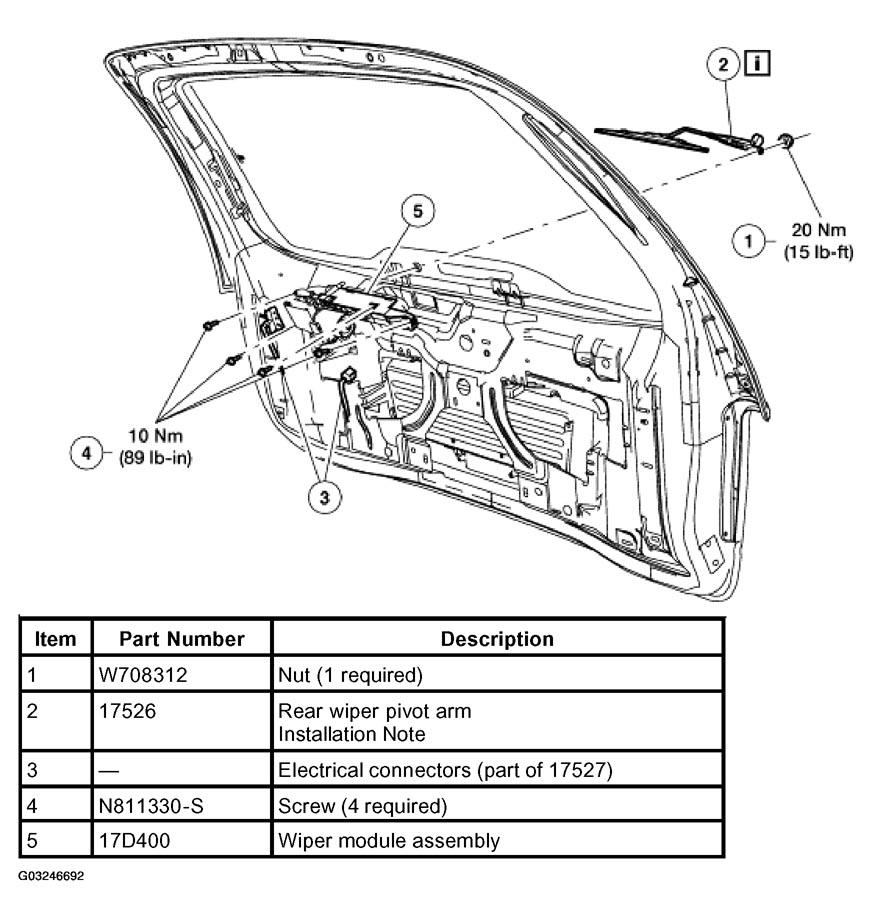

Fig 1: Removing Rear Window Wiper

Courtesy of FORD MOTOR CO.
