Restraint Control Module (RCM) C310a

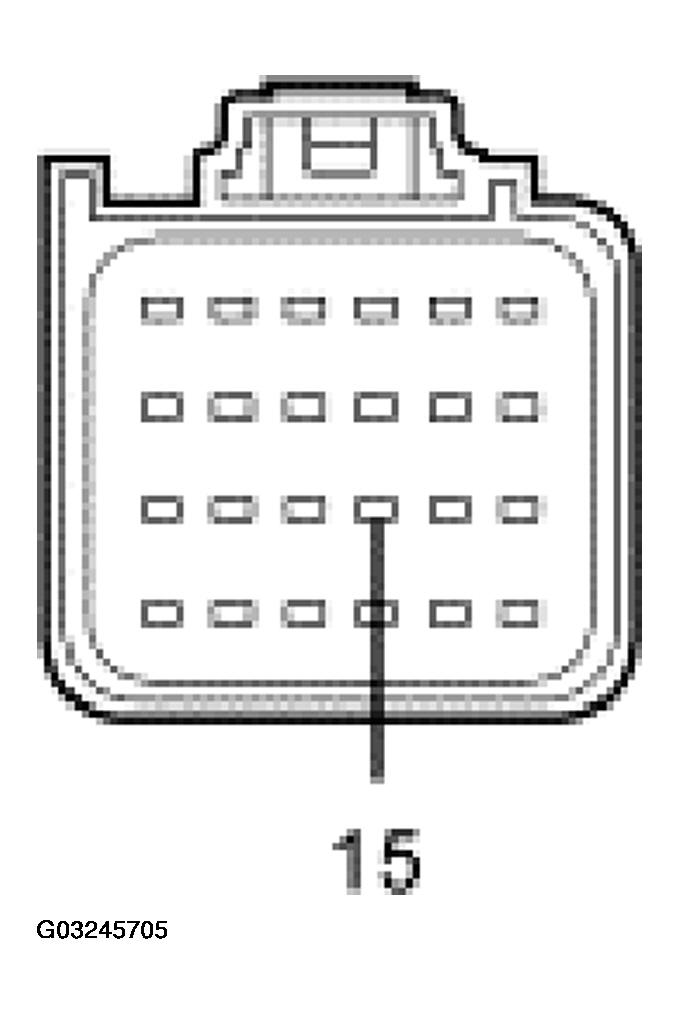

RESTRAINT CONTROL MODULE (RCM) C310A CONNECTOR CIRCUIT REFERENCE
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 15 | 608 (BK/YE) air bag warning indicator control circuit | 0 volts, less than 5 ohms resistance between the instrument cluster and the air bag module. Greater than 10,000 ohms resistance between the instrument cluster and chassis ground. |
