Instrument Cluster: Notes

CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.

Tilt the steering column to the lowest position.
Disable the supplemental restraint system (SRS). For additional information, refer to DISABLING SYSTEM .
Remove the instrument panel steering column reinforcement. For additional information, refer to BODY SYSTEM - INTERIOR .
Remove the parts in the order indicated in the following illustration and table.

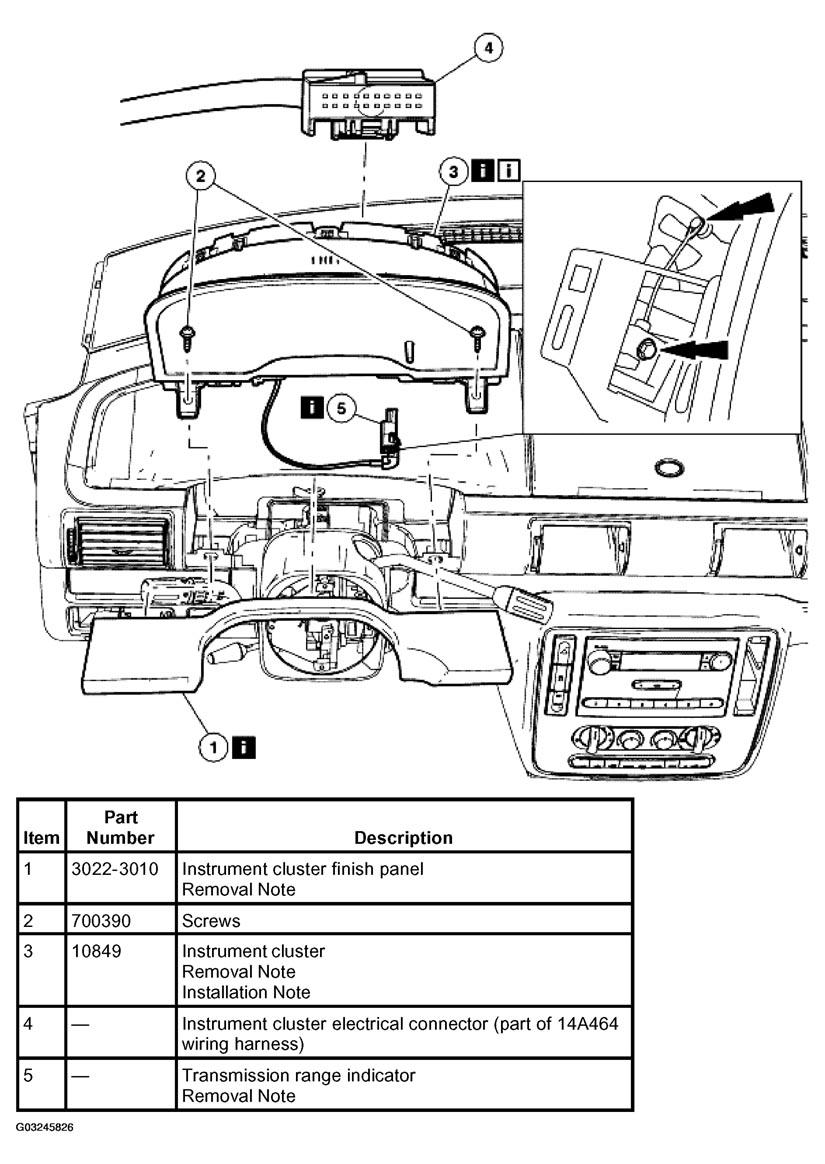

Fig 1: Instrument Cluster Components Removal Sequence
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
