Parking Aid Module

  1. Remove the RH quarter trim panel. For additional information, refer to INTERIOR TRIM PANELS .
    NOTE: Rear parking aid module shown, front and rear parking aid module similar.
  2. Remove the parts in the order indicated in the following illustration and table.

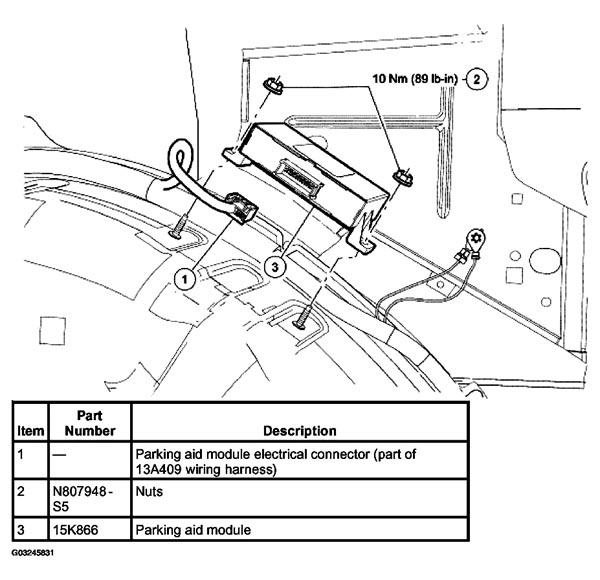

    Fig 1: Parking Aid Module Components Removal Sequence
    G03245831Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
