Cylinder Head

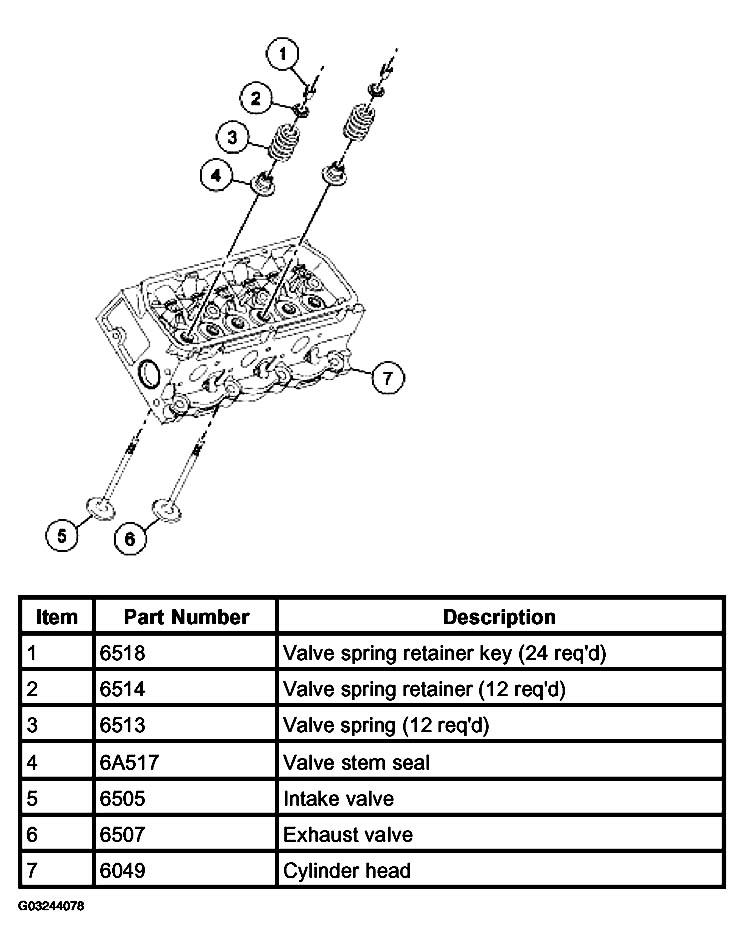

Fig 1: Removing Valve Mechanism From Cylinder Head
G03244078Courtesy of FORD MOTOR CO.
CAUTION: If the components are to be reinstalled, they must be installed in the same position. Mark the components removed for location.
  1. Remove the spark plugs.

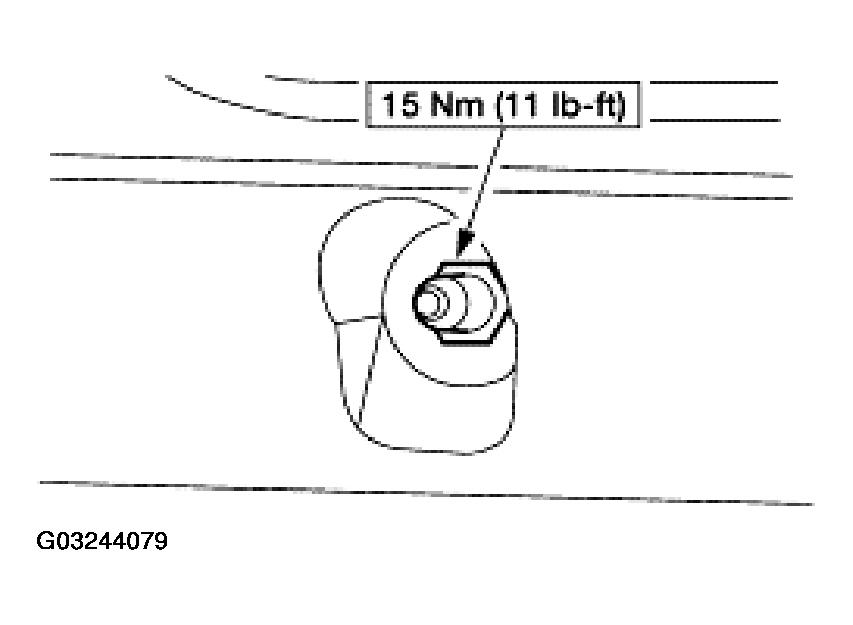

    Fig 2: Removing Spark Plugs
    G03244079Courtesy of FORD MOTOR CO.
  2. Using the special tool, compress the valve springs.

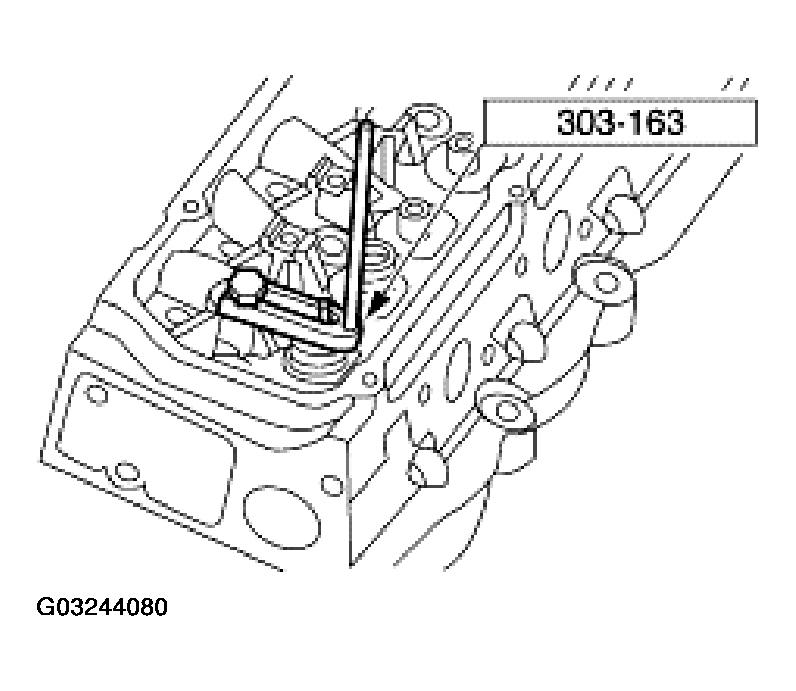

    Fig 3: Compressing Valve Springs
    G03244080Courtesy of FORD MOTOR CO.
  3. Remove the following:
    1. Valve spring retainer key
    2. Valve spring retainers
    3. Valve springs
    4. Valve stem seal/seats
    5. Intake valves
    6. Exhaust valves

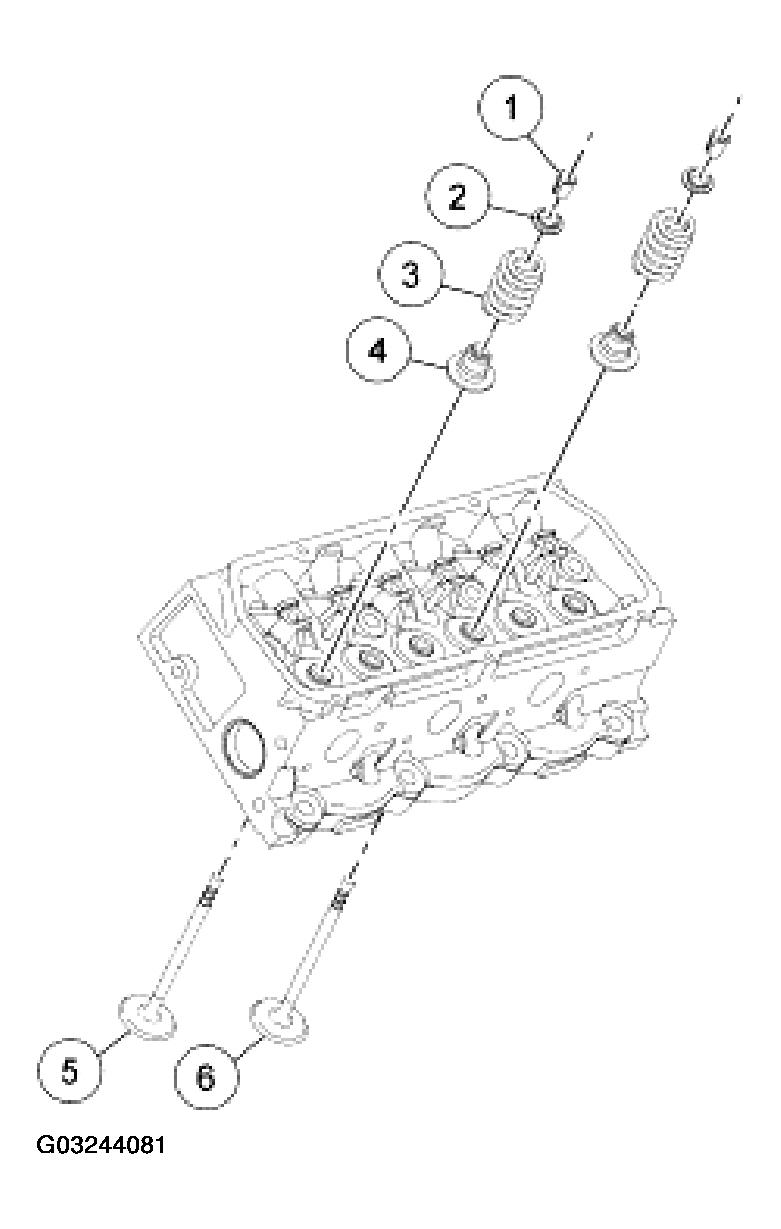

    Fig 4: Removing Spring Retainer Key, Spring Retainer, Springs, Stem Seal And Valves
    G03244081Courtesy of FORD MOTOR CO.
  4. Inspect the components, if necessary. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION
    5. CAUTION: Lubricate the parts with clean engine oil before installing.
  5. To assemble, reverse the disassembly procedure.
