Item 11: LH Engine Mount Bolt Installation Note

  1. Slide the A/C compressor toward the engine and tighten the mounting bolts.

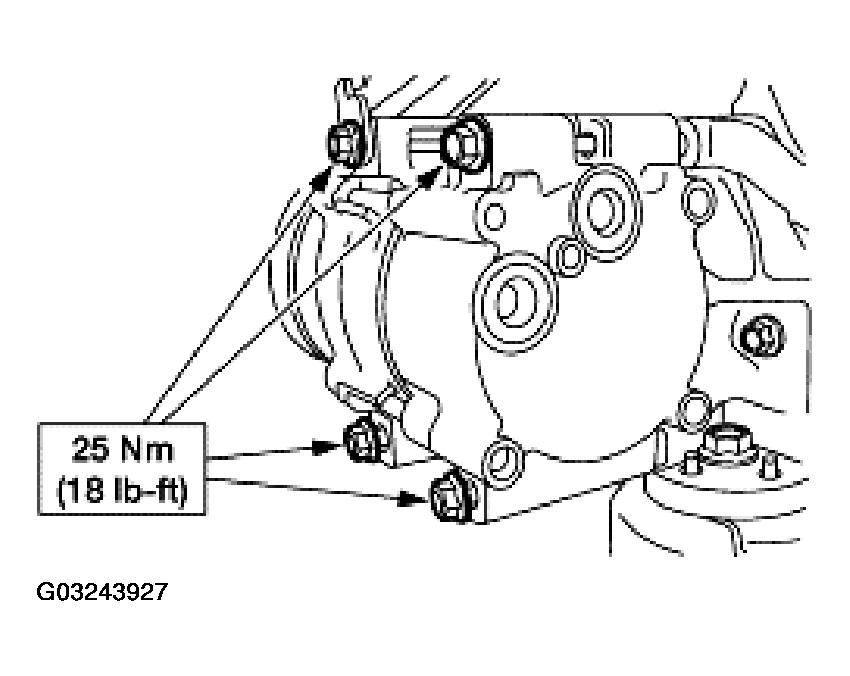

Fig 1: Tightening A/C Compressor Mounting Bolts
G03243927Courtesy of FORD MOTOR CO.
