Item 11: LH Engine Mount Bolt Removal Note

NOTE: The A/C compressor must be repositioned to access the LH engine mount bolt.
1. Loosen the A/C compressor mounting bolts 25.4 mm (1 in), then slide the A/C compressor toward the front of the vehicle.

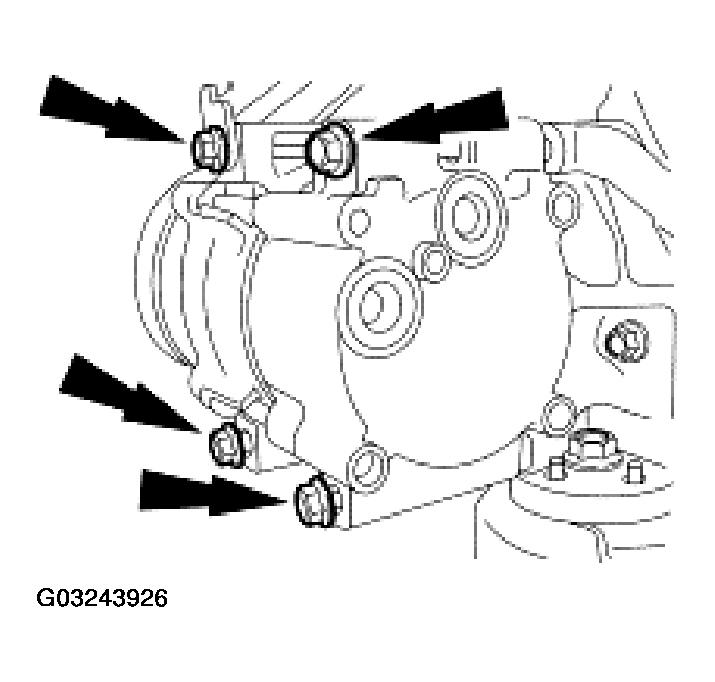

Fig 1: Loosening A/C Compressor Mounting Bolts

Courtesy of FORD MOTOR CO.
