Items 7 and 6: Lower Intake Manifold Bolt Installation Note

NOTE: Make sure the bolts are installed in the correct locations.

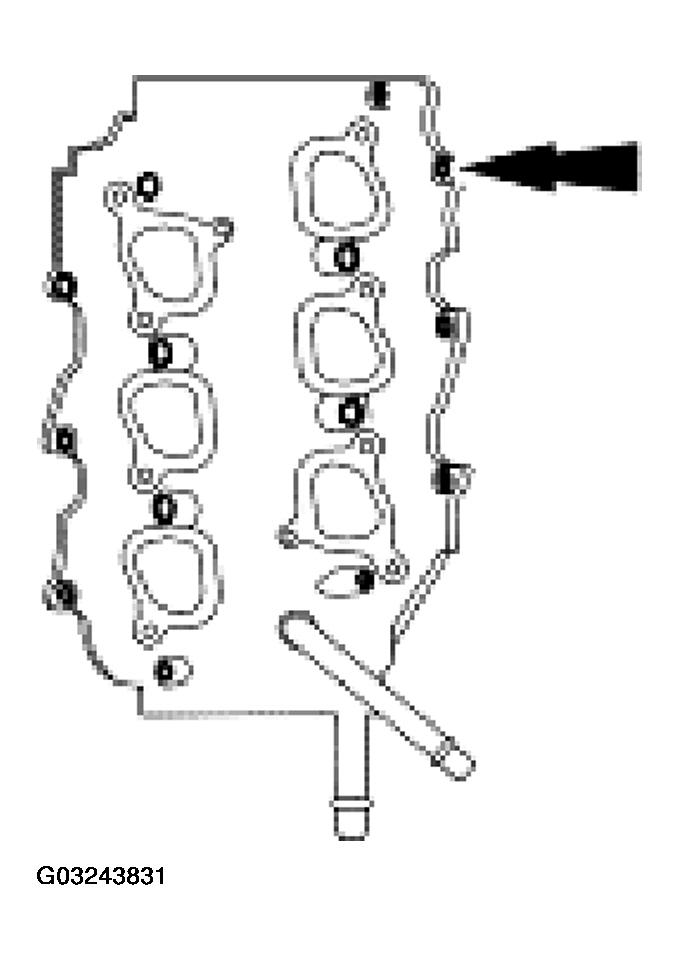

Fig 1: Installing Six Long Bolts

Courtesy of FORD MOTOR CO.

Install the six long bolts.
Install the eight short bolts.

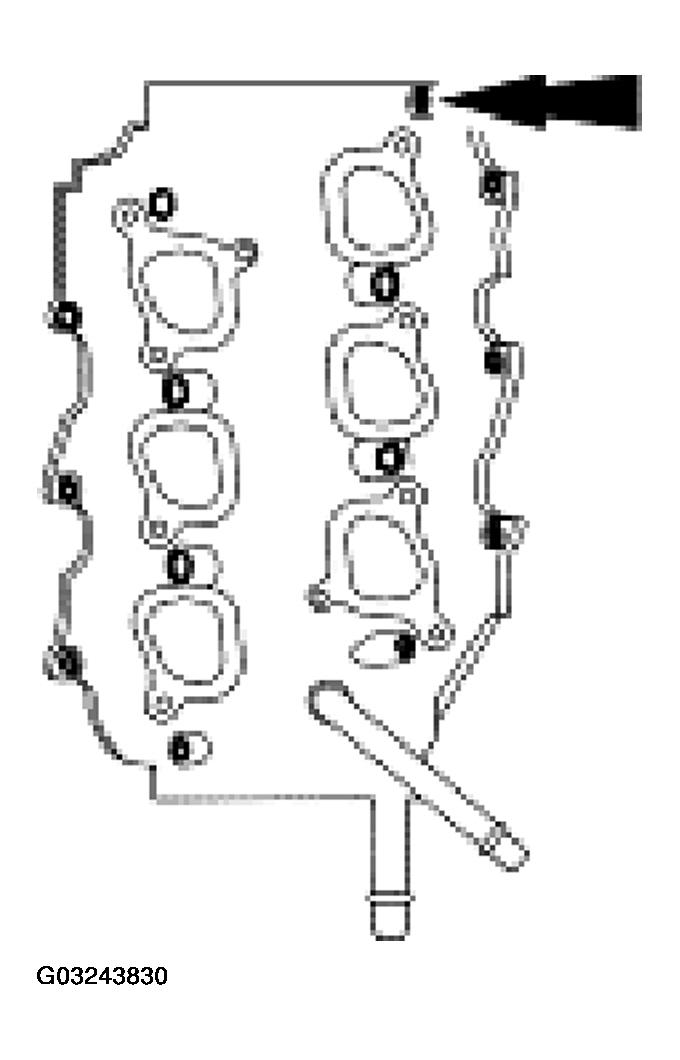

Fig 2: Installing Eight Short Bolts
Courtesy of FORD MOTOR CO.
Tighten the lower intake manifold bolts in two stages in the sequence shown.
- Stage 1: Tighten to 5 Nm (44 lb-in).
- Stage 2: Tighten to 10 Nm (89 lb-in).

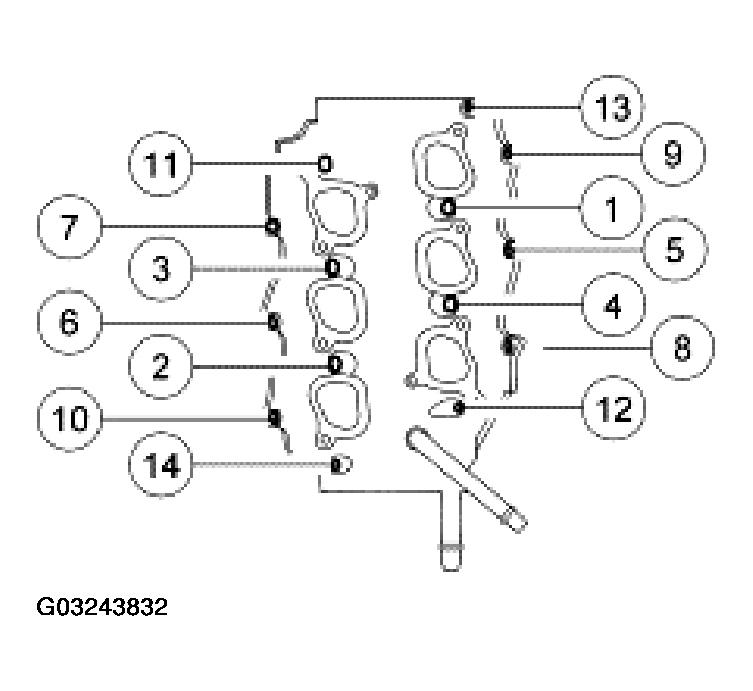

Fig 3: Lower Intake Manifold Bolts Tightening Sequence
Courtesy of FORD MOTOR CO.
