Mode 6 - 2004 Ford - Except Diesel
›
Ho2S Heater Monitor
Ho2S Heater Monitor

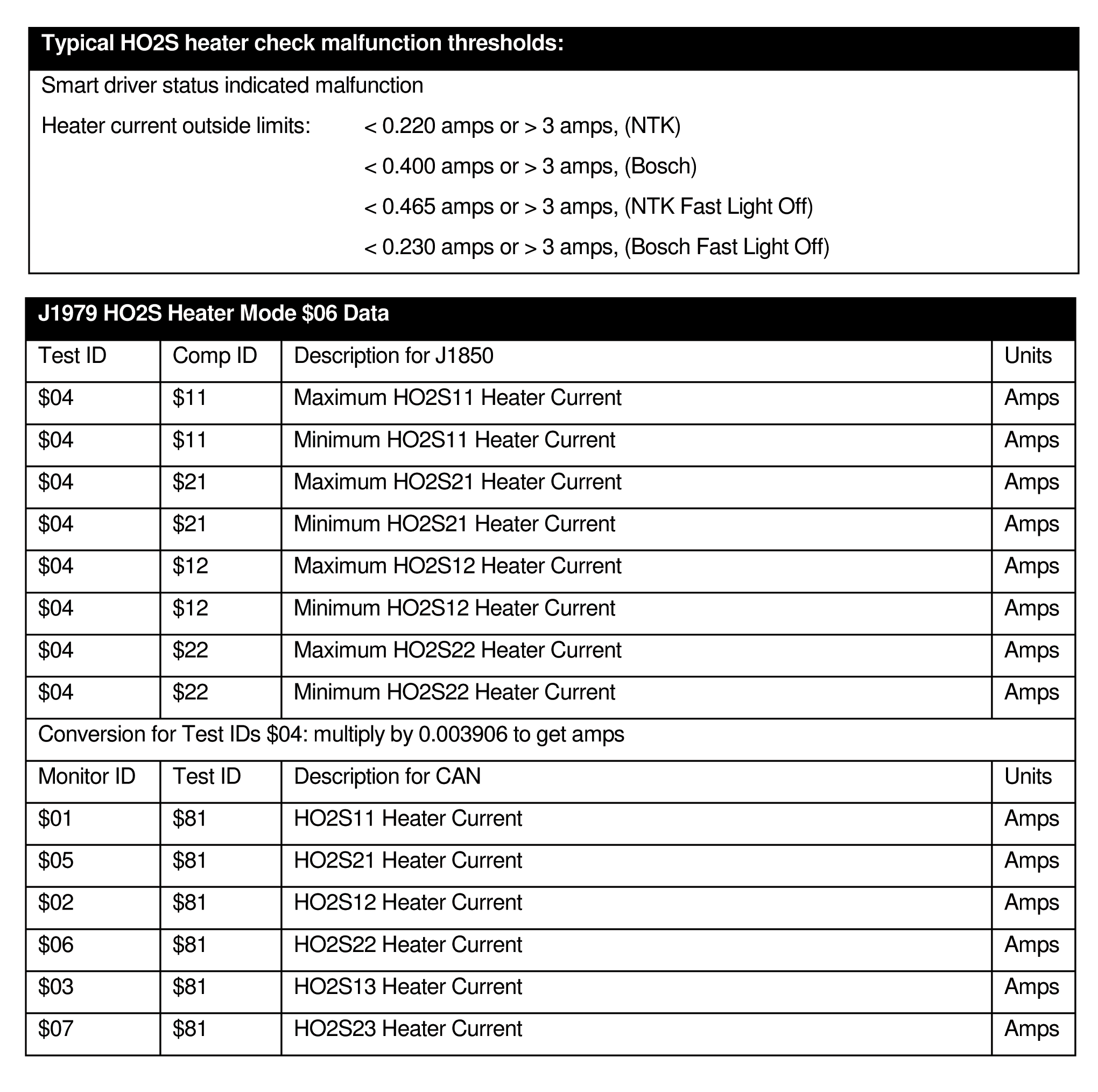

Fig 1: Mode $06 Data For HO2S Heater Monitor
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
