Speed Control Cable: Notes

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

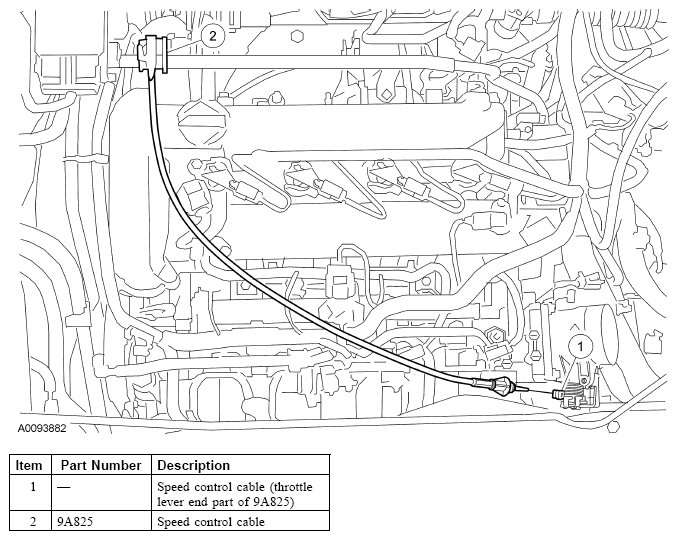

Fig 1: Identifying Speed Control Cable - 2.3L

Courtesy of FORD MOTOR CO.

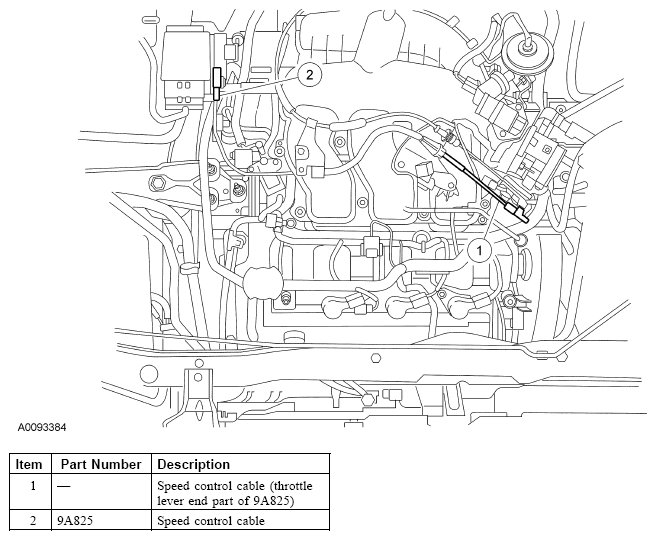

Fig 2: Identifying Speed Control Cable - 3.0L

Courtesy of FORD MOTOR CO.
