Input Shaft Seal
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Remover, Halfshaft Oil Seal | 308-428 | |
| Slide Hammer | 100-001 (T50T-100-A) |

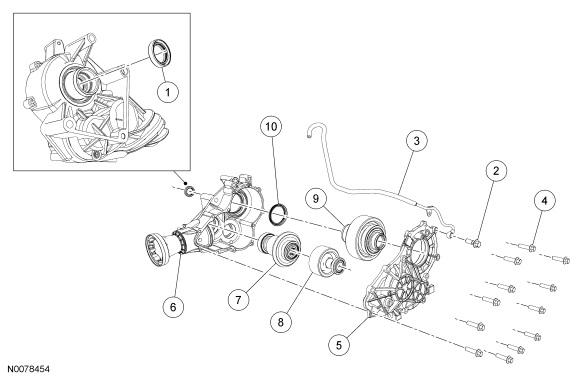

| Item | Part Number | Description |
|---|---|---|
| 1 | 7H429 | Intermediate shaft seal |
| 2 | W707702 | Vent tube bolt |
| 3 | 7034 | Vent tube |
| 4 | W500425 | Power transfer unit (PTU) cover bolt (12 required) |
| 5 | - | PTU cover (part of 7251) |
| 6 | 7251 | PTU |
| 7 | - | Helical driven gear (part of 7251) |
| 8 | - | Helical idler gear (part of 7251) |
| 9 | - | Helical drive gear (part of 7251) |
| 10 | 7H469 | Input shaft seal |
- Remove the power transfer unit (PTU). For additional information, refer to Power Transfer Unit (PTU) - Automatic Transaxle .
- Using the special tools, remove the intermediate shaft seal.
- Remove the bolt and the vent tube.
- Remove the 12 bolts and the PTU cover.
- Remove the helical driven gear, idler gear and drive gear.
- Using a suitable tool, remove the input shaft seal.
- Clean the PTU sealing surface.
