Item 12: Steering Column Position Spring Assembly Note

  1. Position the steering column locking levers on the steering actuator housing.
    1. Use a shop-fabricated tool.
    2. Install and compress the steering column position spring.

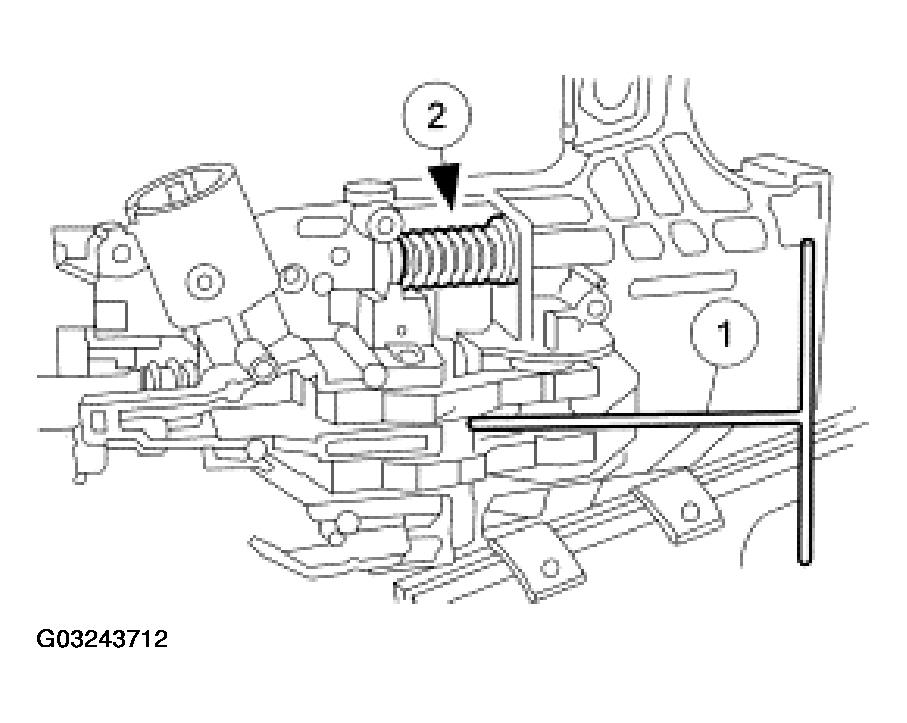

      Fig 1: Positioning Steering Column Locking Levers
      G03243712Courtesy of FORD MOTOR CO.
