Item 38: Ignition Switch Assembly Note

  1. Install the ignition switch. Align the ignition switch with the slot and index mark on the steering column.
    • Install the screws.

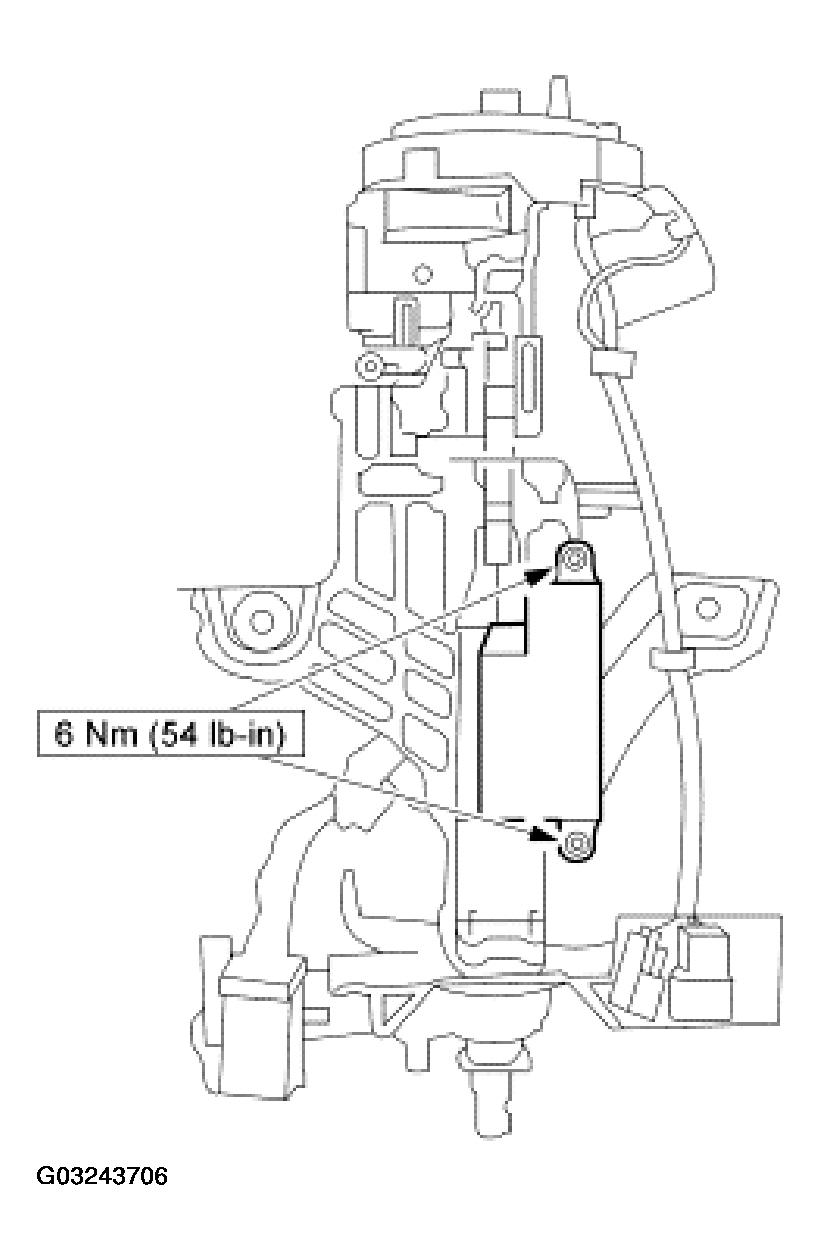

      Fig 1: Installing Ignition Switch Screws
      G03243706Courtesy of FORD MOTOR CO.
