Steering Column Switches
- Disconnect the battery. For additional information, refer to ELECTRICAL SYSTEM
.
- If removing the multifunction switch, remove the ignition lock cylinder. For additional information, refer to HANDLES, LOCKS, LATCHES AND ENTRY SYSTEMS
.
- If removing the ignition switch, remove the steering column opening trim cover and reinforcement.

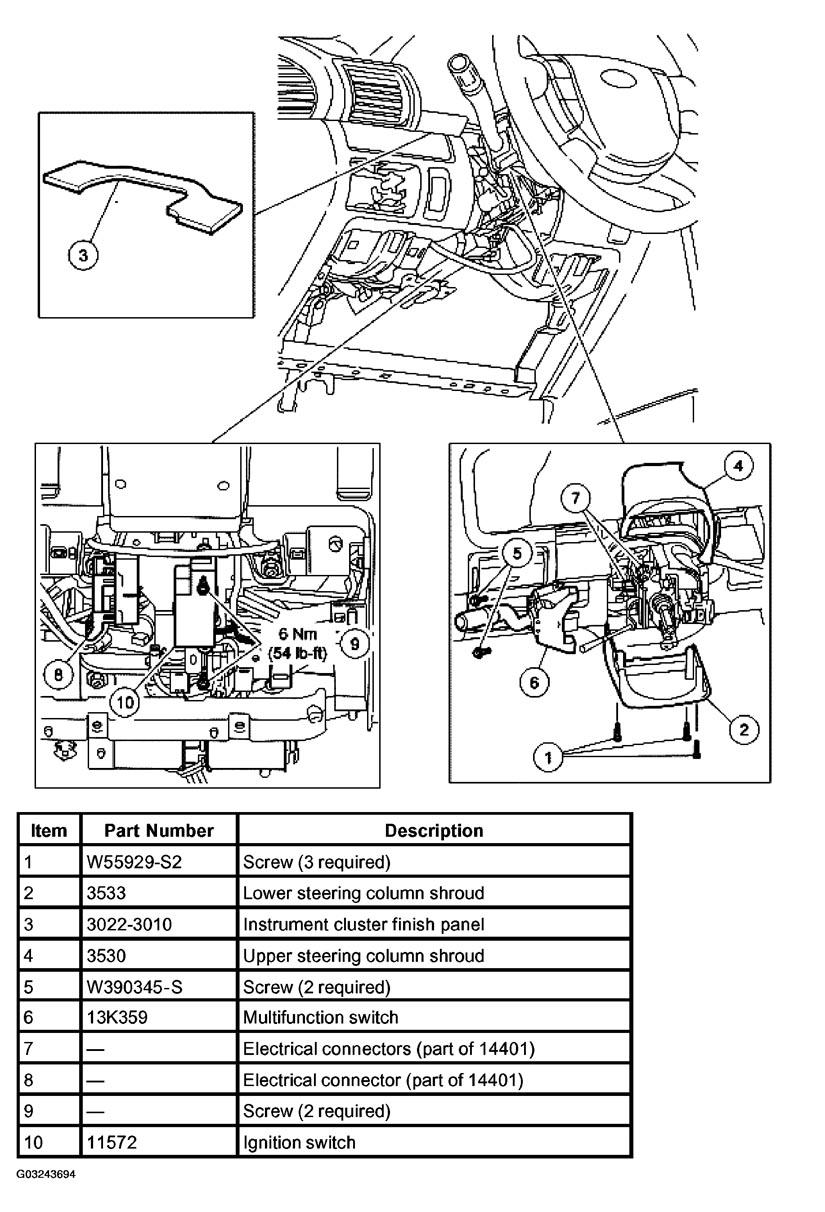

- Remove the parts in the order indicated in the following illustration and table.
PART REMOVAL SEQUENCE
| Part |
Steps |
| Multifunction switch |
1-7 |
| Ignition switch |
8-10 |
Courtesy of FORD MOTOR CO.
- To install, reverse the removal procedure.
