Wheel and Tire - Front: Notes

  1. Remove the parts in the order indicated in Fig 1.
  2. To install, reverse the removal procedure.

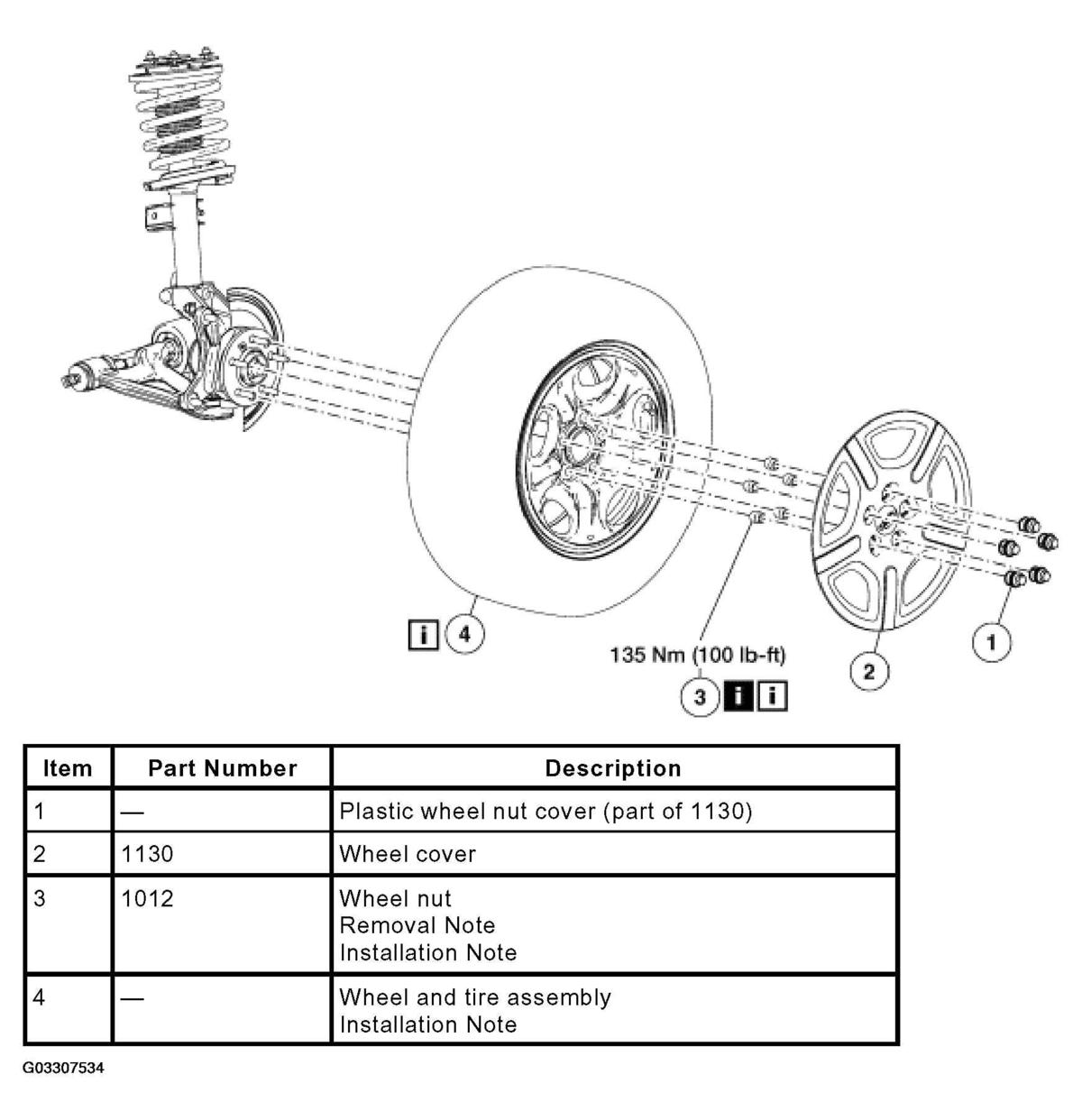

    Fig 1: Removing Wheel And Tire (Front)
    G03307534Courtesy of FORD MOTOR CO.
