Fluid Sump And Case Components

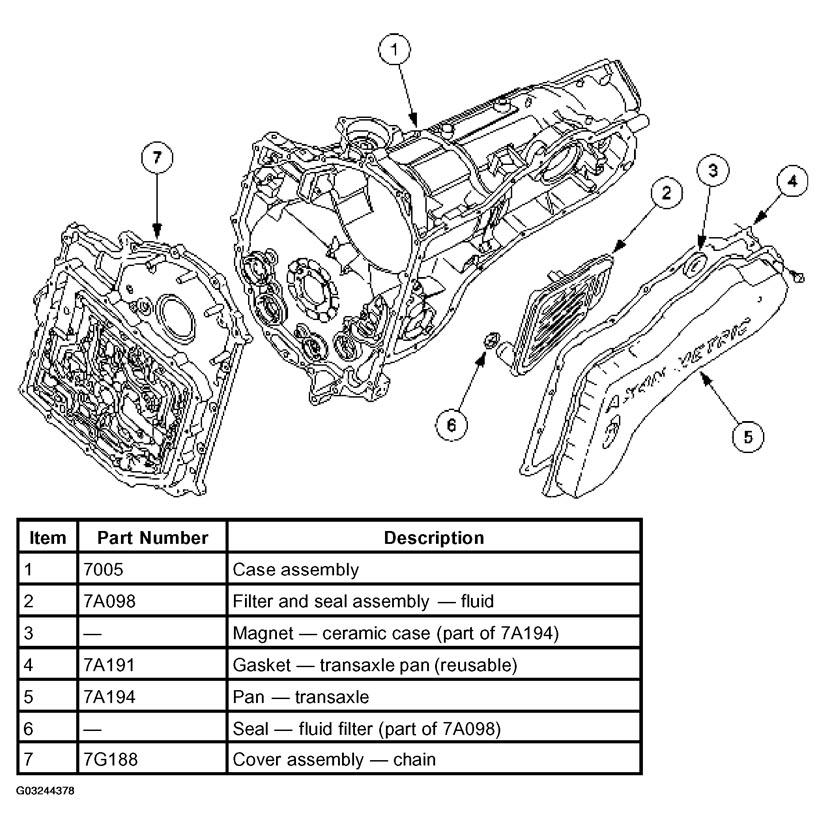

Fig 1: Identifying Fluid Sump And Case Components

Courtesy of FORD MOTOR CO.

The thermostatic fluid control valve stores fluid in the area of the main control when the fluid expands due to temperature. When the fluid is cold, the valve allows more fluid from the main control area to return to the sump.

The transmission fluid level check is correctly carried out when fluid temperature is hot.

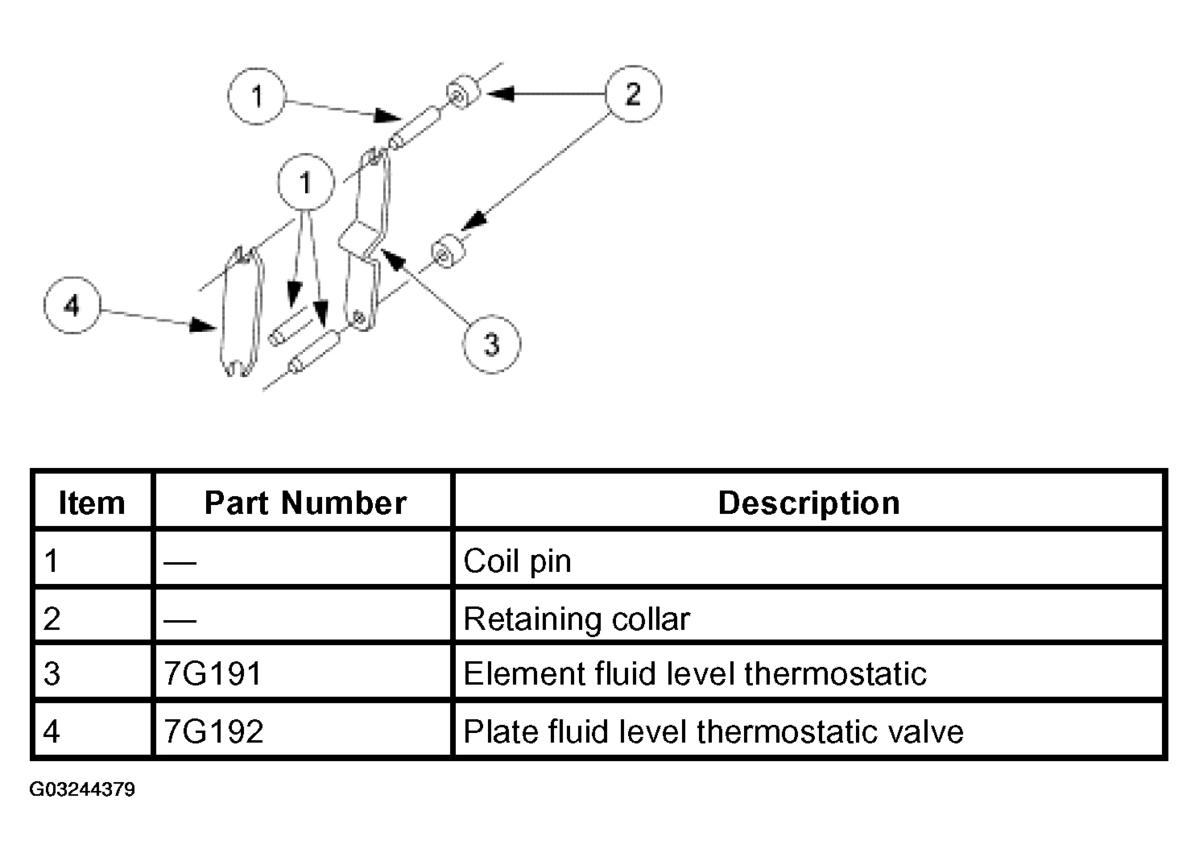

Fig 2: Identifying Thermostatic Fluid Control Valve Components

Courtesy of FORD MOTOR CO.
