Description And Operation
›
Main Components And Functions
Main Components And Functions

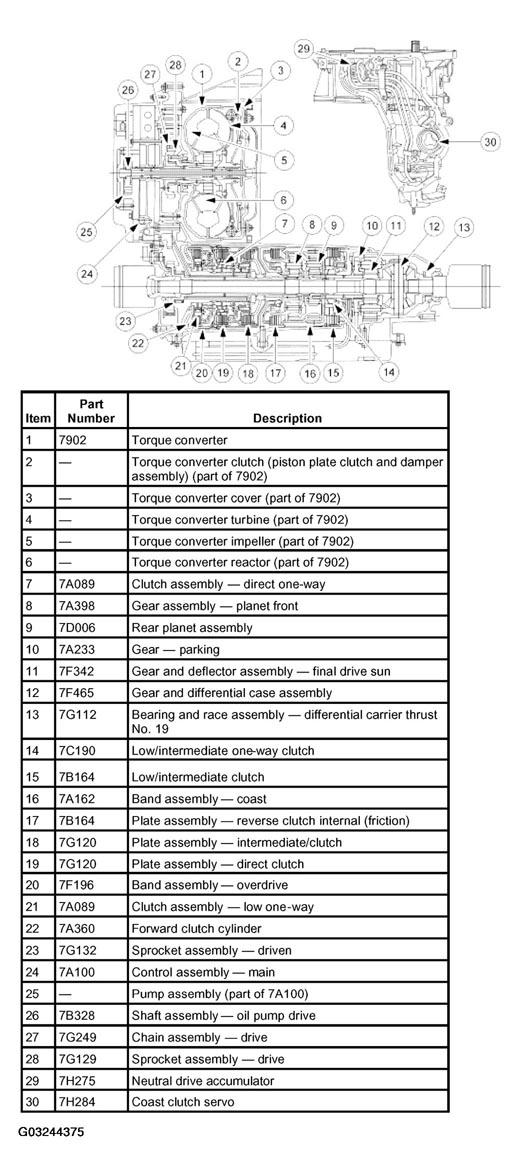

Fig 1: Identifying Automatic Transmission Main Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
