Drive Sprocket/Turbine Shaft: Assembly

Make sure that the seals are mated correctly.

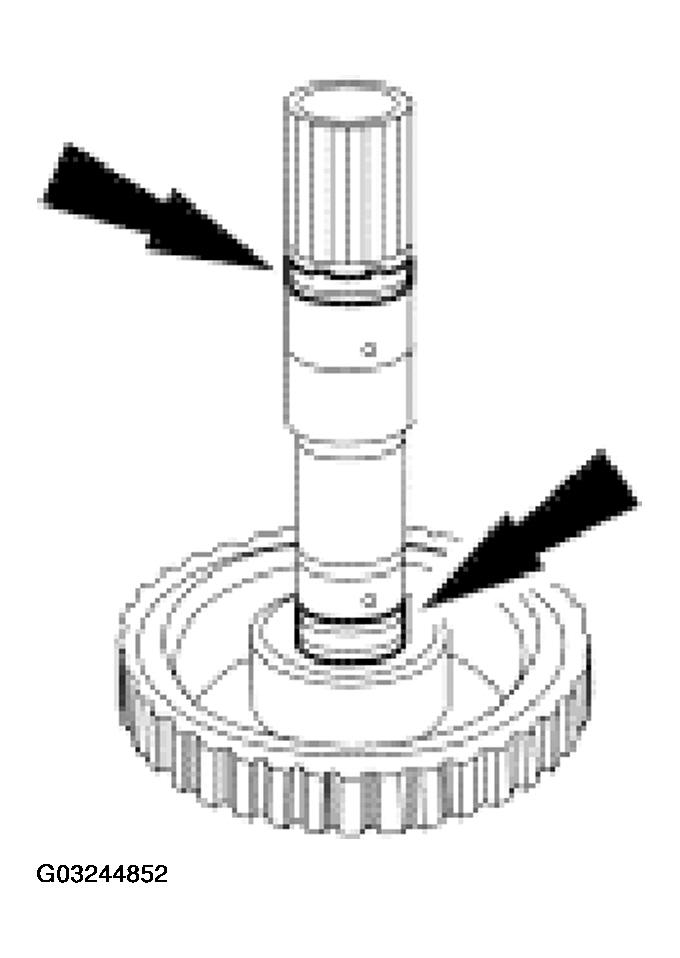

Fig 1: Ensuring Seals Are Mated Correctly
Courtesy of FORD MOTOR CO.
Install the drive sprocket/turbine shaft seal and O-ring.
- Install the drive sprocket/turbine shaft O-ring.
- Install the drive sprocket/turbine shaft seal.

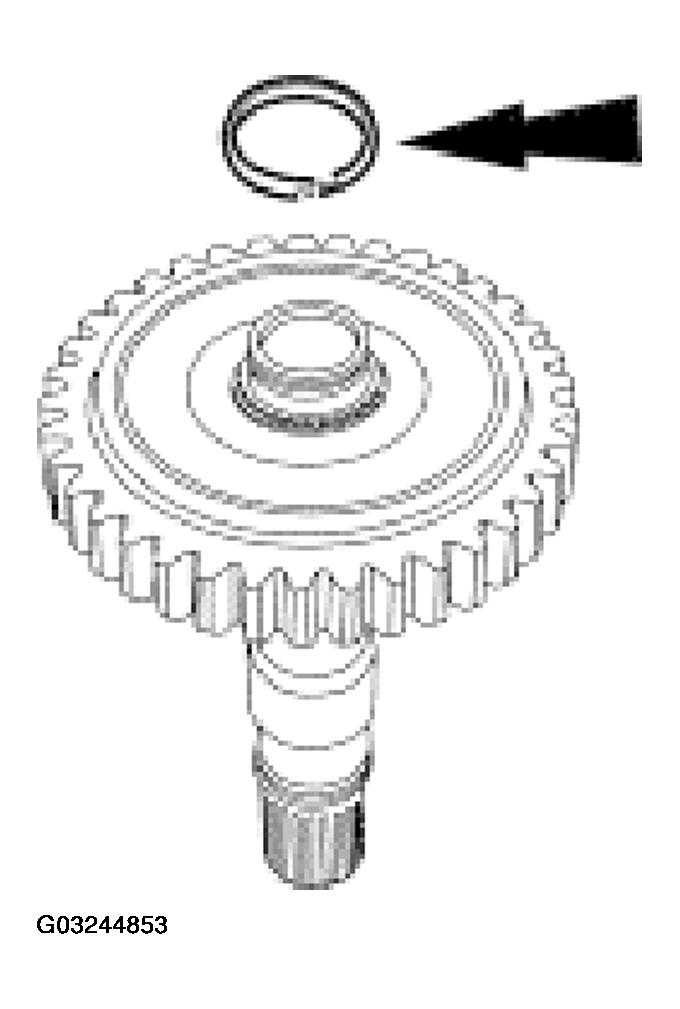

  Fig 2: Installing Drive Sprocket/Turbine Shaft Seal And O-Ring
  Courtesy of FORD MOTOR CO.
Install the turbine shaft front seal.

Fig 3: Installing Turbine Shaft Front Seal
Courtesy of FORD MOTOR CO.
Make sure that the seal is locked correctly.

Fig 4: Ensuring Seal Is Locked Correctly
Courtesy of FORD MOTOR CO.
