Forward Clutch Cylinder: Notes

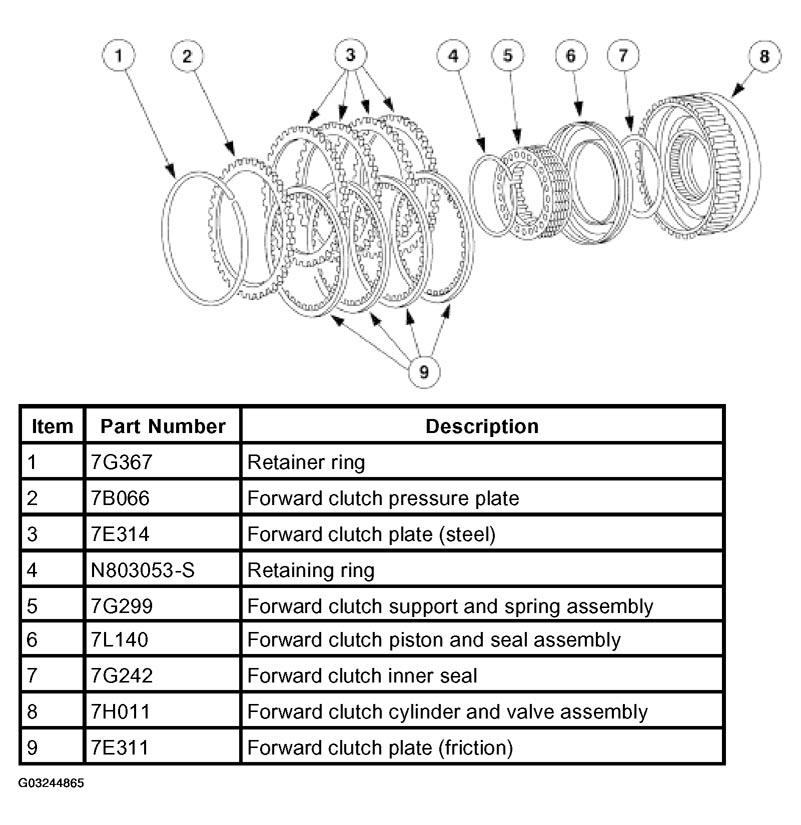

Fig 1: Identifying Forward Clutch Cylinder Components
G03244865Courtesy of FORD MOTOR CO.
