Main Control Pump Assembly

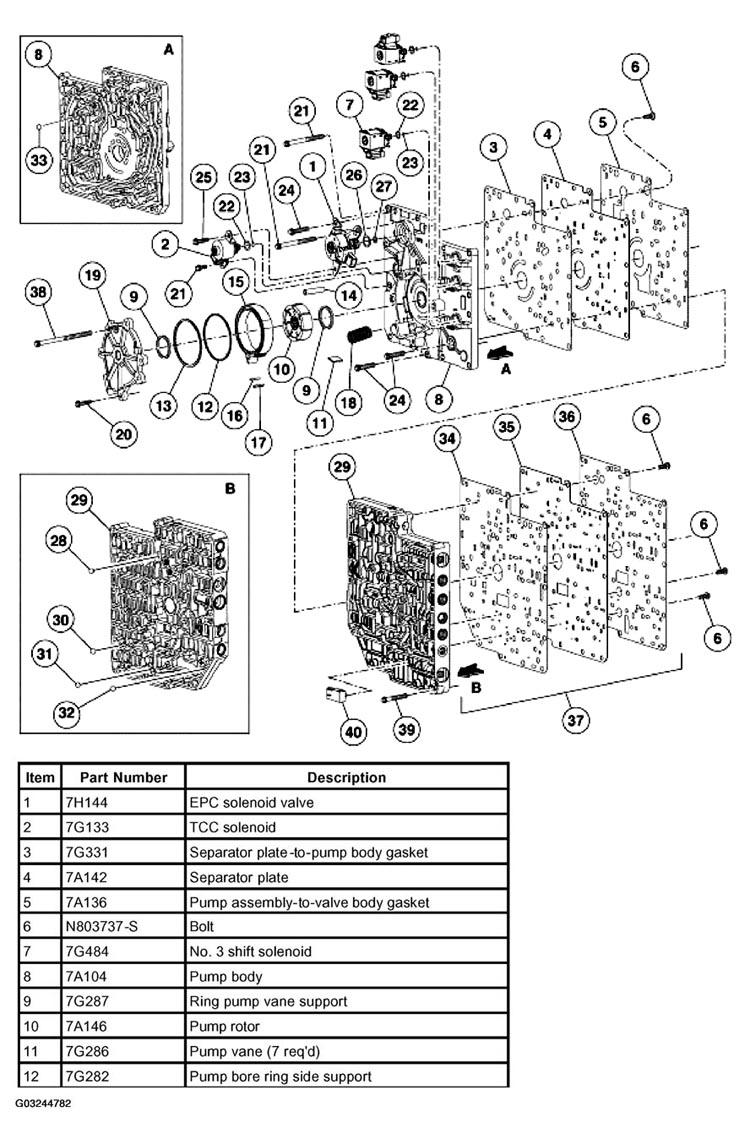

Fig 1: Main Control Pump Assembly Components (Items 1-12)
G03244782Courtesy of FORD MOTOR CO.

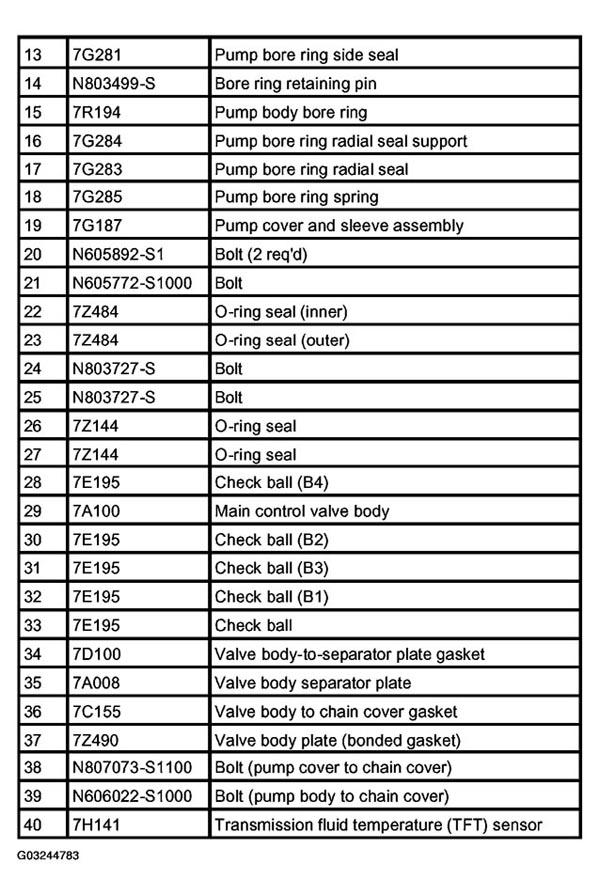

Fig 2: Main Control Pump Assembly Components (Items 13-40)
G03244783Courtesy of FORD MOTOR CO.
