Main Control Valve Body Assembly

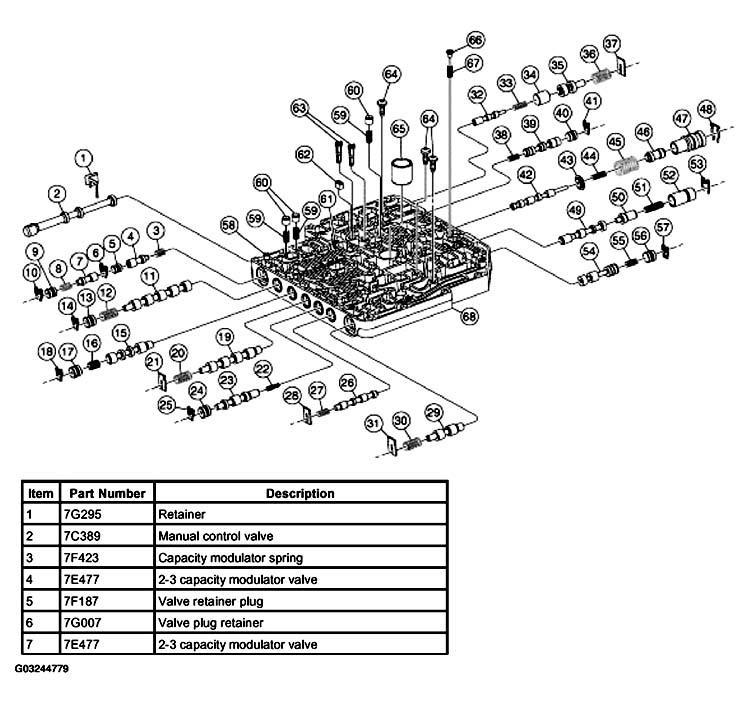

Fig 1: Main Control Valve Body Assembly Components (Items 1-7)

Courtesy of FORD MOTOR CO.

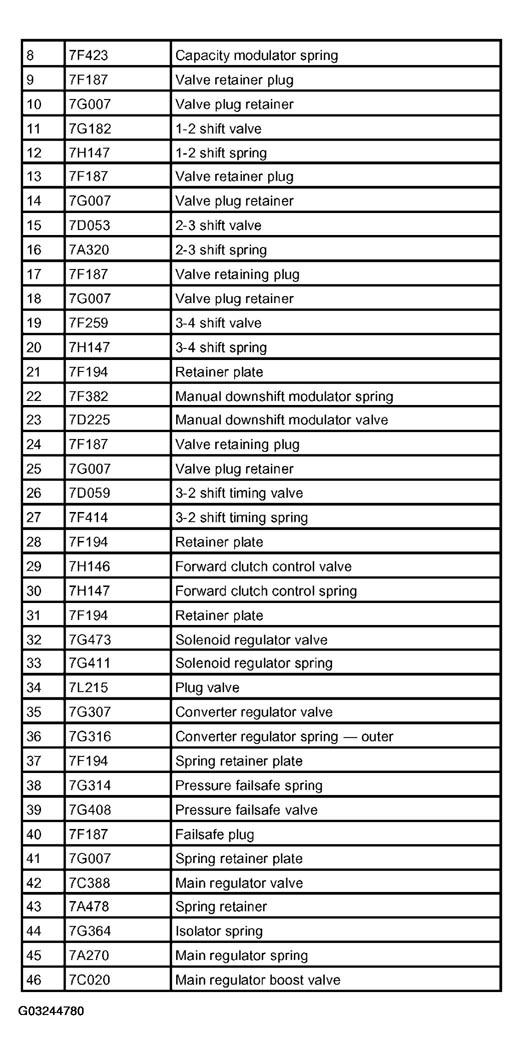

Fig 2: Main Control Valve Body Assembly Components (Items 8-46)

Courtesy of FORD MOTOR CO.

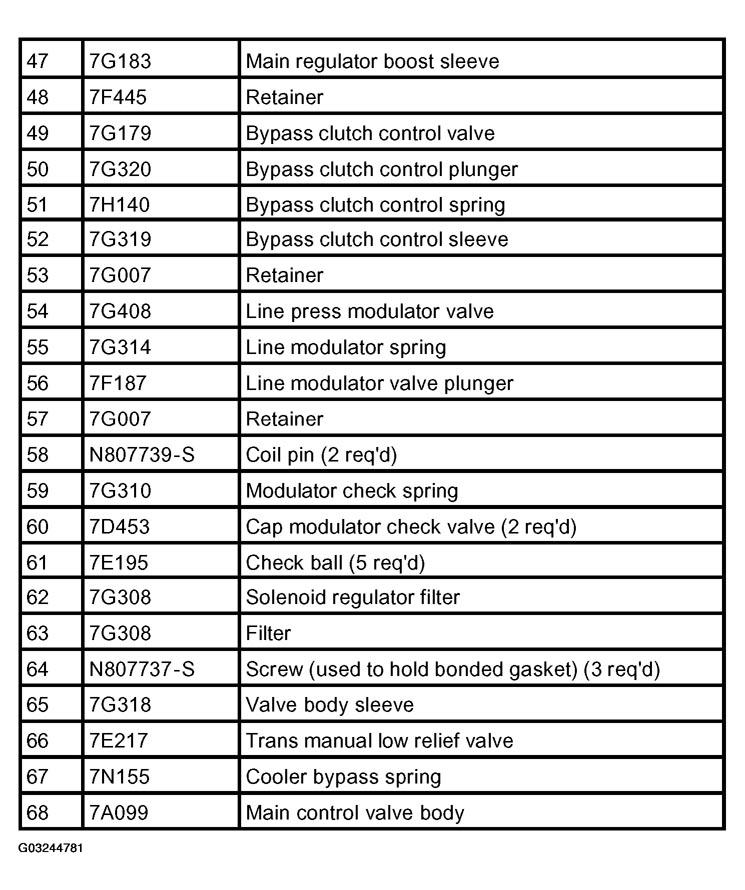

Fig 3: Main Control Valve Body Assembly Components (Items 47-68)

Courtesy of FORD MOTOR CO.
